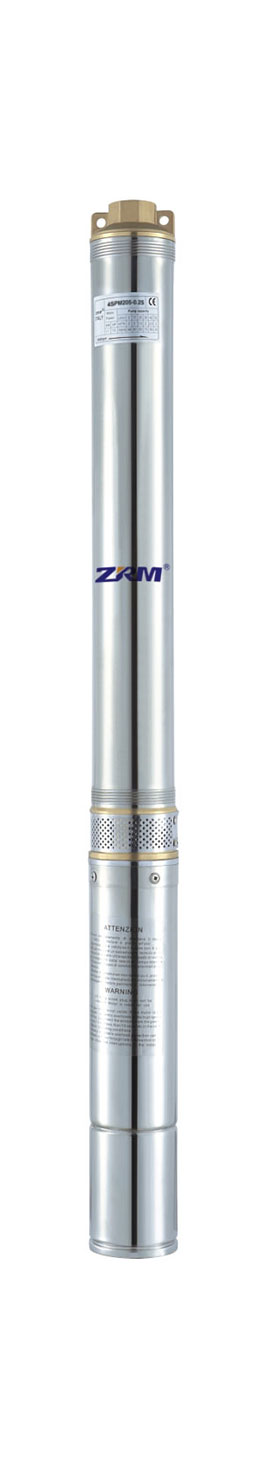

Deep well pump
View More
-Pump/Motor
Qmax:9(m3/h)
Insulation class:B
Protection grade:IP 68
Maximum diameter:φ98mm
Highest temperature of liquid:35℃
Options of different materials sre available.

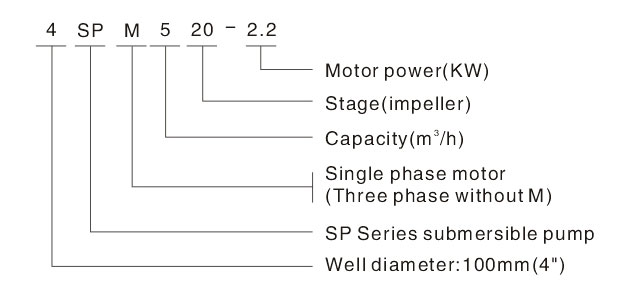

Type | Motor power | Capacity and head | Length | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
single phase 220-240V~Hz50 |
Three phase 380~415v~Hz50 |

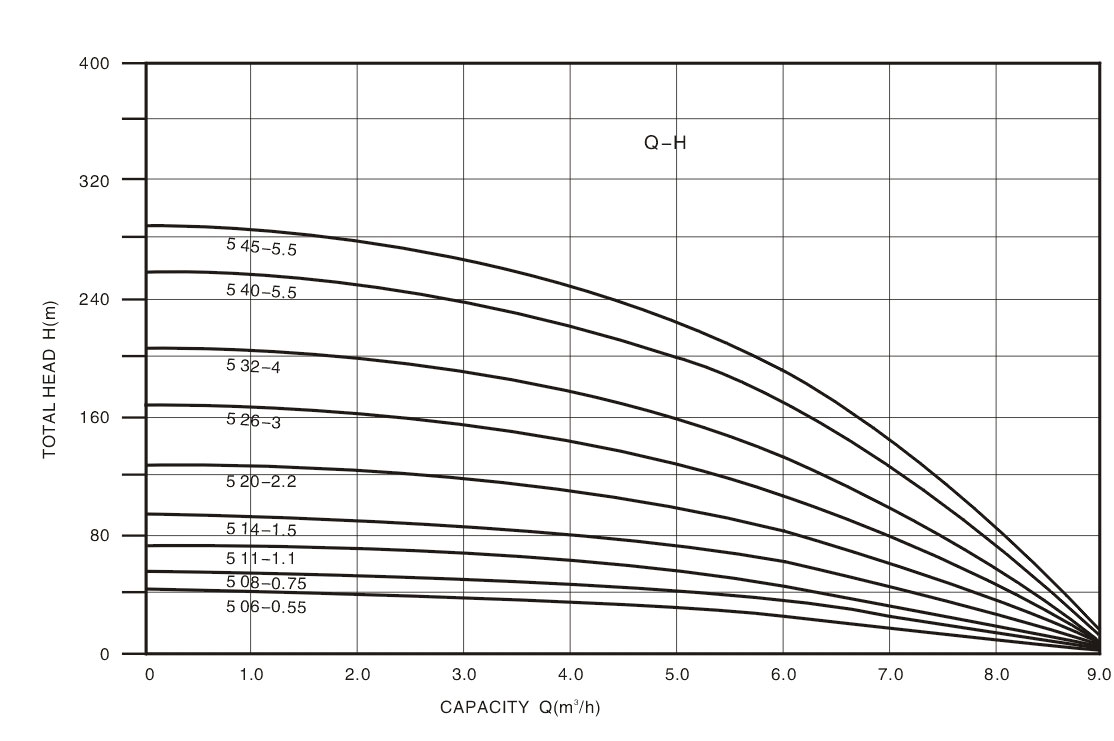

L/min | 0 | 50 | 67 | 83 | 100 | 133 | 150 | |||
KW | HP | m3/h | 0 | 3 | 4 | 5 | 6 | 8 | 9 | mm | ||
4SPM5 06-0.55 | 4SPM5 06-0.55 | 0.55 | 0.75 |
Head (m) |
38 | 37 | 35 | 30 | 28 | 11 | 6 | 747 |
4SPM5 08-0.75 | 4SPM5 08-0.75 | 0.75 | 1 | 51 | 49 | 46 | 40 | 35 | 14 | 7 | 836 | |
4SPM5 11-1.1 | 4SPM5 11-1.1 | 1.1 | 1.5 | 70 | 67 | 64 | 55 | 48 | 20 | 8 | 991 | |
4SPM5 14-1.5 | 4SPM5 14-1.5 | 1.5 | 2 | 90 | 85 | 81 | 70 | 62 | 25 | 9 | 1117 | |
4SPM5 20-2.2 | 4SPM5 20-2.2 | 2.2 | 3 | 128 | 122 | 116 | 100 | 88 | 36 | 11 | 1418 | |
- | 4SPM5 26-3 | 3 | 4 | 166 | 159 | 151 | 130 | 114 | 47 | 12 | 1585 | |
- | 4SPM5 32-4 | 4 | 5.5 | 205 | 195 | 186 | 160 | 141 | 58 | 13 | 1941 | |
- | 4SPM5 40-5.5 | 5.5 | 7.5 | 256 | 244 | 232 | 200 | 176 | 72 | 14 | 2035 | |
- | 4SPM5 45-5.5 | 5.5 | 7.5 | 288 | 275 | 261 | 225 | 198 | 81 | 16 | 2530 |
N0. | Description | N0. | Description | N0. | Description | N0. | Description |
---|---|---|---|---|---|---|---|
1 | Clamping spring |
14 | O-ring |
27 | Suction support |
40 | Bearing bush |
2 | End cover |
15 | Oil chamber |
28 | Strainer |
41 | Screw |
3 | Rubber cup |
16 | O-ring | 29 | Screw |
42 | Screw |
4 | Motor body |
17 | Screw |
30 | Screw |
43 | Diffuser |
5 | Screw |
18 | Sand proof sheath |
31 | Coupling |
44 | Guide bush |
6 | Washer |
19 | Washer |
32 | Bearing bush |
45 | Valve seat |
7 | Bearing seat |
20 | Sand proof cap |
33 | Intermediate support |
46 | Check valve |
8 | Stator |
21 | Screw |
34 | Guide bus |
47 | Screw |
9 | Ball bearing |
22 | Oil chamber cover |
35 | Shaft |
48 | Holder pipe |
10 | Rotor |
23 | Cable |
36 | Shaft ring |
49 | Cable cover |
11 | Ball bearing |
24 | Stud |
37 | Diffuser cover |
50 | Pump bod |
12 | Gasket |
25 | washer |
38 | Impeller |
51 | Outlet |
13 | Thrust bearing |
26 | Nut |
39 | Diffuser |

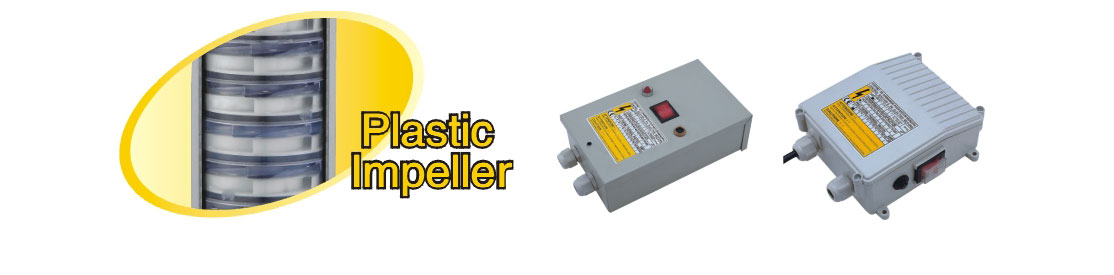

52 | Control box |
