3DCS

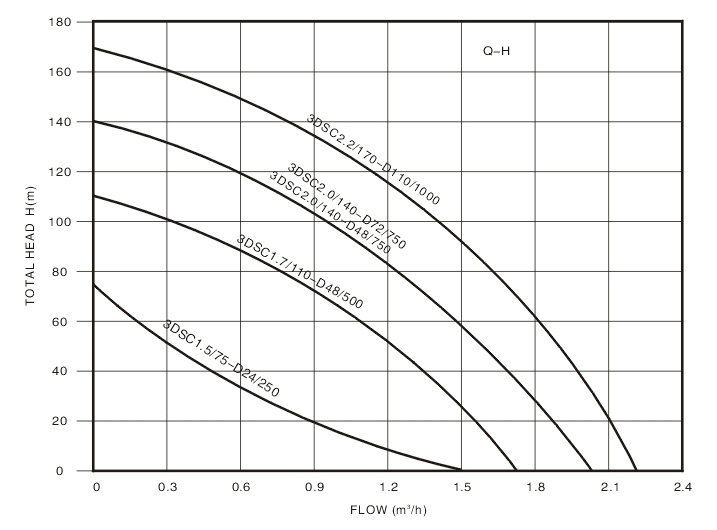

Type single phase 220-240V ~ Hz50	Motor power		Capacity and head									Length
	Motor power		L/min	0	5	10	15	20	25	30	35	Length
	KW	HP	m³/h	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	mm
3DCS1.5/75-D24/250	0.25	0.33	Head(m)	75	47	34	20	4	0	-	-	444x75
3DCS1.7/110-D48/500	0.50	0.68		110	100	90	75	50	25	-	-	444x75
3DCS2.0/140-D48/750	0.75	1		140	130	120	105	85	60	30	-	444x75
3DCS2.0/140-D72/750	0.75	1		140	130	120	105	85	60	30	-	444x75
3DCS2.2/170-D110/1000	1.0	1.36		170	160	150	135	115	90	60	20	464x75

Model	Voltage(V)	Best input voltage (DC) (V)	Motor power		Max Flow (M³/H)	Max Head (M)	Outlet (IN)	Cable (m)	Solar panel
Model	Voltage(V)	Best input voltage (DC) (V)	KW	HP	Max Flow (M³/H)	Max Head (M)	Outlet (IN)	Cable (m)	Open circuit voltage (VOC) (V)	Power
3DCS1.5/75-D24/250	24V	30-48V	0.25	0.33	1.5	75	0.75"	2m	<50V	≥1.3" Pump power
3DCS1.7/110-D48/500	48V	60-90V	0.50	0.68	1.7	110	0.75"	2m	<100V	≥1.3" Pump power
3DCS2.0/140-D48/750	48V	60-90V	0.75	1	2.0	140	0.75"	2m	<100V	≥1.3" Pump power
3DCS2.0/140-D72/750	72V	90-120V	0.75	1	2.0	140	0.75"	2m	<150V	≥1.3" Pump power
3DCS2.2/170-D110/1000	110V	110-150V	1.0	1.36	2.2	170	0.75"	2m	<200V	≥1.3" Pump power
