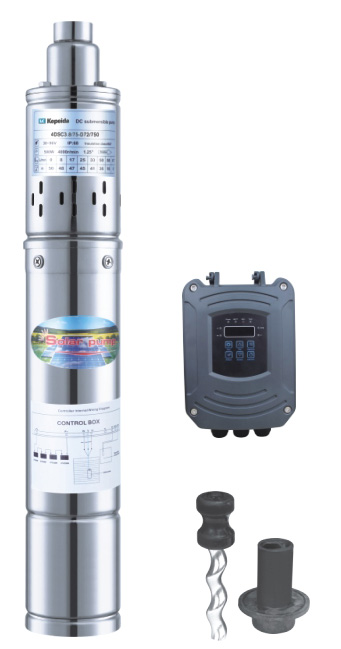

Deep well pump
View More

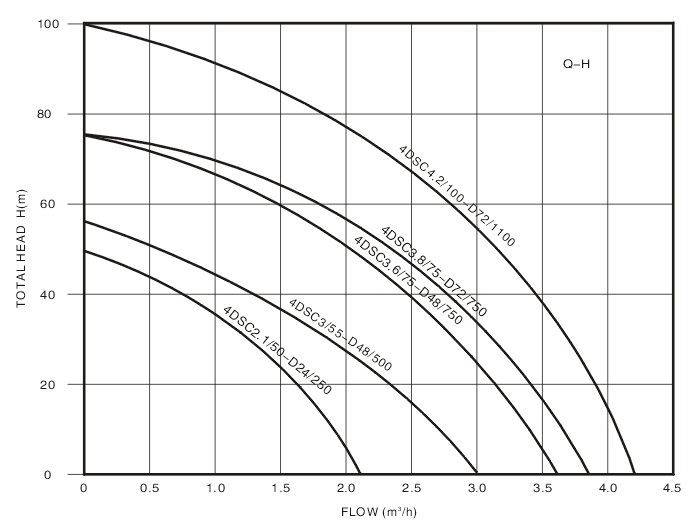

| Type single phase 220-240V ~ Hz50 | Motor power | Capacity and head | Length | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L/min | 0 | 8 | 17 | 25 | 33 | 42 | 50 | 58 | 67 | ||||
| KW | HP | m3/h | 0 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4.0 | mm | |
| 4DCS2.1/50-D24/250 | 0.25 | 0.33 | Head(m) | 50 | 45 | 35 | 25 | 5 | - | - | - | - | 490x100 |
| 4DCS3/55-D48/500 | 0.50 | 0.68 | 55 | 55 | 45 | 35 | 25 | 15 | 0 | - | - | 490x100 | |
| 4DCS3.6/75-D48/750 | 0.75 | 1 | 75 | 70 | 65 | 60 | 50 | 40 | 25 | 5 | - | 490x100 | |
| 4DCS3.8/75-D72/750 | 0.75 | 1 | 75 | 75 | 70 | 65 | 55 | 45 | 35 | 15 | - | 490x100 | |
| 4DCS4.2/100-D110/1000 | 1.1 | 1.5 | 100 | 95 | 90 | 85 | 75 | 68 | 55 | 38 | 15 | 510x100 | |
| Model | Voltage(V) | Best input voltage (DC) (V) | Motor power | Max Flow (M3/H) | Max Head (M) | Outlet (IN) | Cable (m) | Solar panel | ||
|---|---|---|---|---|---|---|---|---|---|---|
| KW | HP | Open circuit voltage (VOC) (V) | Power | |||||||
| 4DCS2.1/50-D24/250 | 24V | 30-48V | 0.25 | 0.33 | 2.1 | 50 | 1" | 2m | <50V | ≥1.3" Pump power |
| 4DCS3/55-D48/500 | 48V | 60-90V | 0.50 | 0.68 | 3 | 55 | 1" | 2m | <100V | ≥1.3" Pump power |
| 4DCS3.6/75-D48/750 | 48V | 60-90V | 0.75 | 1 | 3.6 | 75 | 1" | 2m | <100V | ≥1.3" Pump power |
| 4DCS3.8/75-D72/750 | 72V | 90-120V | 0.75 | 1 | 3.8 | 75 | 1" | 2m | <150V | ≥1.3" Pump power |
| 4DCS4.2/100-D72/1000 | 72V | 90-120V | 1.0 | 1.5 | 4.2 | 100 | 1" | 2m | <150V | ≥1.3" Pump power |
