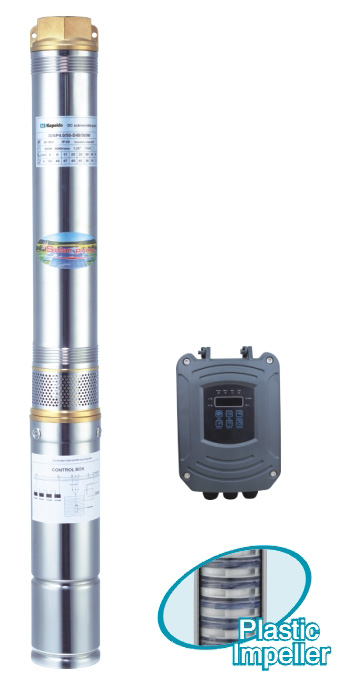

3DSP

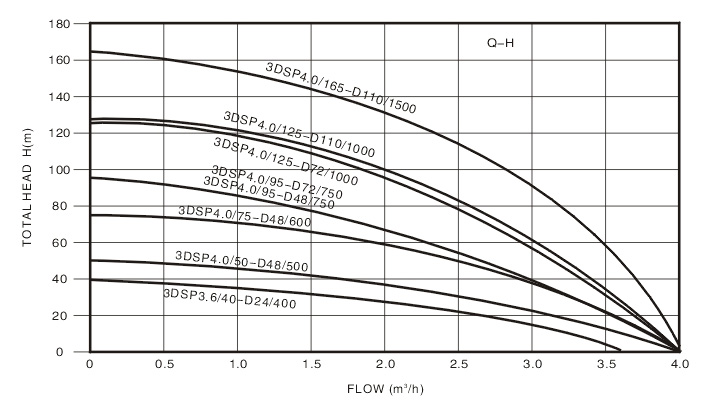

Type single phase 220-240V ~ Hz50	Motor power		Capacity and head										Length
	Motor power		L/min	0	8	17	25	33	42	50	58	67	Length
	KW	HP	m³/h	0	0.5	1	1.5	2	2.5	3	3.5	4.0	mm
3DSP3.6/40-D24/400	0.4	0.54	Head(m)	40	37	36	33	28	22	14	5	-	582x75
3DSP4.0/50-D48/500	0.5	0.68		50	47	46	45	41	36	29	18	5	605x75
3DSP4.0/75-D48/600	0.6	0.82		75	70	65	60	50	42	30	20	1	730x75
3DSP4.0/95-D48/750	0.75	1.0		95	94	90	76	65	50	32	25	2	778x75
3DSP4.0/95-D72/750	0.75	1.0		95	94	90	80	70	58	42	25	2	778x75
3DSP4.0/125-D72/1000	1.0	1.36		125	123	120	110	95	77	52	25	4	893x75
3DSP4.0/125-D110/1000	1.0	1.36		127	125	124	115	103	87	65	35	5	896x75
3DSP4.0/165-D110/1500	1.5	2.0		165	160	155	135	110	82	57	27	5	1076x75

Model	Voltage(V)	Best input voltage (DC) (V)	Motor power		Max Flow (M³/H)	Max Head (M)	Outlet (IN)	Cable (m)	Solar panel
Model	Voltage(V)	Best input voltage (DC) (V)	KW	HP	Max Flow (M³/H)	Max Head (M)	Outlet (IN)	Cable (m)	Open circuit voltage (VOC) (V)	Power
3DSP3.6/40-D24/400	24V	30-48V	0.4	0.54	3.6	40	1.25"	2m	<50V	≥1.3" Pump power
3DSP4.0/50-D48/500	48V	60-90V	0.5	0.68	4.0	50	1.25"	2m	<100V	≥1.3" Pump power
3DSP4.0/75-D48/600	48V	60-90V	0.5	0.82	4.0	75	1.25"	2m	<100V	≥1.3" Pump power
3DSP4.0/95-D48/750	48V	60-90V	0.75	1.0	4.0	95	1.25"	2m	<100V	≥1.3" Pump power
3DSP4.0/95-D72/750	72V	90-120V	0.75	1.0	4.0	95	1.25"	2m	<150V	≥1.3" Pump power
3DSP4.0/125-D72/1000	72V	90-120V	1.0	1.36	4.0	125	1.25"	2m	<150V	≥1.3" Pump power
3DSP4.0/125-D110/1000	110V	110-150V	1.0	1.36	4.0	125	1.25"	2m	<200V	≥1.3" Pump power
3DSP4.0/165-D110/1500	110V	110-150V	1.0	2.0	4.0	165	1.25"	2m	<200V	≥1.3" Pump power
