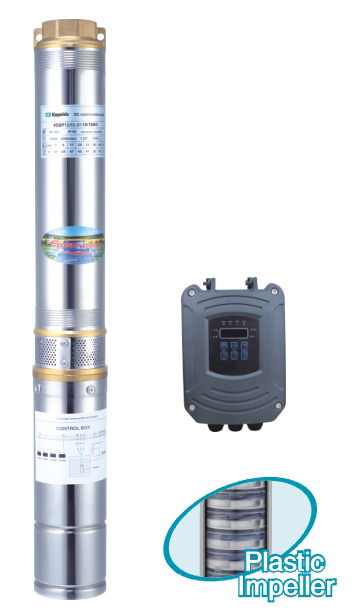

Deep well pump
View More

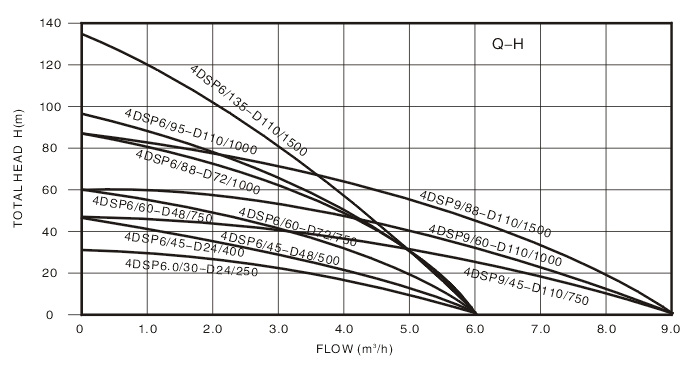

| Type single phase 220-240V ~ Hz50 | Motor power | Capacity and head | Length | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L/min | 0 | 33 | 42 | 50 | 58 | 67 | 83 | 100 | 117 | 133 | 150 | ||||
| KW | HP | m3/h | 0 | 2 | 2.5 | 3 | 3.5 | 4 | 5 | 6 | 7 | 8 | 9 | mm | |
| 4DSP6/30-D24/250 | 0.25 | 0.33 | Head(m) | 30 | 27 | 26 | 23 | 21 | 18 | 10 | 0 | - | - | - | 553x100 |
| 4DSP6/45-D24/400 | 0.4 | 0.51 | 45 | 40 | 37 | 33 | 30 | 25 | 18 | 0 | - | - | - | 580x100 | |
| 4DSP6/45-D48/500 | 0.5 | 0.68 | 45 | 40 | 37 | 35 | 32 | 28 | 21 | 4 | - | - | - | 580x100 | |
| 4DSP6/60-D48/750 | 0.75 | 1.0 | 60 | 52 | 48 | 44 | 40 | 35 | 17 | 2 | - | - | - | 606x100 | |
| 4DSP6/60-D72/750 | 0.75 | 1.0 | 60 | 52 | 48 | 44 | 40 | 35 | 20 | 1 | - | - | - | 606x100 | |
| 4DSP6/88-D72/750 | 1.0 | 1.36 | 88 | 74 | 69 | 64 | 57 | 48 | 30 | 1 | - | - | - | 675x100 | |
| 4DSP6/95-D110/1000 | 1.0 | 1.36 | 95 | 82 | 78 | 70 | 65 | 55 | 35 | 1 | - | - | - | 700x100 | |
| 4DSP6/135-D110/1500 | 1.5 | 2.0 | 135 | 100 | 88 | 76 | 65 | 50 | 45 | 1 | - | - | - | 700x100 | |
| 4DSP9/45-D110/750 | 0.75 | 1.0 | 45 | 42 | 41 | 40 | 39 | 38 | 30 | 35 | 31 | 25 | 20 | 588x100 | |
| 4DSP9/60-D110/1000 | 1.0 | 1.36 | 60 | 55 | 53 | 50 | 48 | 45 | 40 | 35 | 30 | 22 | - | 632x100 | |
| 4DSP9/88-D110/1500 | 1.5 | 2.0 | 88 | 78 | 72 | 70 | 65 | 61 | 50 | 40 | 30 | 15 | - | 690x100 | |

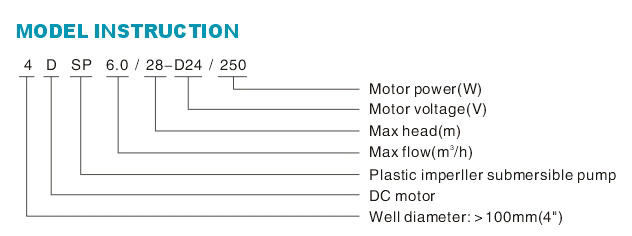

| Model | Voltage(V) | Best input voltage (DC) (V) | Motor power | Max Flow (M3/H) | Max Head (M) | Outlet (IN) | Cable (m) | Solar panel | ||
|---|---|---|---|---|---|---|---|---|---|---|
| KW | HP | Open circuit voltage (VOC) (V) | Power | |||||||
| 4DSP6/30-D24/250 | 24V | 30-48V | 0.25 | 0.33 | 6.0 | 28 | 1.25" | 2m | <50V | ≥1.3" Pump power |
| 4DSP6/45-D24/400 | 24V | 30-48V | 0.4 | 0.54 | 6.0 | 45 | 1.25" | 2m | <100V | ≥1.3" Pump power |
| 4DSP6/45-D48/500 | 48V | 60-90V | 0.5 | 0.68 | 6.0 | 45 | 1.25" | 2m | <100V | ≥1.3" Pump power |
| 4DSP6/60-D48/750 | 48V | 60-90V | 0.75 | 1.0 | 6.0 | 60 | 1.25" | 2m | <100V | ≥1.3" Pump power |
| 4DSP6/60-D72/750 | 72V | 90-120V | 0.75 | 1.0 | 6.0 | 60 | 1.25" | 2m | <150V | ≥1.3" Pump power |
| 4DSP6/88-D72/750 | 72V | 90-120V | 1.0 | 1.36 | 6.0 | 88 | 1.25" | 2m | <150V | ≥1.3" Pump power |
| 4DSP6/95-D110/1000 | 110V | 110-150V | 1.0 | 1.36 | 6.0 | 95 | 1.25" | 2m | <200V | ≥1.3" Pump power |
| 4DSP6/135-D110/1500 | 110V | 110-150V | 1.5 | 2.0 | 6.0 | 135 | 1.25" | 2m | <200V | ≥1.3" Pump power |
| 4DSP9/45-D110/750 | 110V | 110-150V | 0.75 | 1.0 | 9.0 | 45 | 1.5" | 2m | <200V | ≥1.3" Pump power |
| 4DSP9/60-D110/1000 | 110V | 110-150V | 1.0 | 1.36 | 9.0 | 60 | 1.5" | 2m | <200V | ≥1.3" Pump power |
| 4DSP9/88-D110/1500 | 110V | 110-150V | 1.5 | 2.0 | 9.0 | 88 | 1.5" | 2m | <200V | ≥1.3" Pump power |
