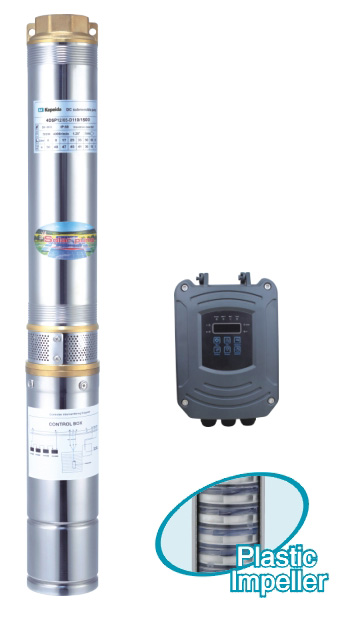

Deep well pump
View More

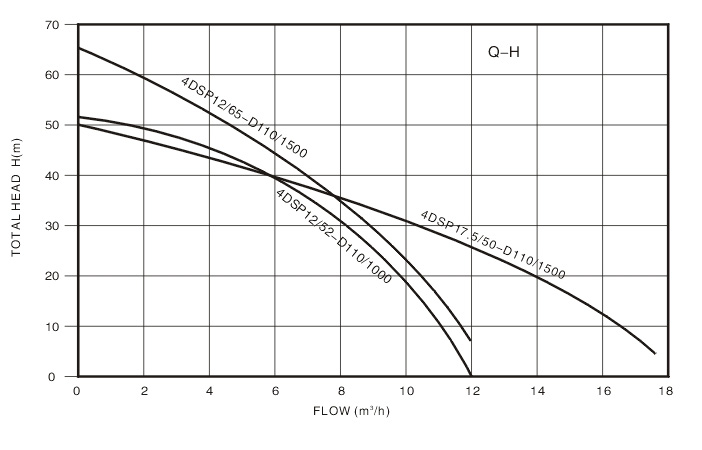

| Type single phase 220-240V ~ Hz50 | Motor power | Capacity and head | Length | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L/min | 0 | 33 | 67 | 100 | 117 | 133 | 150 | 137 | 183 | 200 | 223 | 245 | 275 | ||||
| KW | HP | m3/h | 0 | 2 | 4 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 14 | 14.7 | 16.5 | mm | |
| 4DSP12/52-D110/1000 | 1.0 | 1.36 | Head(m) | 52 | 45 | 43 | 40 | 36 | 30 | 25 | 18 | 8 | - | - | - | - | 650x100 |
| 4DSP12/65-D110/1500 | 1.5 | 2.0 | 65 | 59 | 52 | 42 | 38 | 32 | 28 | 22 | 15 | 8 | - | - | - | 683x100 | |
| 4DSP17.5/50-D110/1500 | 1.5 | 2.0 | 50 | 46 | 42.5 | 40 | 38 | 34 | 31 | 29 | 26 | 24 | 17.5 | 13 | 8 | 670x100 | |

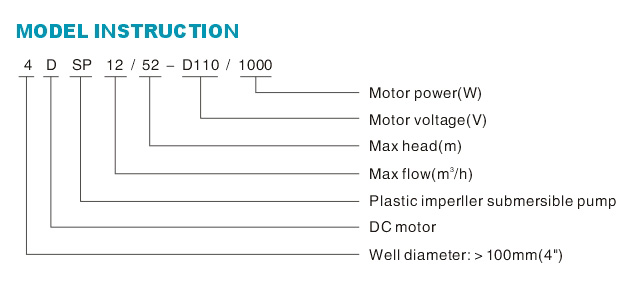

| Model | Voltage(V) | Best input voltage (DC) (V) | Motor power | Max Flow (M3/H) | Max Head (M) | Outlet (IN) | Cable (m) | Solar panel | ||
|---|---|---|---|---|---|---|---|---|---|---|
| KW | HP | Open circuit voltage (VOC) (V) | Power | |||||||
| 4DSP12/52-D110/1000 | 110V | 110-150V | 1.0 | 1.36 | 12 | 52 | 2" | 2m | <200V | ≥1.3" Pump power |
| 4DSP12/65-D110/1500 | 110V | 110-150V | 1.5 | 2.0 | 12 | 65 | 2" | 2m | <200V | ≥1.3" Pump power |
| 4DSP17.5/50-D110/1500 | 110V | 110-150V | 1.5 | 2.0 | 17.5 | 50 | 2" | 2m | <200V | ≥1.3" Pump power |
