4DSP-A/D

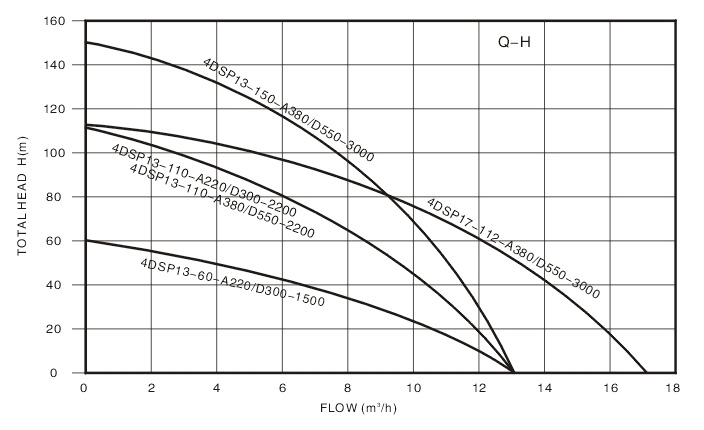

Type single phase 220-240V ~ Hz50	Motor power		Capacity and head														Length
	Motor power		L/min	0	33	67	100	117	133	150	167	183	200	223	245	275	Length
	KW	HP	m³/h	0	2	4	6	7	8	9	10	11	12	14	14.7	16.5	mm
4DSP13-60-A220/D300-1500	1.5	2	Head(m)	60	55	50	42	38	32	30	22	18	10	-	-	-	684x100
4DSP13-110-A220/D300-2200	2.2	3		110	105	95	80	70	62	55	43	35	20	-	-	-	837x100
4DSP13-110-A380/D550-2200	2.2	3		110	105	95	80	70	62	55	43	35	20	-	-	-	837x100
4DSP13-150-A380/D550-3000	3	4		150	145	130	115	110	95	82	70	50	30	-	-	-	986x100
4DSP13-112-A380/D550-3000	3	4		112	110	105	95	90	85	80	75	70	60	41	38	10	927x100

Model	Voltage(V)	Best input voltage (DC) (V)	Motor power		Max Flow (M³/H)	Max Head (M)	Outlet (IN)	Cable (m)	Solar panel
Model	Voltage(V)	Best input voltage (DC) (V)	KW	HP	Max Flow (M³/H)	Max Head (M)	Outlet (IN)	Cable (m)	Open circuit voltage (VOC) (V)	Power
4DSP13-60-A220/D300-1500	300V	300/400V	1.5	2	13	60	2"	2m	<450V	≥1.3" Pump power
4DSP13-110-A220/D300-2200	300V	300/400V	2.2	3	13	110	2"	2m	<450V	≥1.3" Pump power
4DSP13-110-A380/D550-2200	550V	480/750V	2.2	3	13	110	2"	2m	<800V	≥1.3" Pump power
4DSP13-150-A380/D550-3000	550V	480/750V	3	4	13	150	2"	2m	<800V	≥1.3" Pump power
4DSP13-112-A380/D550-3000	550V	480/750V	3	4	17	112	2"	2m	<800V	≥1.3" Pump power
