4DSS-A/D

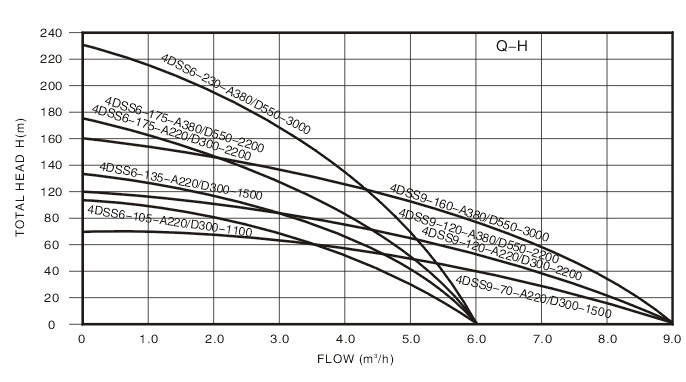

Type single phase 220-240V ~ Hz50	Motor power		Capacity and head												Length
	Motor power		L/min	0	33	42	50	58	67	83	97	100	133	150	Length
	KW	HP	m³/h	0	2	2.5	3	3.5	4	5	5.8	6	8	9	mm
4DSS6-105-A220/D300-1100	1.1	1.5	Head(m)	105	80	75	70	60	50	30	10	1	-	-	639x100
4DSS6-135-A220/D300-1500	1.5	2		135	110	105	82	75	68	40	15	2	-	-	707x100
4DSS6-175-A220/D300-2200	2.2	3		175	145	138	130	118	82	50	18	3	-	-	793x100
4DSS6-175-A380/D550-2200	2.2	3		17	145	138	130	118	82	50	18	3	-	-	793x100
4DSS6-230-A380/D550-3000	3	4		5230	195	182	170	150	138	70	21	5	-	-	923x100
4DSS9-70-A220/D300-1500	1.5	2		70	65	62	61	60	59	50	42	40	-	-	553x100
4DSS9-120-A220/D300-2200	2.2	3		120	100	90	82	80	78	62	58	50	18	1	661x100
4DSS9-120-A380/D550-2200	2.2	3		120	100	90	82	80	78	62	58	50	20	2	661x100
4DSS9-160-A380/D550-3000	3	4		160	145	140	138	130	125	110	80	78	38	3	747x100

Model	Voltage(V)	Best input voltage (DC) (V)	Motor power		Max Flow (M³/H)	Max Head (M)	Outlet (IN)	Cable (m)	Solar panel
Model	Voltage(V)	Best input voltage (DC) (V)	KW	HP	Max Flow (M³/H)	Max Head (M)	Outlet (IN)	Cable (m)	Open circuit voltage (VOC) (V)	Power
4DSS6-105-A220/D300-1100	300V	300/400V	1.1	1.5	6	105	1.25"	2m	<450V	≥1.3" Pump power
4DSS6-135-A220/D300-1500	300V	300/400V	1.5	2	6	135	1.25"	2m	<450V	≥1.3" Pump power
4DSS6-175-A220/D300-2200	300V	300/400V	2.2	3	6	175	1.25"	2m	<450V	≥1.3" Pump power
4DSS6-175-A380/D550-2200	550V	480/750V	2.2	3	6	175	1.25"	2m	<800V	≥1.3" Pump power
4DSS6-230-A380/D550-3000	550V	480/750V	3	4	6	230	1.25"	2m	<800V	≥1.3" Pump power
4DSS9-70-A220/D300-1500	300V	300/400V	1.5	2	9	70	1.5"	2m	<450V	≥1.3" Pump power
4DSS9-120-A220/D300-2200	300V	300/400V	2.2	3	9	120	1.5"	2m	<450V	≥1.3" Pump power
4DSS9-120-A380/D550-2200	550V	480/750V	2.2	3	9	120	1.5"	2m	<800V	≥1.3" Pump power
4DSS9-160-A380/D550-3000	550V	480/750V	3	4	9	160	1.5"	2m	<800V	≥1.3" Pump power
