4DSS-A/D

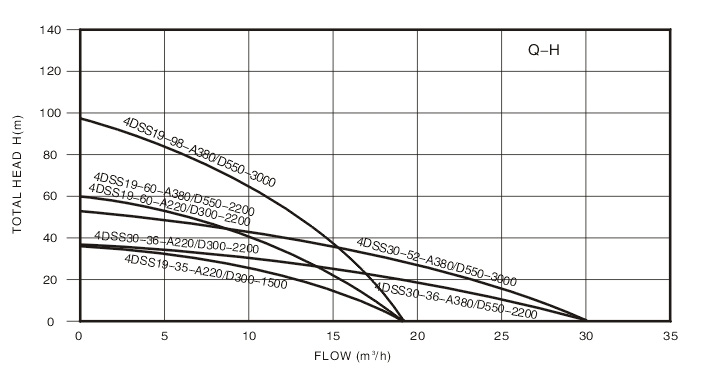

Type single phase 220-240V ~ Hz50	Motor power		Capacity and head														Length
	Motor power		L/min	0	67	100	133	150	167	183	200	223	275	283	333	367	Length
	KW	HP	m³/h	0	4	6	8	9	10	11	12	14	16.5	17	20	22	mm
4DSS19-35-A220/D300-1500	1.5	2	Head(m)	35	33	30	28	25	23	21	20	19	11	10	-	-	546x100
4DSS19-60-A220/D300-2200	2.2	3		60	57	50	45	43	40	38	35	30	19	17	-	-	650x100
4DSS19-60-A380/D550-2200	2.2	3		60	57	50	45	43	40	38	35	30	19	17	-	-	650x100
4DSS19-98-A380/D550-3000	3	4		98	90	80	70	68	63	60	55	45	30	20	-	-	712x100
4DSS30-36-A220/D300-2200	2.2	3		36	34	32	30	28	27	26	25	24	22	19	18	2	608x100
4DSS30-36-A380/D550-2200	2.2	3		36	34	32	30	28	27	26	25	24	22	19	18	2	608x100
4DSS30-52-A380/D550-3000	3	4		52	50	48	45	43	41	40	39	38	32	30	28	3	672x100

Model	Voltage(V)	Best input voltage (DC) (V)	Motor power		Max Flow (M³/H)	Max Head (M)	Outlet (IN)	Cable (m)	Solar panel
Model	Voltage(V)	Best input voltage (DC) (V)	KW	HP	Max Flow (M³/H)	Max Head (M)	Outlet (IN)	Cable (m)	Open circuit voltage (VOC) (V)	Power
4DSS19-35-A220/D300-1500	300V	300/400V	1.5	2	19	35	2"	2m	<450V	≥1.3" Pump power
4DSS19-60-A220/D300-2200	300V	300/400V	2.2	3	19	60	2"	2m	<450V	≥1.3" Pump power
4DSS19-60-A380/D550-2200	550V	480/750V	2.2	3	19	60	2"	2m	<800V	≥1.3" Pump power
4DSS19-98-A380/D550-3000	550V	480/750V	3	4	19	98	2"	2m	<800V	≥1.3" Pump power
4DSS30-36-A220/D300-2200	300V	300/400V	2.2	3	30	36	2"	2m	<450V	≥1.3" Pump power
4DSS30-36-A380/D550-2200	550V	480/750V	2.2	3	30	36	2"	2m	<800V	≥1.3" Pump power
4DSS30-52-A380/D550-3000	550V	480/750V	3	4	30	52	2"	2m	<800V	≥1.3" Pump power
