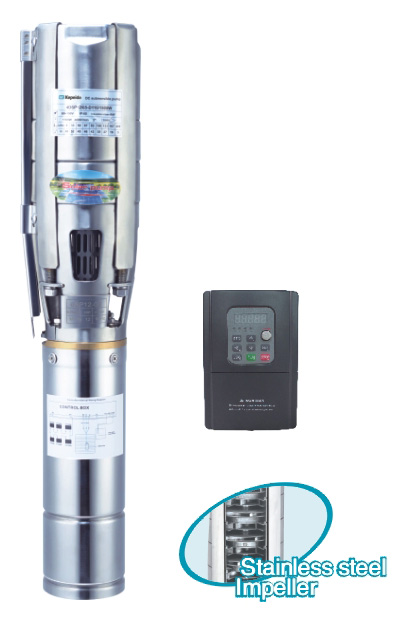

Deep well pump
View More

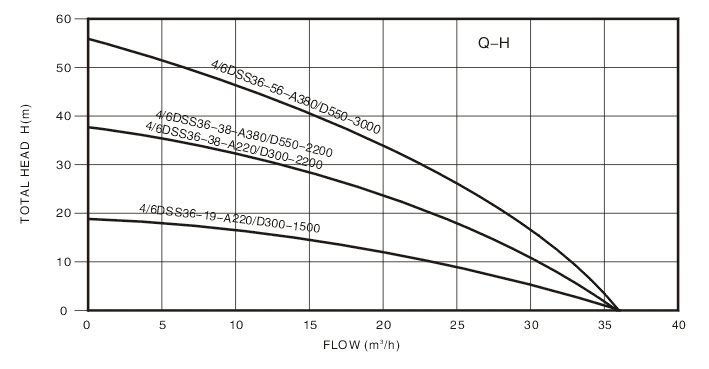

| Type single phase 220-240V ~ Hz50 | Motor power | Capacity and head | Length | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L/min | 0 | 83 | 167 | 250 | 333 | 417 | 500 | 583 | ||||
| KW | HP | m3/h | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | mm | |
| 4/6DSS36-19-A220/D300-1500 | 1.5 | 2 | Head(m) | 19 | 18 | 16 | 15 | 12 | 9 | 5 | 2 | 587x150 |
| 4/6DSS36-38-A220/D300-2200 | 2.2 | 3 | 38 | 35 | 32 | 28 | 23 | 18 | 10 | 3 | 651x150 | |
| 4/6DSS36-38-A380/D550-2200 | 2.2 | 3 | 38 | 35 | 32 | 28 | 23 | 18 | 10 | 3 | 651x150 | |
| 4/6DSS36-56-A380/D550-3000 | 3 | 4 | 56 | 52 | 46 | 40 | 25 | 24 | 18 | 5 | 715x150 | |
| Model | Voltage(V) | Best input voltage (DC) (V) | Motor power | Max Flow (M3/H) | Max Head (M) | Outlet (IN) | Cable (m) | Solar panel | ||
|---|---|---|---|---|---|---|---|---|---|---|
| KW | HP | Open circuit voltage (VOC) (V) | Power | |||||||
| 4/6DSS36-19-A220/D300-1500 | 300V | 300/400V | 1.5 | 2 | 36 | 19 | 3" | 2m | <450V | ≥1.3" Pump power |
| 4/6DSS36-38-A220/D300-2200 | 300V | 300/400V | 2.2 | 3 | 36 | 38 | 3" | 2m | <450V | ≥1.3" Pump power |
| 4/6DSS36-38-A380/D550-2200 | 550V | 480/750V | 2.2 | 3 | 36 | 38 | 3" | 2m | <800V | ≥1.3" Pump power |
| 4/6DSS36-56-A380/D550-3000 | 550V | 480/750V | 3 | 4 | 36 | 56 | 3" | 2m | <800V | ≥1.3" Pump power |
