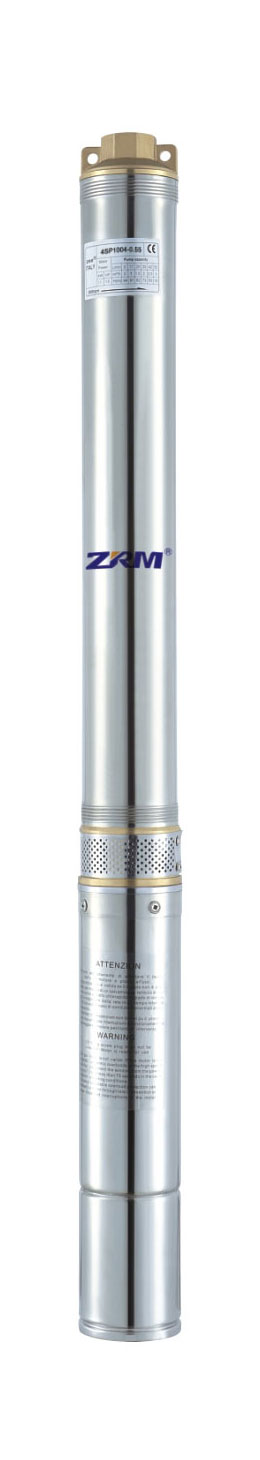

Deep well pump
View More
-Pump/Motor
Qmax:16.5(m3/h)
Insulation class:B
Protection grade:IP 68
Maximum diameter:φ98mm
Highest temperature of liquid:35℃
Options of different materials sre available.

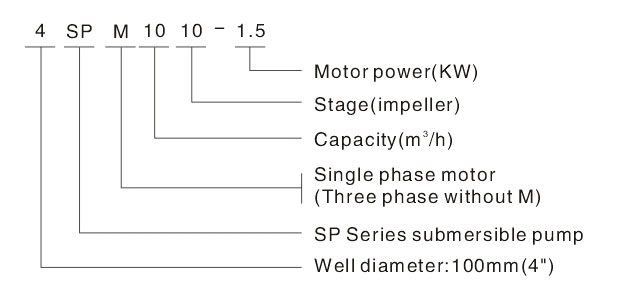

Type | Motor power | Capacity and head | Length | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
single phase 220-240V~Hz50 |
Three phase 380~415v~Hz50 |

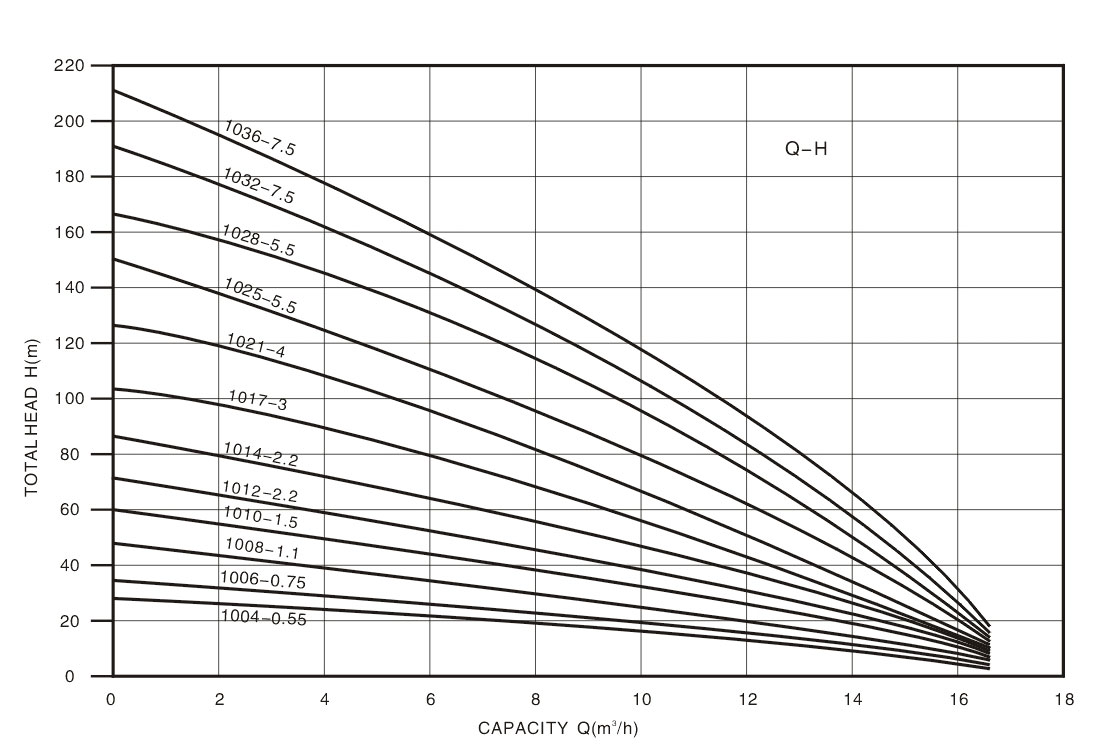

L/min | 0 | 67 | 100 | 133 | 150 | 167 | 183 | 200 | 223 | 275 | |||
KW | HP | m3/h | 0 | 4 | 6 | 8 | 9 | 10 | 11 | 12 | 14 | 16.5 | mm | ||
4SPM10 04-0.55 | 4SPM10 04-0.55 | 0.55 | 0.75 |
Head (m) |
24 | 22 | 20 | 18 | 16 | 15 | 14 | 12 | 8 | 4 | 808 |
4SPM10 06-0.75 | 4SPM10 06-0.75 | 0.75 | 1 | 36 | 33 | 31 | 28 | 25 | 23 | 22 | 18 | 12 | 6 | 914 | |
4SPM10 08-1.1 | 4SPM10 08-1.1 | 1.1 | 1.5 | 48 | 44 | 41 | 37 | 33 | 31 | 29 | 24 | 16 | 8 | 1049 | |
4SPM10 10-1.5 | 4SPM10 10-1.5 | 1.5 | 2 | 60 | 55 | 51 | 46 | 41 | 39 | 36 | 30 | 20 | 9 | 1205 | |
4SPM10 12-2.2 | 4SPM10 12-2.2 | 2.2 | 3 | 72 | 66 | 61 | 55 | 49 | 46 | 43 | 36 | 24 | 10 | 1306 | |
4SPM10 14-2.2 | 4SPM10 14-2.2 | 2.2 | 3 | 84 | 77 | 71 | 65 | 57 | 54 | 50 | 42 | 28 | 12 | 1399 | |
- | 4SPM10 17-3 | 3 | 4 | 102 | 94 | 87 | 78 | 70 | 65 | 61 | 51 | 34 | 13 | 1686 | |
- | 4SPM10 21-4 | 4 | 5.5 | 126 | 116 | 107 | 97 | 86 | 81 | 76 | 63 | 42 | 14 | 1903 | |
- | 4SPM10 25-5.5 | 5.5 | 7.5 | 150 | 138 | 128 | 115 | 103 | 96 | 90 | 75 | 50 | 15 | 2096 | |
- | 4SPM10 28-5.5 | 5.5 | 7.5 | 168 | 157 | 143 | 129 | 115 | 108 | 101 | 84 | 56 | 16 | 2348 | |
- | 4SPM10 32-7.5 | 7.5 | 10 | 192 | 117 | 163 | 148 | 131 | 123 | 115 | 96 | 64 | 17 | 2579 | |
- | 4SPM10 36-7.5 | 7.5 | 10 | 216 | 199 | 184 | 166 | 148 | 139 | 130 | 108 | 72 | 18 |
N0. | Description | N0. | Description | N0. | Description | N0. | Description |
---|---|---|---|---|---|---|---|
1 | Clamping spring |
14 | O-ring |
27 | Suction support |
40 | Bearing bush |
2 | End cover |
15 | Oil chamber |
28 | Strainer |
41 | Screw |
3 | Rubber cup |
16 | O-ring | 29 | Screw |
42 | Screw |
4 | Motor body |
17 | Screw |
30 | Screw |
43 | Diffuser |
5 | Screw |
18 | Sand proof sheath |
31 | Coupling |
44 | Guide bush |
6 | Washer |
19 | Washer |
32 | Bearing bush |
45 | Valve seat |
7 | Bearing seat |
20 | Sand proof cap |
33 | Intermediate support |
46 | Check valve |
8 | Stator |
21 | Screw |
34 | Guide bus |
47 | Screw |
9 | Ball bearing |
22 | Oil chamber cover |
35 | Shaft |
48 | Holder pipe |
10 | Rotor |
23 | Cable |
36 | Shaft ring |
49 | Cable cover |
11 | Ball bearing |
24 | Stud |
37 | Diffuser cover |
50 | Pump bod |
12 | Gasket |
25 | washer |
38 | Impeller |
51 | Outlet |
13 | Thrust bearing |
26 | Nut |
39 | Diffuser |

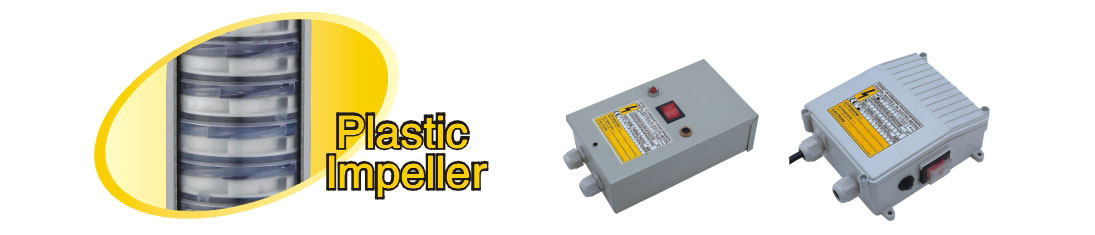

52 | Control box |
