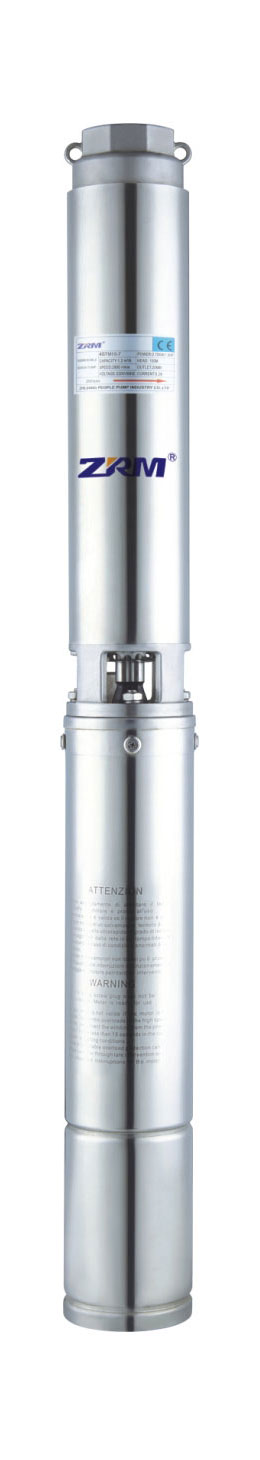

Deep well pump
View More
-Pump/Motor
Qmax:16.5(m3/h)
Insulation class:B
Protection grade:IP 68
Maximum diameter:φ98mm
Highest temperature of liquid:35℃
Options of different materials sre available.

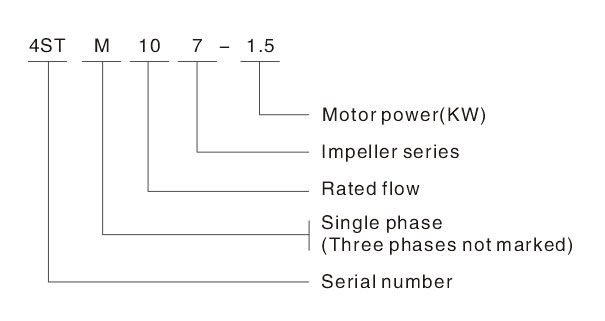

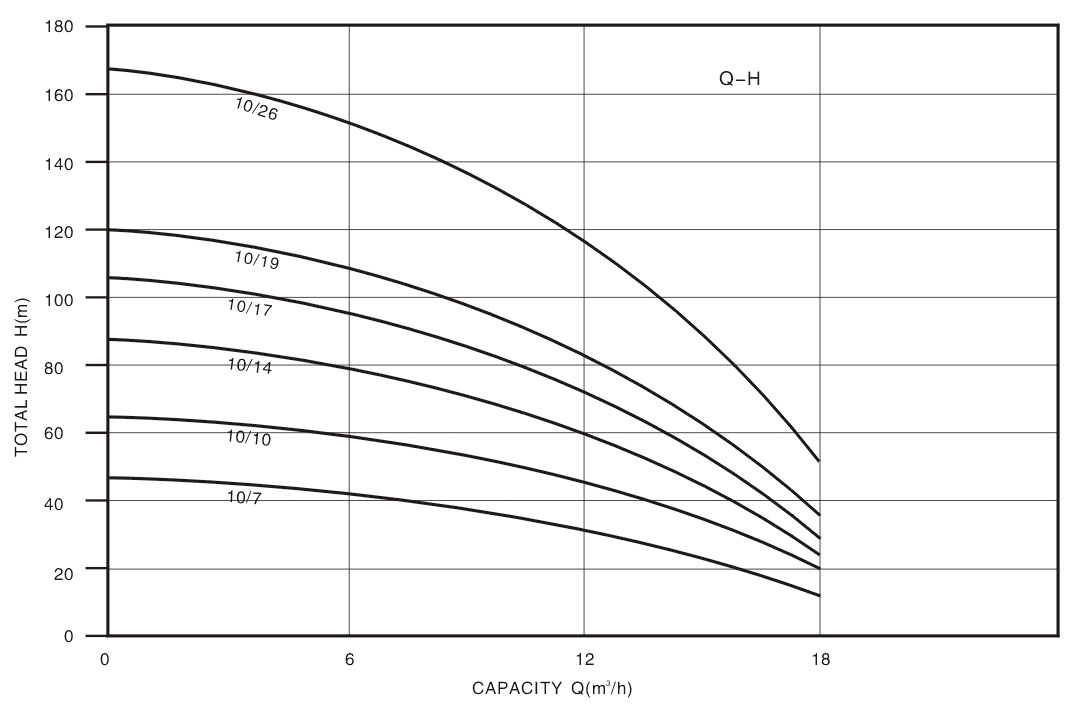

| Type | Motor power | Capacity and head | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
single phase 220-240V~Hz50 |
Three phase |
L/min | 0 | 80 | 90 | 100 | 120 | 140 | 160 | 180 | 200 | 220 | 240 | 260 | 280 | ||
| KW | HP | m3/h | 0 | 4.8 | 5.4 | 6.0 | 7.2 | 8.4 | 9.6 | 10.8 | 12 | 13 | 14.4 | 16 | 17 | ||
| 4STM10 10/7 | 4ST 10/7 | 1.5 | 2 |
Head (m) |

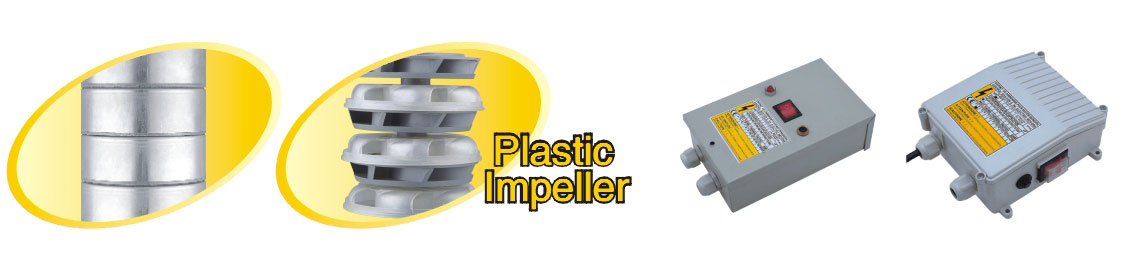

45 | 37 | 36 | 33 | 31 | 28 | 25 | 22 | 18 | 14 | |||
| 4STM10 10/10 | 4ST 10/10 | 2.2 | 3 | 64 | 54 | 52 | 48 | 44 | 41 | 36 | 32 | 26 | 20 | ||||
| - | 4ST 10/14 | 3.0 | 4 | 89 | 76 | 72 | 67 | 62 | 56 | 49 | 43 | 35 | 28 | ||||
| - | 4ST 10/17 | 3.7 | 5 | 107 | 90 | 86 | 80 | 74 | 67 | 59 | 51 | 42 | 32 | ||||
| - | 4ST 10/19 | 4.0 | 5.5 | 120 | 102 | 97 | 91 | 89 | 76 | 68 | 58 | 48 | 37 | ||||
| - | 4ST 10/26 | 5.5 | 7.5 | 163 | 136 | 129 | 120 | 111 | 100 | 87 | 75 | 61 | 48 | ||||
| N0. | Description | N0. | Description | N0. | Description | N0. | Description |
|---|---|---|---|---|---|---|---|
| 1 | Clamping spring |
14 | O-ring |
27 | Suction support |
40 | Bearing bush |
| 2 | End cover |
15 | Oil chamber |
28 | Strainer |
41 | Screw |
| 3 | Rubber cup |
16 | O-ring | 29 | Screw |
42 | Screw |
| 4 | Motor body |
17 | Screw |
30 | Screw |
43 | Diffuser |
| 5 | Screw |
18 | Sand proof sheath |
31 | Coupling |
44 | Guide bush |
| 6 | Washer |
19 | Washer |
32 | Bearing bush |
45 | Valve seat |
| 7 | Bearing seat |
20 | Sand proof cap |
33 | Intermediate support |
46 | Check valve |
| 8 | Stator |
21 | Screw |
34 | Guide bus |
47 | Screw |
| 9 | Ball bearing |
22 | Oil chamber cover |
35 | Shaft |
48 | Holder pipe |
| 10 | Rotor |
23 | Cable |
36 | Shaft ring |
49 | Cable cover |
| 11 | Ball bearing |
24 | Stud |
37 | Diffuser cover |
50 | Pump bod |
| 12 | Gasket |
25 | washer |
38 | Impeller |
51 | Outlet |
| 13 | Thrust bearing |
26 | Nut |
39 | Diffuser |
52 | Control box |
