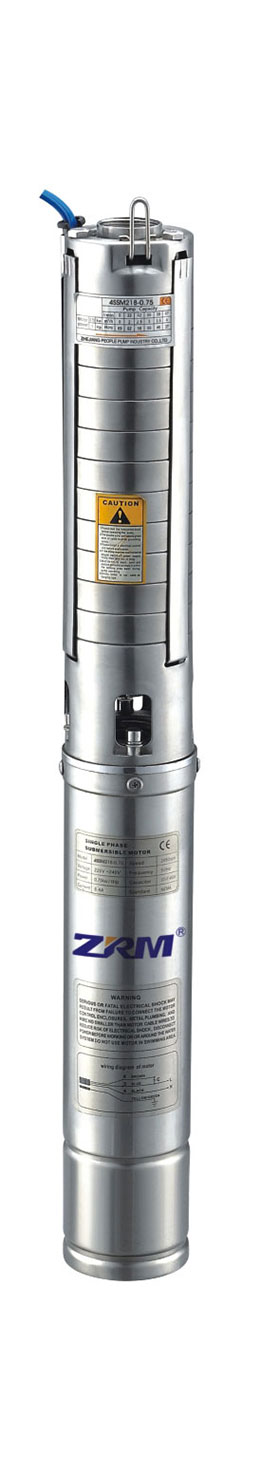

Deep well pump
View More
-Pump/Motor
Qmax:4(m3/h)
Adopted the NEMA standard
Insulation class:B
Protection grade:IP 68
Maximum diameter:φ98mm
Highest temperature of liquid:35℃
Options of different materials sre available.

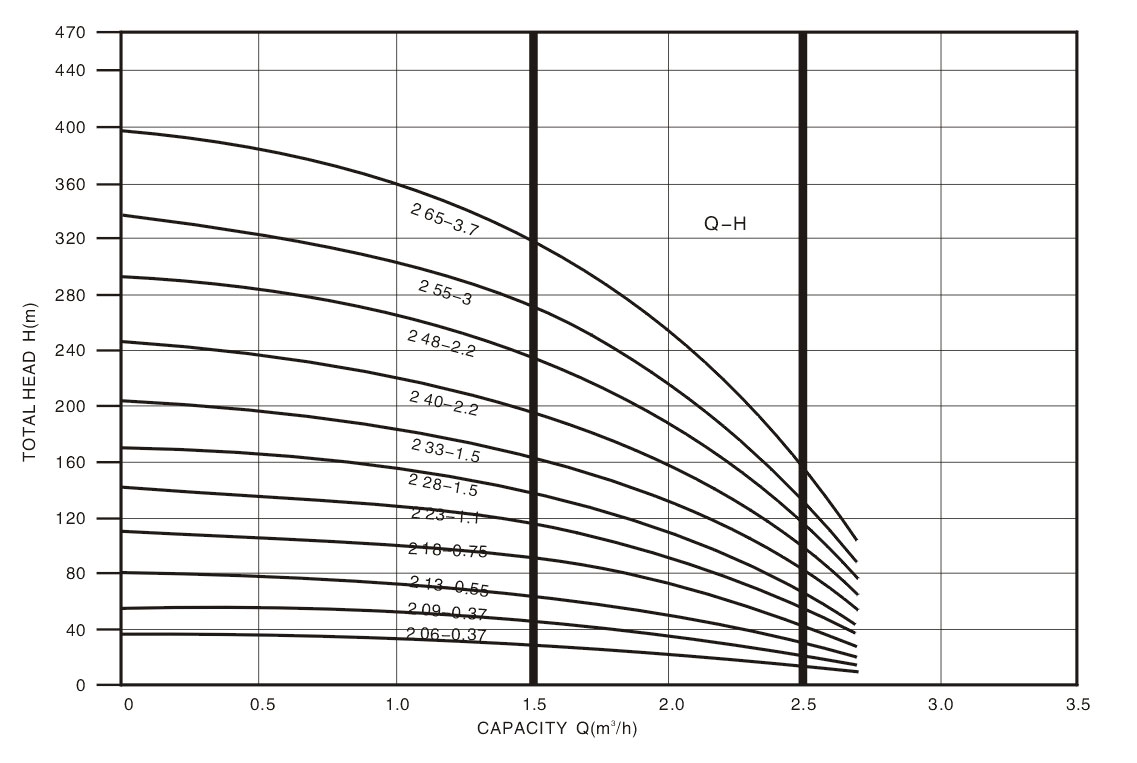

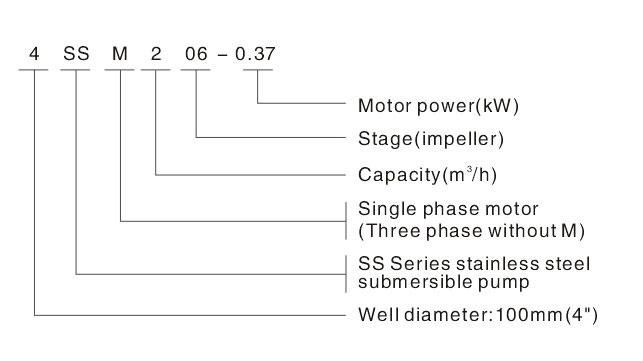

Type | Motor power | Capacity and head | Length | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
single phase 220-240V~Hz50 |
Three phase |
L/min | 0 | 15 | 25 | 33 | 40 | 45 | |||
KW | HP | m3/h | 0 | 0.9 | 1.5 | 2 | 2.4 | 2.7 | mm | ||
4SSM2 06-0.37 | 0.37 | 0.5 |
Head (m) |
37 | 34 | 30 | 23 | 17 | 10 | 632 | |
4SSM2 09-0.37 | 0.37 | 0.5 | 55 | 51 | 45 | 35 | 25 | 14 | 695 | ||
4SSM2 13-0.55 | 0.55 | 0.75 | 80 | 73 | 64 | 51 | 36 | 21 | 804 | ||
4SSM2 18-0.75 | 0.75 | 1 | 110 | 101 | 89 | 72 | 50 | 29 | 929 | ||
4SSM2 23-1.1 | 4SS2 23-1.1 | 1.1 | 1.5 | 141 | 129 | 114 | 91 | 64 | 37 | 1059 | |
4SSM2 28-1.5 | 4SS2 28-1.5 | 1.5 | 2 | 171 | 157 | 139 | 110 | 78 | 45 | 1199 | |
4SSM2 33-1.5 | 4SS2 33-1.5 | 1.5 | 2 | 202 | 186 | 163 | 131 | 92 | 53 | 1304 | |
4SSM2 40-2.2 | 4SS2 40-2.2 | 2.2 | 3 | 245 | 225 | 198 | 150 | 112 | 65 | 1508 | |
4SSM2 48-2.2 | 4SS2 48-2.2 | 2.2 | 3 | 294 | 270 | 237 | 185 | 134 | 78 | 1676 | |
- | 4SS2 55-3 | 3 | 4 | 336 | 309 | 272 | 218 | 154 | 89 | 1835 | |
- | 4SS2 65-3.7 | 3.7 | 5 | 398 | 365 | 321 | 255 | 182 | 105 | 2060 |
N0. | Description | N0. | Description | N0. | Description | N0. | Description |
---|---|---|---|---|---|---|---|
1 | Clamping spring |
14 | O-ring |
27 | Suction support |
40 | Bearing bush |
2 | End cover |
15 | Oil chamber |
28 | Strainer |
41 | Screw |
3 | Rubber cup |
16 | O-ring | 29 | Screw |
42 | Screw |
4 | Motor body |
17 | Screw |
30 | Screw |
43 | Diffuser |
5 | Screw |
18 | Sand proof sheath |
31 | Coupling |
44 | Guide bush |
6 | Washer |
19 | Washer |
32 | Bearing bush |
45 | Valve seat |
7 | Bearing seat |
20 | Sand proof cap |
33 | Intermediate support |
46 | Check valve |
8 | Stator |
21 | Screw |
34 | Guide bus |
47 | Screw |
9 | Ball bearing |
22 | Oil chamber cover |
35 | Shaft |
48 | Holder pipe |
10 | Rotor |
23 | Cable |
36 | Shaft ring |
49 | Cable cover |
11 | Ball bearing |
24 | Stud |
37 | Diffuser cover |
50 | Pump bod |
12 | Gasket |
25 | washer |

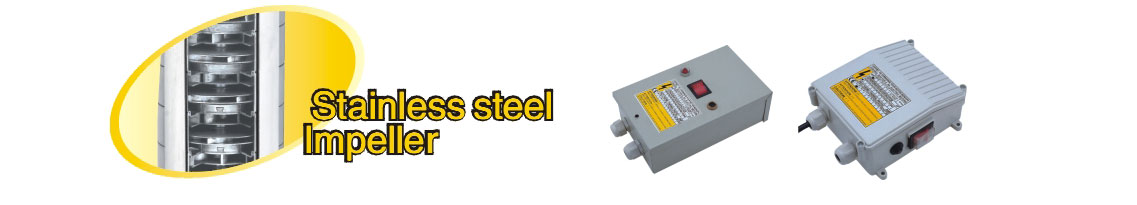

38 | Impeller |
51 | Outlet |
13 | Thrust bearing |
26 | Nut |
39 | Diffuser |
52 | Control box |
