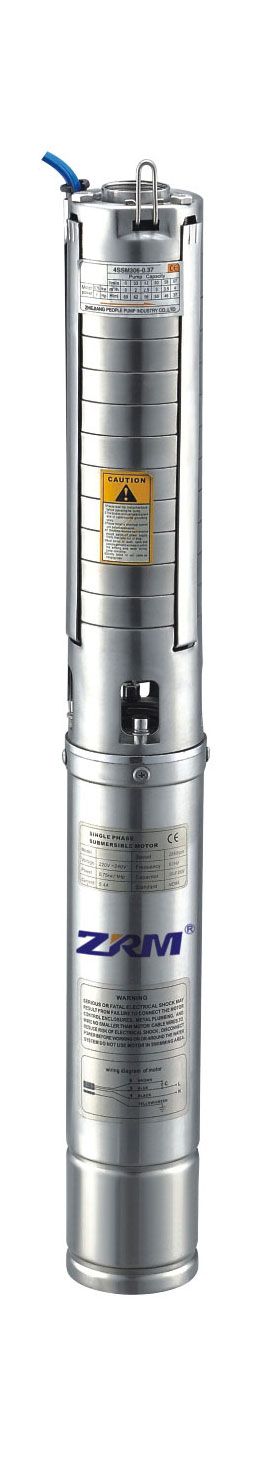

Deep well pump
View More
-Pump/Motor
Qmax:6(m3/h)
Adopted the NEMA standard
Insulation class:B
Protection grade:IP 68
Maximum diameter:φ98mm
Highest temperature of liquid:35℃
Options of different materials sre available.

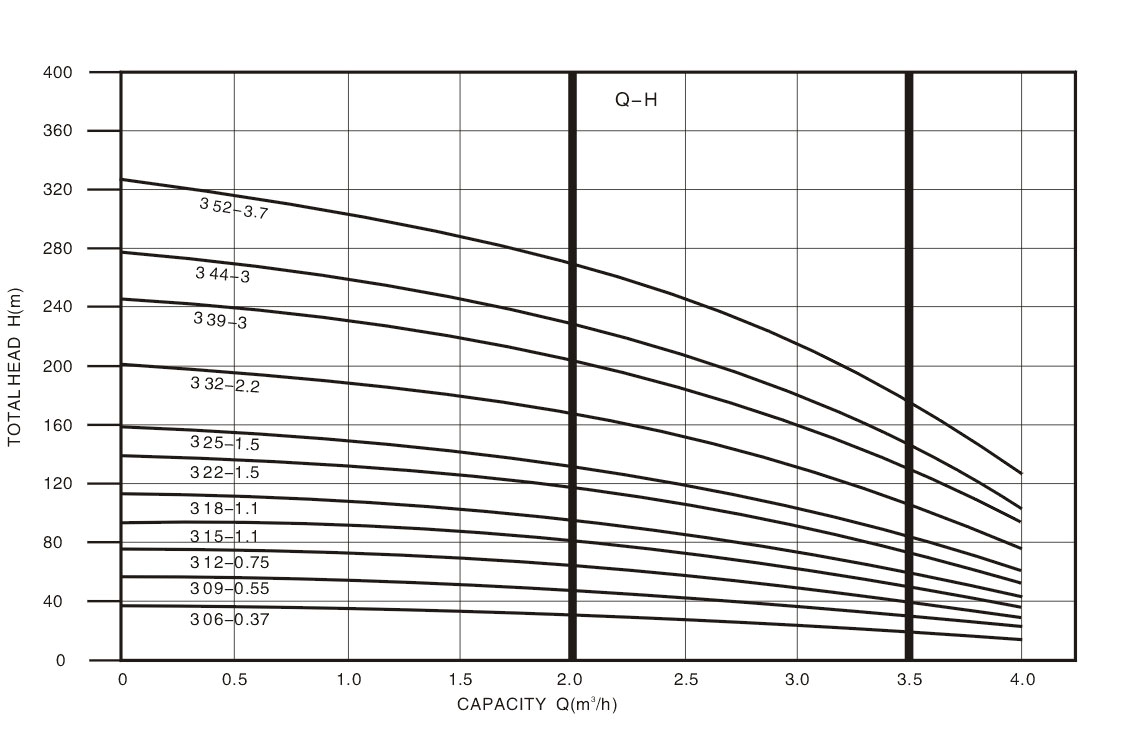

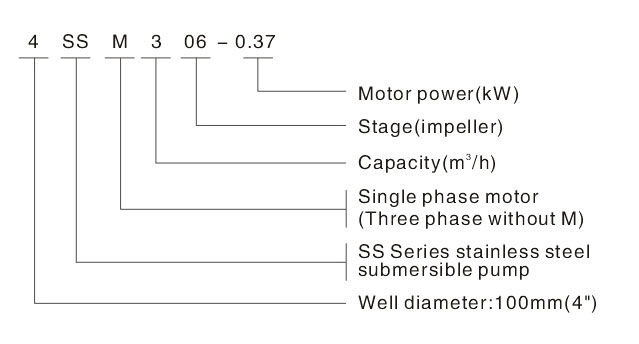

Type | Motor power | Capacity and head | Length | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
single phase 220-240V~Hz50 |
Three phase |
L/min | 0 | 20 | 33 | 50 | 60 | 67 | |||
KW | HP | m3/h | 0 | 1.2 | 2 | 3 | 3.5 | 4 | mm | ||
4SSM3 06-0.37 | 0.37 | 0.5 |
Head (m) |
38 | 34 | 31 | 25 | 19 | 14 | 632 | |
4SSM3 09-0.57 | 0.55 | 0.75 | 57 | 51 | 46 | 37 | 29 | 22 | 730 | ||
4SSM3 12-0.75 | 0.75 | 1 | 76 | 69 | 61 | 49 | 38 | 29 | 813 | ||
4SSM3 15-1.1 | 4SS3 15-1.1 | 1.1 | 1.5 | 95 | 86 | 77 | 62 | 48 | 36 | 901 | |
4SSM3 18-1.1 | 4SS3 18-1.1 | 1.1 | 1.5 | 113 | 103 | 92 | 74 | 57 | 43 | 964 | |
4SSM3 22-1.5 | 4SS3 22-1.5 | 1.5 | 2 | 139 | 126 | 112 | 90 | 70 | 53 | 1073 | |
4SSM3 25-1.5 | 4SS3 25-1.5 | 1.5 | 2 | 158 | 143 | 128 | 103 | 80 | 60 | 1136 | |
4SSM3 32-2.2 | 4SS3 32-2.2 | 2.2 | 3 | 202 | 183 | 163 | 132 | 102 | 77 | 1340 | |
- | 4SS3 39-3 | 3 | 4 | 246 | 223 | 199 | 160 | 124 | 94 | 1499 | |
- | 4SS3 44-3 | 3 | 4 | 277 | 251 | 224 | 181 | 140 | 106 | 1604 | |
- | 4SS3 52-3.7 | 3.7 | 5 | 328 | 297 | 265 | 214 | 165 | 125 | 1787 |
N0. | Description | N0. | Description | N0. | Description | N0. | Description |
---|---|---|---|---|---|---|---|
1 | Clamping spring |
14 | O-ring |
27 | Suction support |
40 | Bearing bush |
2 | End cover |
15 | Oil chamber |
28 | Strainer |
41 | Screw |
3 | Rubber cup |
16 | O-ring | 29 | Screw |
42 | Screw |
4 | Motor body |
17 | Screw |
30 | Screw |
43 | Diffuser |
5 | Screw |
18 | Sand proof sheath |
31 | Coupling |
44 | Guide bush |
6 | Washer |
19 | Washer |
32 | Bearing bush |
45 | Valve seat |
7 | Bearing seat |
20 | Sand proof cap |
33 | Intermediate support |
46 | Check valve |
8 | Stator |
21 | Screw |
34 | Guide bus |
47 | Screw |
9 | Ball bearing |
22 | Oil chamber cover |
35 | Shaft |
48 | Holder pipe |
10 | Rotor |
23 | Cable |
36 | Shaft ring |
49 | Cable cover |
11 | Ball bearing |
24 | Stud |
37 | Diffuser cover |
50 | Pump bod |
12 | Gasket |
25 | washer |
38 | Impeller |
51 | Outlet |
13 | Thrust bearing |
26 | Nut |
39 | Diffuser |

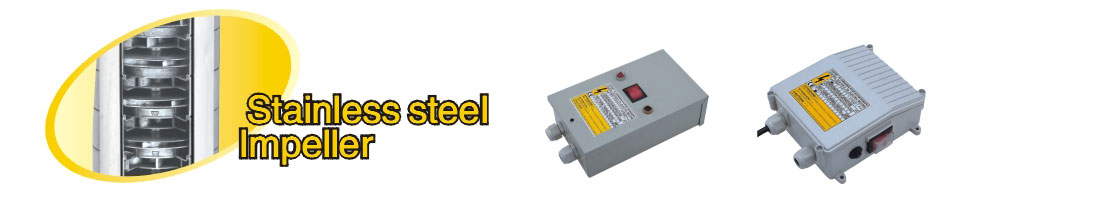

52 | Control box |
