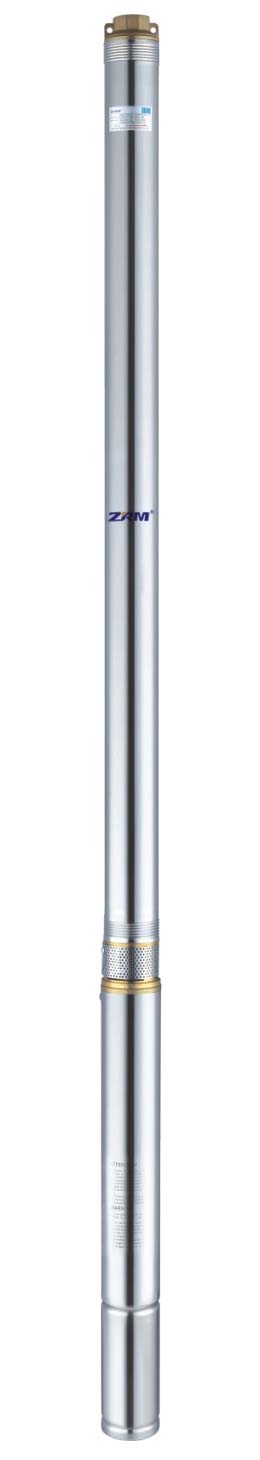

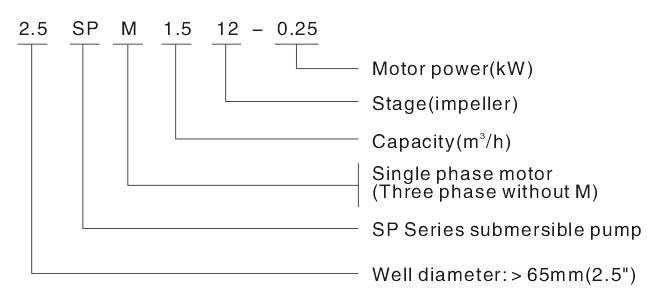

2.5SPM1.5

-Pump/Motor: Q_max:2.6(m³/h); Insulation class:B; Protection grade:IP 68; Maximum diameter:φ65mm; Highest temperature of liquid:35℃; Options of different materials sre available.

rpm:2850Outlet:G1″~1¼″

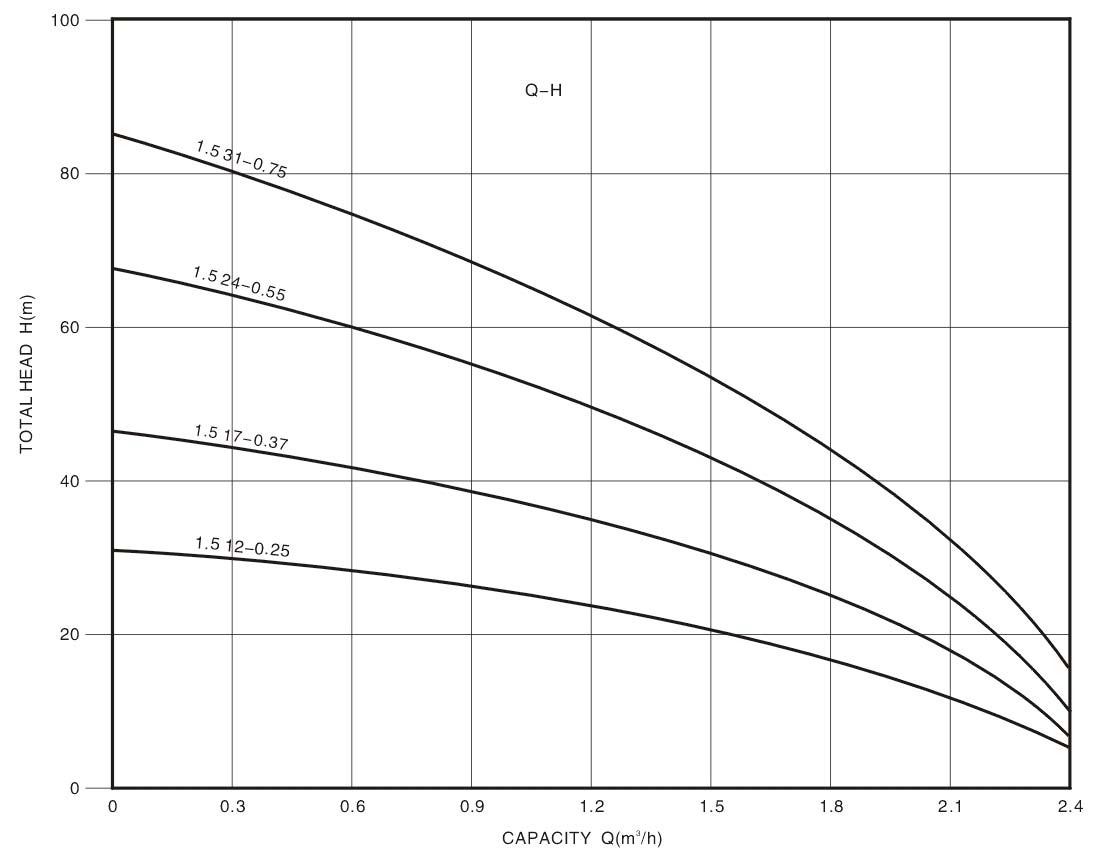

Type single phase 220-240V~Hz50	Motor power		Capacity and head										Length
	Motor power		L/min	0	5	10	15	20	25	30	35	40	Length
	KW	HP	m³/h	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	mm
2.5SPM1.5 12-0.25	0.25	0.33	Head (m)	33	31	29	27	25	21	18	13	6	889
2.5SPM1.5 17-0.37	0.37	0.5		47	44	41	38	35	30	26	19	8	1062
2.5SPM1.5 17-0.37	0.55	0.75		68	62	58	54	50	43	36	26	12	1322
2.5SPM1.5 17-0.37	0.75	1		85	80	75	70	64	55	47	34	15	1570

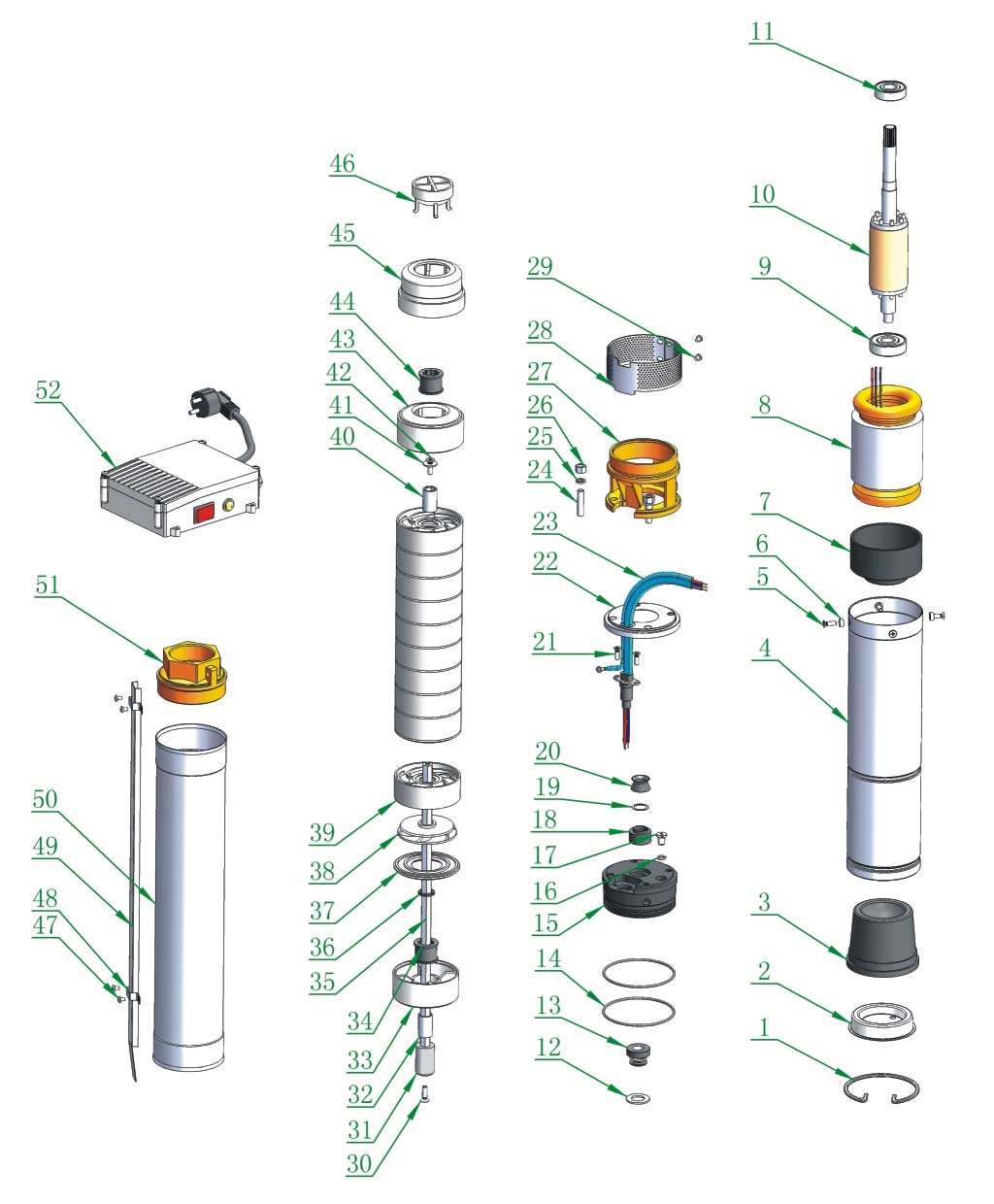

N0.	Description	N0.	Description	N0.	Description	N0.	Description
1	Clamping spring	14	O-ring	27	Suction support	40	Bearing bush
2	End cover	15	Oil chamber	28	Strainer	41	Screw
3	Rubber cup	16	O-ring	29	Screw	42	Screw
4	Motor body	17	Screw	30	Screw	43	Diffuser
5	Screw	18	Sand proof sheath	31	Coupling	44	Guide bush
6	Washer	19	Washer	32	Bearing bush	45	Valve seat
7	Bearing seat	20	Sand proof cap	33	Intermediate support	46	Check valve
8	Stator	21	Screw	34	Guide bus	47	Screw
9	Ball bearing	22	Oil chamber cover	35	Shaft	48	Holder pipe
10	Rotor	23	Cable	36	Shaft ring	49	Cable cover
11	Ball bearing	24	Stud	37	Diffuser cover	50	Pump bod
12	Gasket	25	washer	38	Impeller	51	Outlet
13	Thrust bearing	26	Nut	39	Diffuser	52	Control box
