Deep well pump
View More

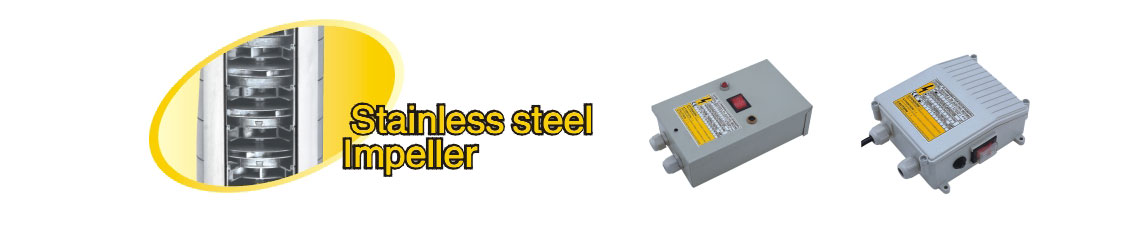

-Pump/Motor
Qmax:6.8(m3/h)
Adopted the NEMA standard
Insulation class:B
Protection grade:IP 68
Maximum diameter:φ98mm
Highest temperature of liquid:35℃
Options of different materials sre available.

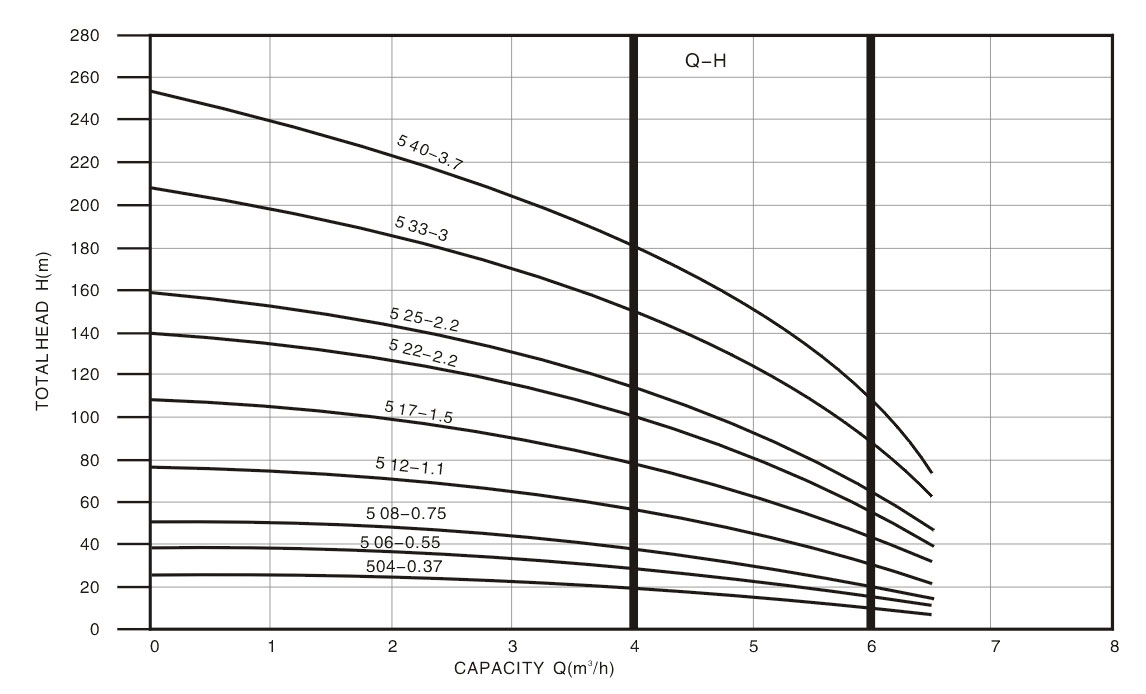

Type | Motor power | Capacity and head | Length | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
single phase 220-240V~Hz50 |
Three phase |
L/min | 0 | 50 | 67 | 83 | 100 | 108 | |||
KW | HP | m3/h | 0 | 3 | 4 | 5 | 6 | 6.5 | mm | ||
4SSM5 04-0.37 | 0.37 | 0.5 |
Head (m) |
25 | 20 | 18 | 15 | 10 | 8 | 594 | |
4SSM5 06-0.55 | 0.55 | 0.75 | 38 | 30 | 27 | 22 | 15 | 11 | 636 | ||
4SSM5 08-0.75 | 0.75 | 1 | 50 | 40 | 36 | 30 | 20 | 15 | 703 | ||
4SSM5 12-1.1 | 4SS5 12-1.1 | 1.1 | 1.5 | 76 | 59 | 54 | 45 | 30 | 23 | 807 | |
4SSM5 17-1.5 | 4SS5 17-1.5 | 1.5 | 2 | 107 | 84 | 76 | 64 | 43 | 32 | 937 | |
4SSM5 22-2.2 | 4SS5 22-2.2 | 2.2 | 3 | 139 | 109 | 99 | 82 | 56 | 41 | 1042 | |
4SSM5 25-2.2 | 4SS5 25-2.2 | 2.2 | 3 | 158 | 124 | 112 | 94 | 64 | 47 | 840 | |
- | 4SS5 33-3 | 3 | 4 | 208 | 163 | 148 | 123 | 84 | 62 | 1308 | |
- | 4SS5 40-3.7 | 3.7 | 5 | 252 | 198 | 179 | 150 | 102 | 75 | 1455 |
N0. | Description | N0. | Description | N0. | Description | N0. | Description |
---|---|---|---|---|---|---|---|
1 | Clamping spring |
14 | O-ring |
27 | Suction support |
40 | Bearing bush |
2 | End cover |
15 | Oil chamber |
28 | Strainer |
41 | Screw |
3 | Rubber cup |
16 | O-ring | 29 | Screw |
42 | Screw |
4 | Motor body |
17 | Screw |
30 | Screw |
43 | Diffuser |
5 | Screw |
18 | Sand proof sheath |
31 | Coupling |
44 | Guide bush |
6 | Washer |
19 | Washer |
32 | Bearing bush |
45 | Valve seat |
7 | Bearing seat |
20 | Sand proof cap |
33 | Intermediate support |
46 | Check valve |
8 | Stator |
21 | Screw |
34 | Guide bus |
47 | Screw |
9 | Ball bearing |
22 | Oil chamber cover |
35 | Shaft |
48 | Holder pipe |
10 | Rotor |
23 | Cable |
36 | Shaft ring |
49 | Cable cover |
11 | Ball bearing |
24 | Stud |
37 | Diffuser cover |
50 | Pump bod |
12 | Gasket |
25 | washer |
38 | Impeller |
51 | Outlet |
13 | Thrust bearing |
26 | Nut |
39 | Diffuser |
52 | Control box |
