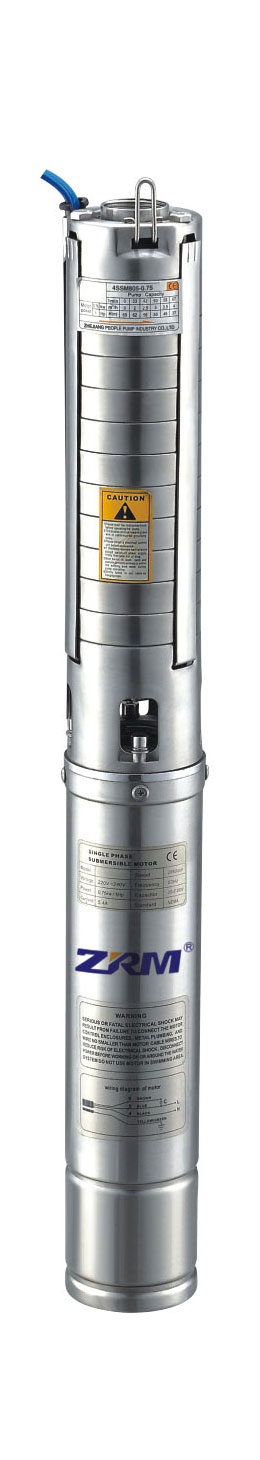

Deep well pump
View More
-Pump/Motor
Qmax:14.5(m3/h)
Adopted the NEMA standard
Insulation class:B
Protection grade:IP 68
Maximum diameter:φ98mm
Highest temperature of liquid:35℃
Options of different materials sre available.

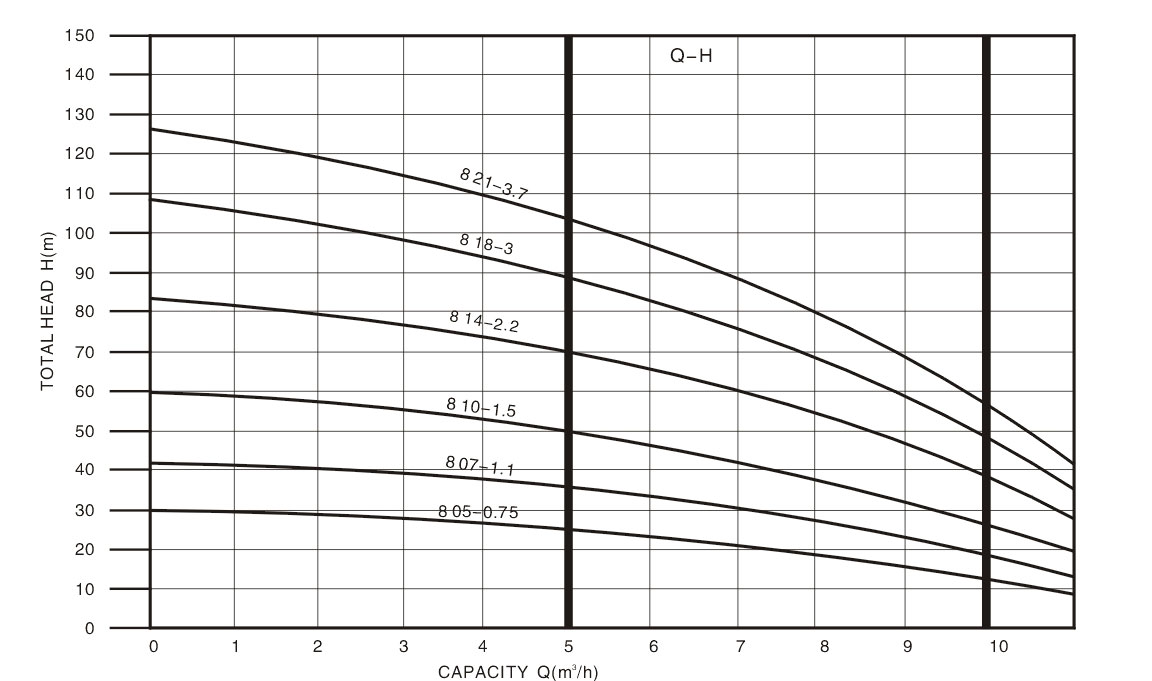

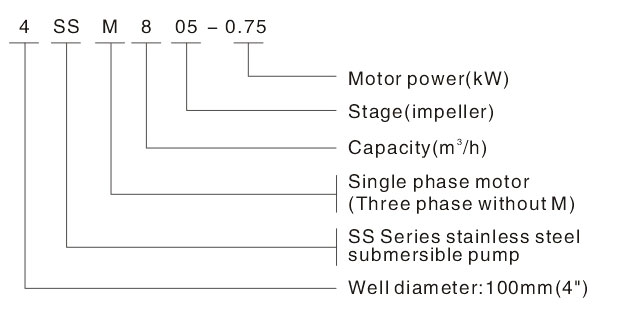

Type | Motor power | Capacity and head | Length | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
single phase 220-240V~Hz50 |
Three phase |
L/min | 0 | 50 | 83 | 133 | 167 | 183 | |||
KW | HP | m3/h | 0 | 3 | 5 | 8 | 10 | 11 | mm | ||
4SSM8 05-0.75 | 0.75 | 1 |
Head (m) |
30 | 26 | 24 | 19 | 14 | 10 | 754 | |
4SSM8 07-1.1 | 4SS8 07-1.1 | 1.1 | 1.5 | 42 | 36 | 33 | 27 | 20 | 14 | 838 | |
4SSM8 10-1.5 | 4SS8 10-1.5 | 1.5 | 2 | 60 | 52 | 47 | 38 | 28 | 21 | 989 | |
4SSM8 14-2.2 | 4SS8 14-2.2 | 2.2 | 3 | 84 | 72 | 66 | 54 | 40 | 29 | 1177 | |
- | 4SS8 18-3 | 3 | 4 | 108 | 93 | 85 | 69 | 51 | 37 | 1370 | |
- | 4SS8 21-3.7 | 3.7 | 5 | 126 | 108 | 100 | 80 | 59 | 43 | 1496 |
N0. | Description | N0. | Description | N0. | Description | N0. | Description |
---|---|---|---|---|---|---|---|
1 | Clamping spring |
14 | O-ring |
27 | Suction support |
40 | Bearing bush |
2 | End cover |
15 | Oil chamber |
28 | Strainer |
41 | Screw |
3 | Rubber cup |
16 | O-ring | 29 | Screw |
42 | Screw |
4 | Motor body |
17 | Screw |
30 | Screw |
43 | Diffuser |
5 | Screw |
18 | Sand proof sheath |
31 | Coupling |
44 | Guide bush |
6 | Washer |
19 | Washer |
32 | Bearing bush |
45 | Valve seat |
7 | Bearing seat |
20 | Sand proof cap |
33 | Intermediate support |
46 | Check valve |
8 | Stator |
21 | Screw |
34 | Guide bus |
47 | Screw |
9 | Ball bearing |
22 | Oil chamber cover |
35 | Shaft |
48 | Holder pipe |
10 | Rotor |
23 | Cable |
36 | Shaft ring |
49 | Cable cover |
11 | Ball bearing |
24 | Stud |
37 | Diffuser cover |
50 | Pump bod |
12 | Gasket |
25 | washer |
38 | Impeller |
51 | Outlet |
13 | Thrust bearing |
26 | Nut |
39 | Diffuser |

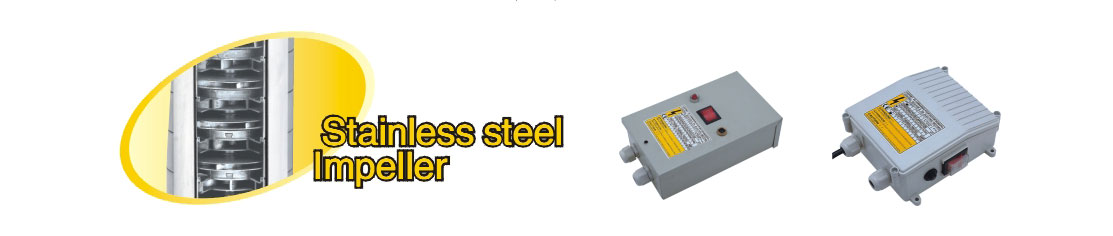

52 | Control box |
