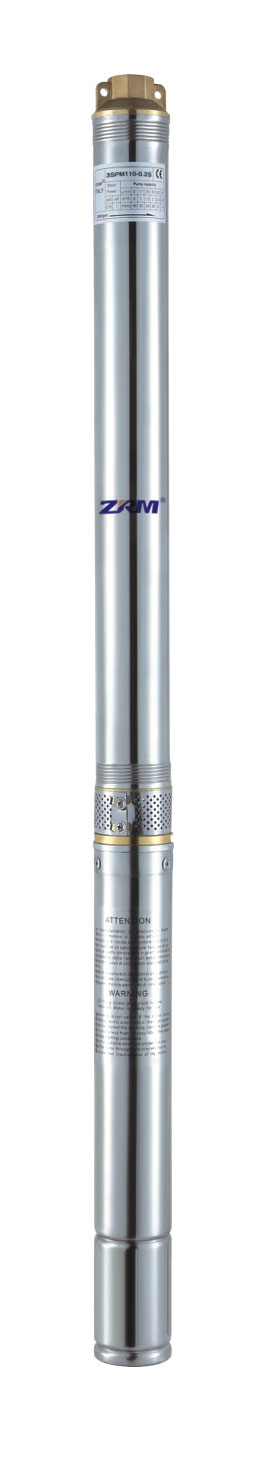

Deep well pump
View More

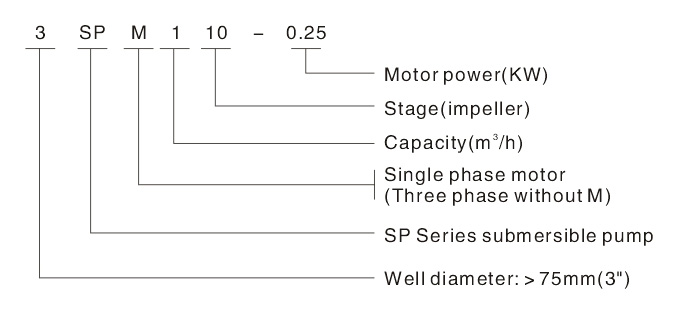

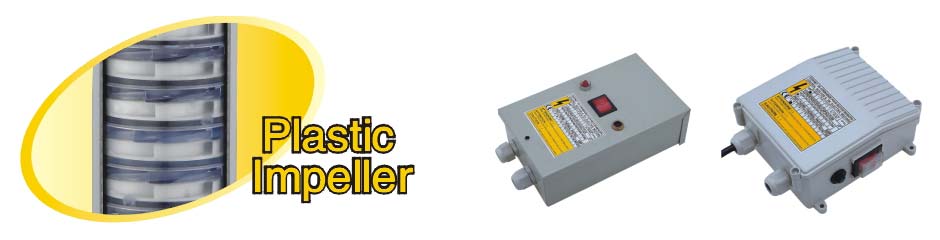

Type single phase 220-240V~Hz50 |

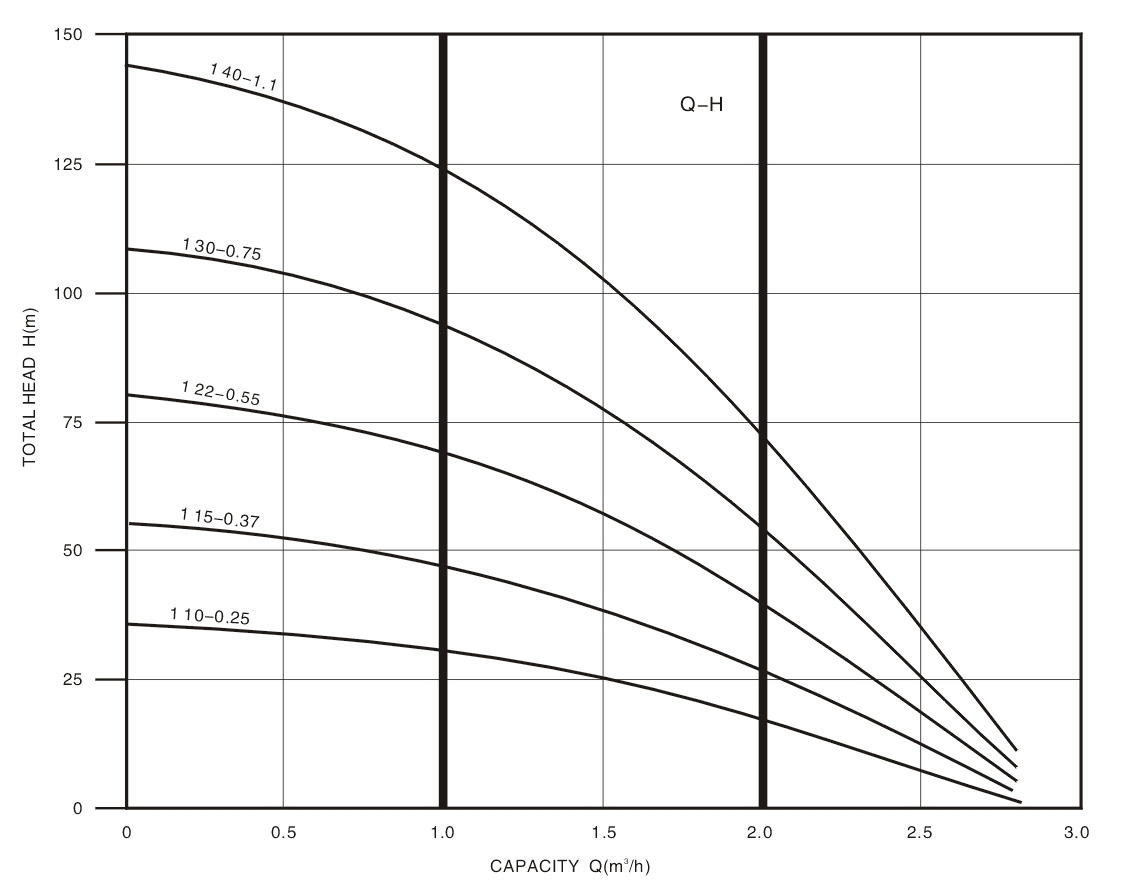

Motor power | Capacity and head | Length | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
L/min | 0 | 8 | 17 | 25 | 30 | 33 | 42 | 47 | ||||
KW | HP | m3/h | 0 | 0.5 | 1 | 1.5 | 1.8 | 2 | 2.5 | 2.8 | mm | |
3SPM1 10-0.25 | 0.25 | 0.33 | Head (m) |
38 | 36 | 33 | 28 | 23 | 20 | 10 | 4 | 766 |
3SPM1 15-0.37 | 0.37 | 0.5 | 55 | 54 | 50 | 43 | 38 | 32 | 27 | 15 | 932 | |
3SPM1 22-0.55 | 0.55 | 0.75 | 83 | 82 | 80 | 69 | 61 | 52 | 37 | 25 | 1177 | |
3SPM1 30-0.75 | 0.75 | 1 | 111 | 109 | 106 | 91 | 81 | 67 | 50 | 29 | 1411 | |
3SPM1 40-1.1 | 1.1 | 1.5 | 144 | 142 | 136 | 115 | 100 | 82 | 57 | 31 | 1722 |
N0. | Description | N0. | Description | N0. | Description | N0. | Description |
---|---|---|---|---|---|---|---|
1 | Clamping spring |
14 | O-ring |
27 | Suction support |
40 | Bearing bush |
2 | End cover |
15 | Oil chamber |
28 | Strainer |
41 | Screw |
3 | Rubber cup |
16 | O-ring | 29 | Screw |
42 | Screw |
4 | Motor body |
17 | Screw |
30 | Screw |
43 | Diffuser |
5 | Screw |
18 | Sand proof sheath |
31 | Coupling |
44 | Guide bush |
6 | Washer |
19 | Washer |
32 | Bearing bush |
45 | Valve seat |
7 | Bearing seat |
20 | Sand proof cap |
33 | Intermediate support |
46 | Check valve |
8 | Stator |
21 | Screw |
34 | Guide bus |
47 | Screw |
9 | Ball bearing |
22 | Oil chamber cover |
35 | Shaft |
48 | Holder pipe |
10 | Rotor |
23 | Cable |
36 | Shaft ring |
49 | Cable cover |
11 | Ball bearing |
24 | Stud |
37 | Diffuser cover |
50 | Pump bod |
12 | Gasket |
25 | washer |
38 | Impeller |
51 | Outlet |
13 | Thrust bearing |
26 | Nut |
39 | Diffuser |
52 | Control box |
