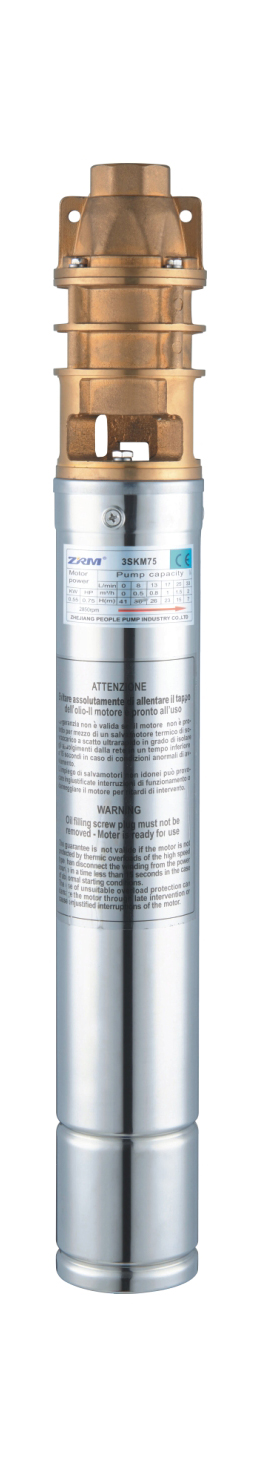

Deep well pump
View More

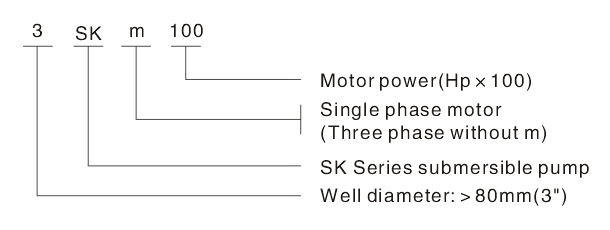

Type | Motor power | Capacity and head | Length | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Single phase 220-240V~ Hz50 |
Three phase 380-415V~ Hz50 |

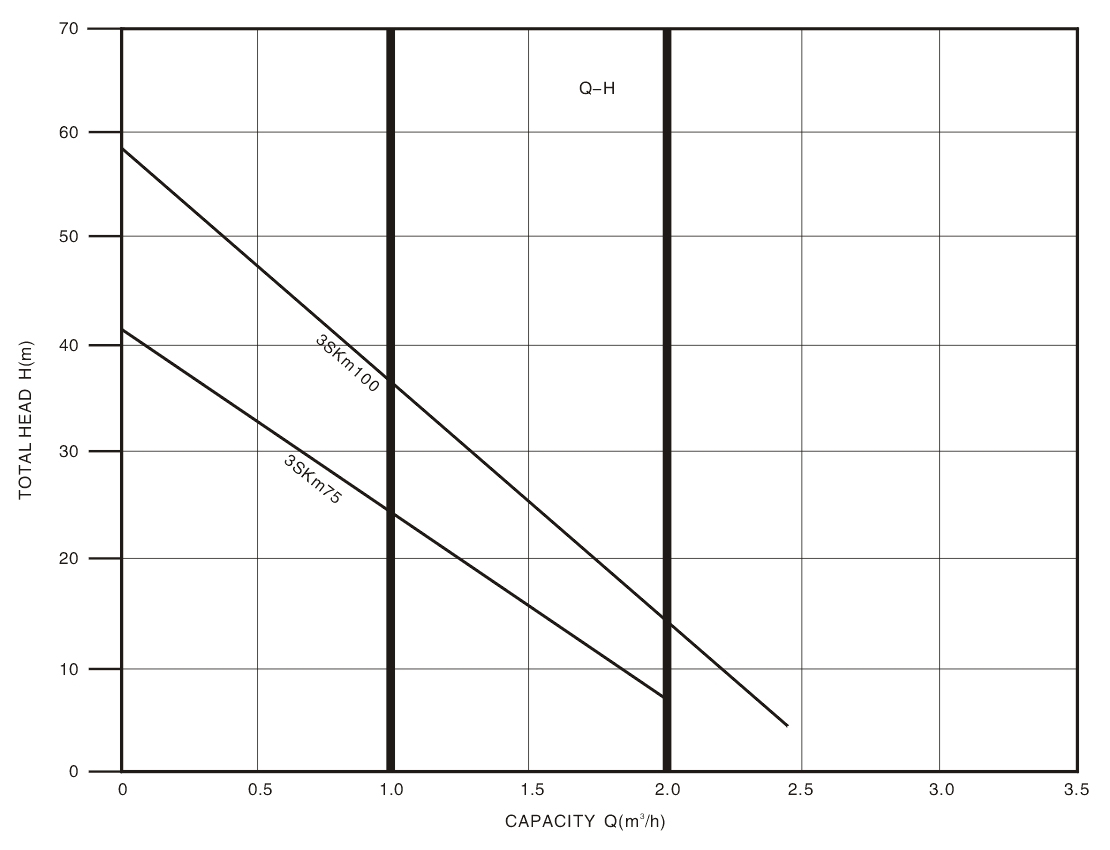

L/min | 0 | 0.5 | 0.8 | 1 | 1.5 | 2 | 2.4 | |||
Kw | Hp | m3/h | 0 | 8 | 13 | 17 | 25 | 33 | 40 | mm | ||
3SKm 75 | 3SK 75 | 0.55 | 0.75 | Head (m) |
41 | 30 | 26 | 23 | 15 | 7 | - | 478 |
3SKm 100 | 3SK 100 | 0.75 | 1 | 58 | 45 | 40 | 36 | 25 | 12 | 4 | 535 |

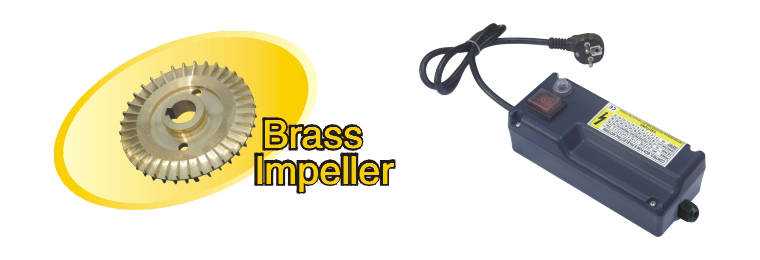

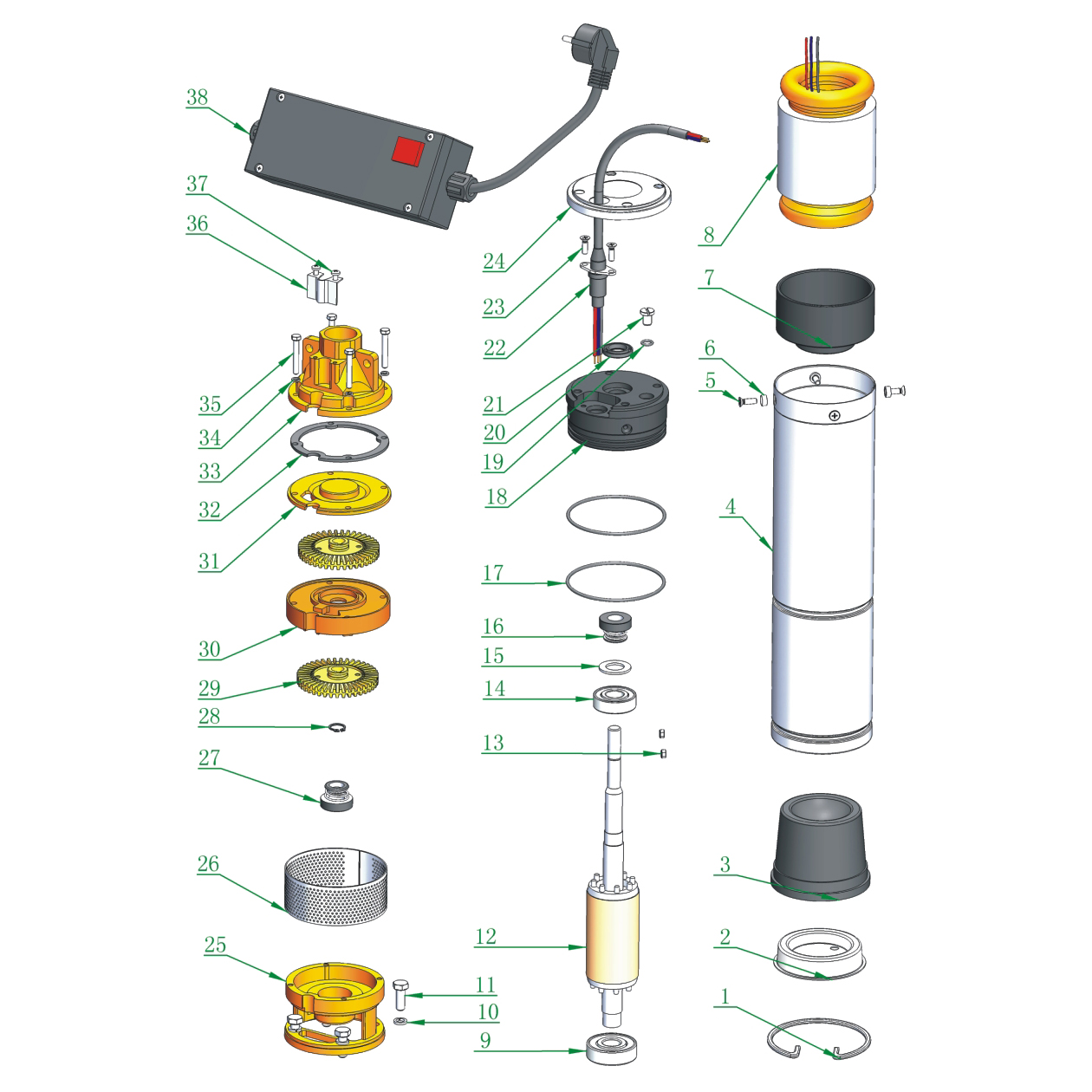

N0. | Description | N0. | Description | N0. | Description | N0. | Description |
---|---|---|---|---|---|---|---|
1 | Clamping spring | 11 | Screw | 21 | Screw | 31 | Pump cover |
2 | End cover | 12 | Rotor | 22 | Cable sheld sleeve | 32 | Gasket |
3 | Rubber cup | 13 | Key | 23 | Screw | 33 | Discharge shamber |
4 | Motor case | 14 | Bearing | 24 | Oil chamber cover | 34 | Dutlet |
5 | Screw | 15 | Plain washer | 25 | Suction support | 35 | Screw |
6 | Locking ring | 16 | Mechanical seal | 26 | Strainer | 36 | Cable cover |
7 | Bearing seat | 17 | O-ring | 27 | Mechanical seal | 37 | Screw |
8 | Stator | 18 | Oil chamber | 28 | Circlip | 38 | Controller |
9 | Bearing | 19 | O-ring | 29 | Impeller | 39 | |
10 | O-ring | 20 | Oil seal | 30 | Pump body | 40 |
