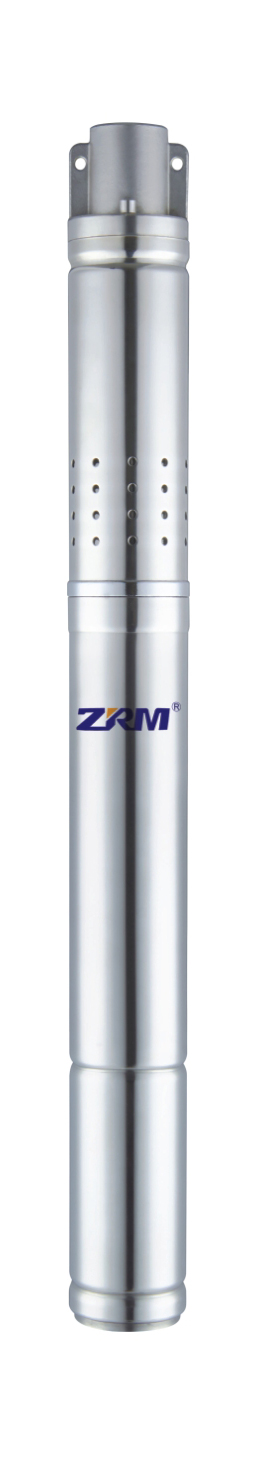

2/3QGD

-Pump/Motor: Insulation class: F; Protection class: IP 68; Maximum diameter: φ 51mm; Highest temperature of liquid: 35℃; Option of different materials are available.; Insulation class: B; Protection class: IP 68; Maximum diameter: φ 75mm; Highest temperature of liquid: 35℃; Option of different materials are available.

rpm:2900Outlet:G1″

Type		Motor power		Capacity Q max	Head H max	Outlet	Spead	Length
Single phase 220-240V~ Hz50	Three phase 380-415V~ Hz50	Motor power		Capacity Q max	Head H max	Outlet	Spead	Length
Single phase 220-240V~ Hz50	Three phase 380-415V~ Hz50	Kw	Hp	m³/h	m	inch	r/min	mm
2QGD 1-50-0.37	2QG 1-50-0.37	0.37	0.5	1	50	3/4"	2850	637
3QGD 1.2-50-0.37	3QG 1.2-50-0.37	0.37	0.5	1.8	70	1"	2850	560
3QGD 1.2-70-0.55	3QG 1.2-70-0.55	0.55	0.75	1.8	80	1"	2850	630

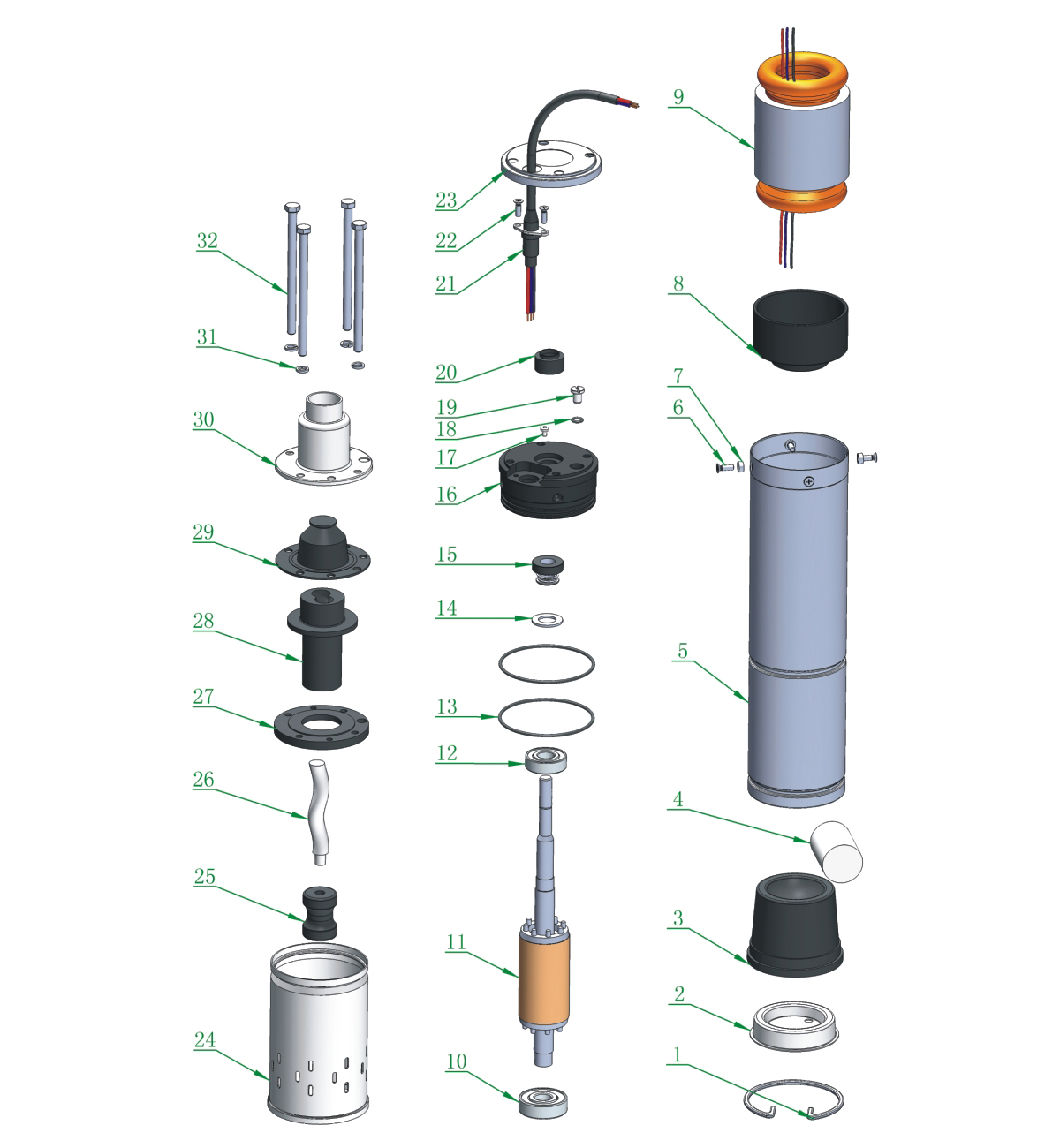

N0.	Description	N0.	Description	N0.	Description	N0.	Description
1	Clamping spring	9	Stator	17	Screw	25	Cou pling
2	End cover	10	Bearing	18	Plain washer	26	Screw impeller
3	Rubber cup	11	Rotor	19	Air screw	27	Impeller circlip
4	Capacitor	12	Bearing	20	Sand proof cap	28	Screw impeller sheath
5	Motor case	13	O-ring	21	Cable sheath	29	Check valve
6	Screw	14	Plain washer	22	Screw	30	Outlet
7	Locking ring	15	Mechanical seal	23	Oil chamber cover	31	Plain washer
8	Bearing seat	16	Oil chamber	24	Inletsection	32	Screw
