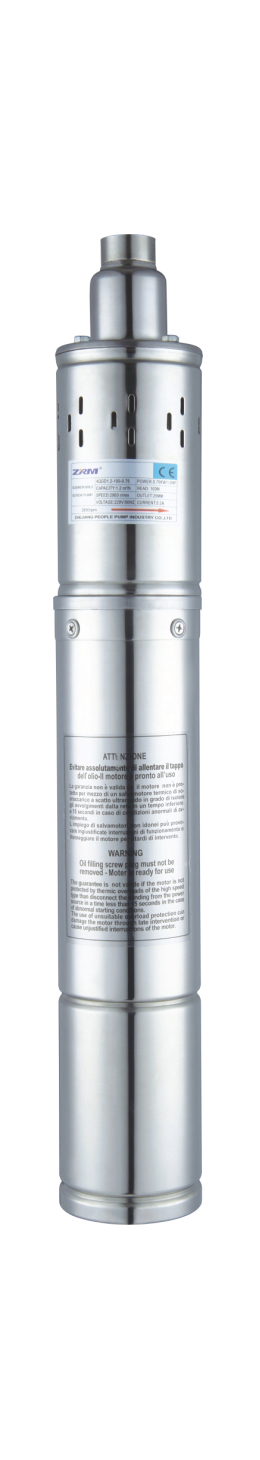

Deep well pump
View More

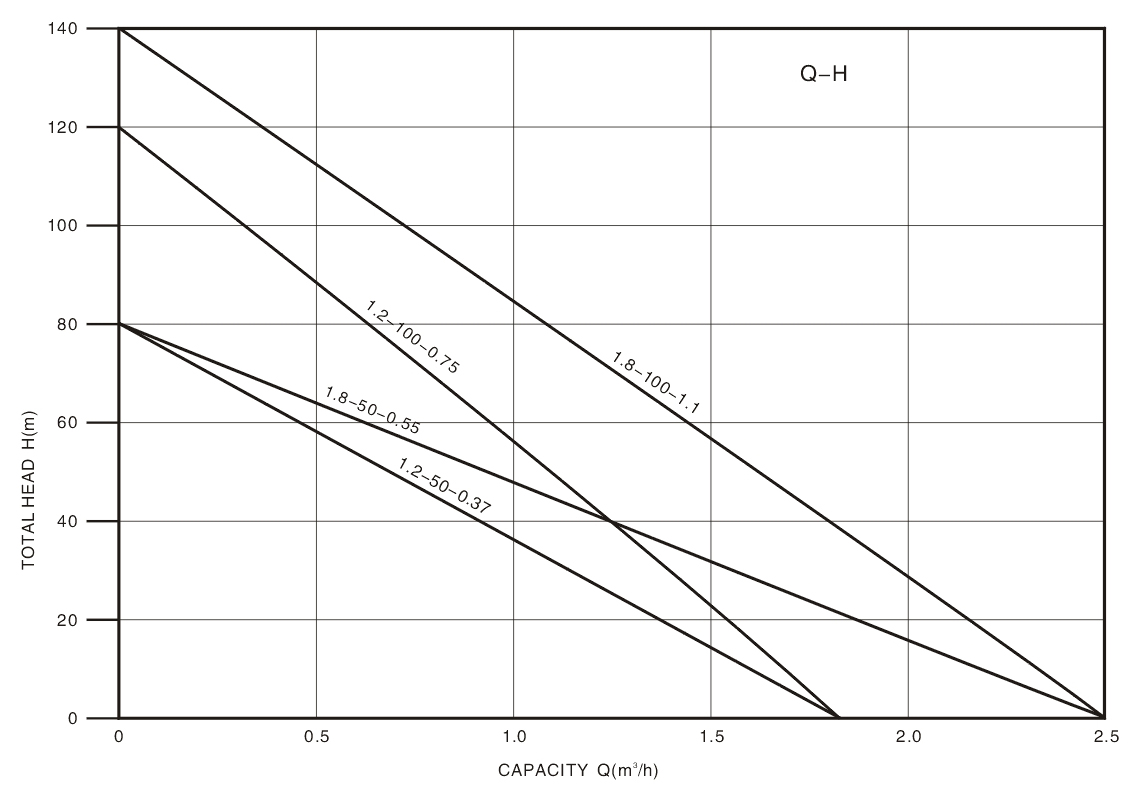

| Type | Motor power | Capacity Q max |
Head H max |
Outlet | Spead | Length | ||
|---|---|---|---|---|---|---|---|---|
| Single phase 220-240V~ Hz50 |
Three phase 380-415V~ Hz50 |
|||||||
| Kw | Hp | m3/h | m | inch | r/min | mm | ||

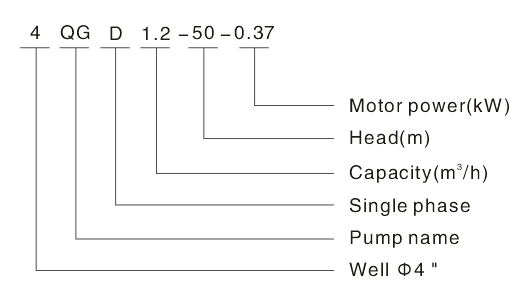

| 4QGD 1.2-50-0.37 | 4QG 1.2-50-0.37 | 0.37 | 0.5 | 1.8 | 80 | 1" | 2850 | 540 |
| 4QGD 1.8-50-0.55 | 4QG 1.8-50-0.55 | 0.55 | 0.75 | 2.5 | 80 | 1" | 2850 | 560 |
| 4QGD 1.2-100-0.75 | 4QG 1.2-100-0.75 | 0.75 | 1 | 1.8 | 120 | 1" | 2850 | 620 |
| 4QGD 1.8-100-1.1 | 4QG 1.8-100-1.1 | 1.1 | 1.55 | 2.5 | 140 | 1" | 2850 | 680 |
| N0. | Description | N0. | Description | N0. | Description | N0. | Description |
|---|---|---|---|---|---|---|---|
| 1 | Clamping spring | 9 | Stator | 17 | Screw | 25 | Cou pling |
| 2 | End cover | 10 | Bearing | 18 | Plain washer | 26 | Screw impeller |
| 3 | Rubber cup | 11 | Rotor | 19 | Air screw | 27 | Impeller circlip |
| 4 | Capacitor | 12 | Bearing | 20 | Sand proof cap | 28 | Screw impeller sheath |
| 5 | Motor case | 13 | O-ring | 21 | Cable sheath | 29 | Check valve |
| 6 | Screw | 14 | Plain washer | 22 | Screw | 30 | Outlet |
| 7 | Locking ring | 15 | Mechanical seal | 23 | Oil chamber cover | 31 | Plain washer |
| 8 | Bearing seat | 16 | Oil chamber | 24 | Inletsection | 32 | Screw |
