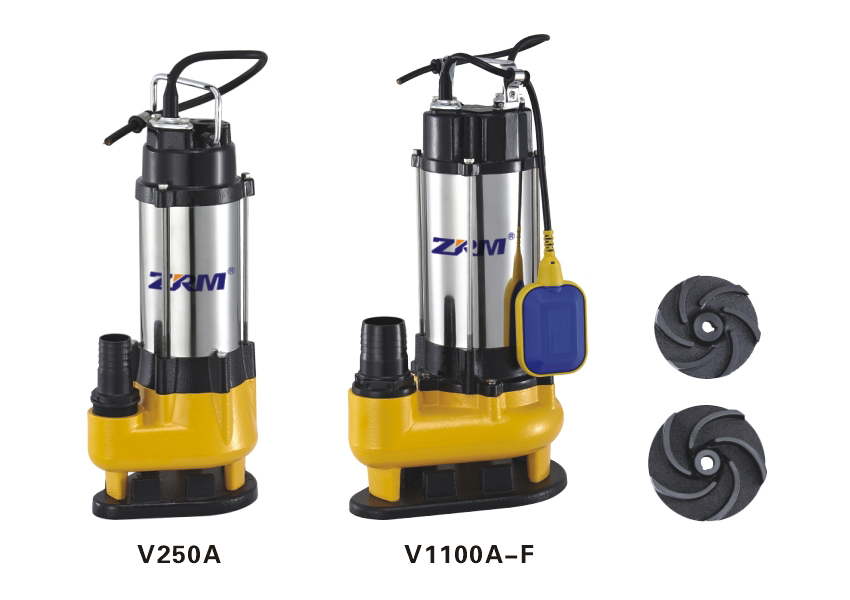

Deep well pump
View More
-Pump
Max.immersion depth: 5 m
Max.liquid temperature: +40 ℃
Liquid PH value: 4-10
Liquid kinematic viscosity: 7×10-7~23×10-6 m2/s
Max.liquid density: 1.2×103 kg/m3
-Motor
Copper winding
Built-in thermal protector
Stainless steel welded shaft
Insulation class: B
Protection class: IP68

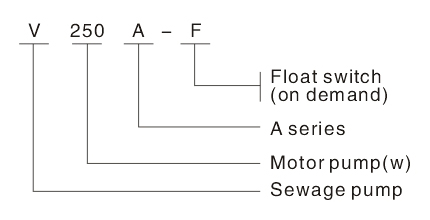

| MODEL | POWER | AMPERE | QUTLET (inch) | VOLTAGE (V/HZ) | MAX.FLOW (L/MIN) | MAX.HEAD (M) | G.W. (Kg) | DIMENSIONS. (mm) | |
|---|---|---|---|---|---|---|---|---|---|
| Kw | Hp | ||||||||
| V250A-F | 0.25 | 0.4 | 1.6 | 1″,1.2″ | 220/50 | 75 | 8 | 10.5 | 440×160×205 |
| V370A-F | 0.37 | 0.5 | 1.8 | 1″,1.2″ | 220/50 | 80 | 9 | 11 | 460×160×205 |
| V550A-F | 0.55 | 0.75 | 3.4 | 2″ | 220/50 | 240 | 10 | 16.5 | 445×185×240 |
| V750A-F | 0.75 | 1.0 | 4 | 2″ | 220/50 | 250 | 12 | 17.94 | 460×185×240 |
| V1100A-F | 1.1 | 1.5 | 5 | 2″ | 220/50 | 310 | 13 | 21.65 | 495×195×280 |
| V1500A-F | 1.5 | 2.0 | 8 | 2″ | 220/50 | 420 | 16 | 21.8 | 515×195×280 |

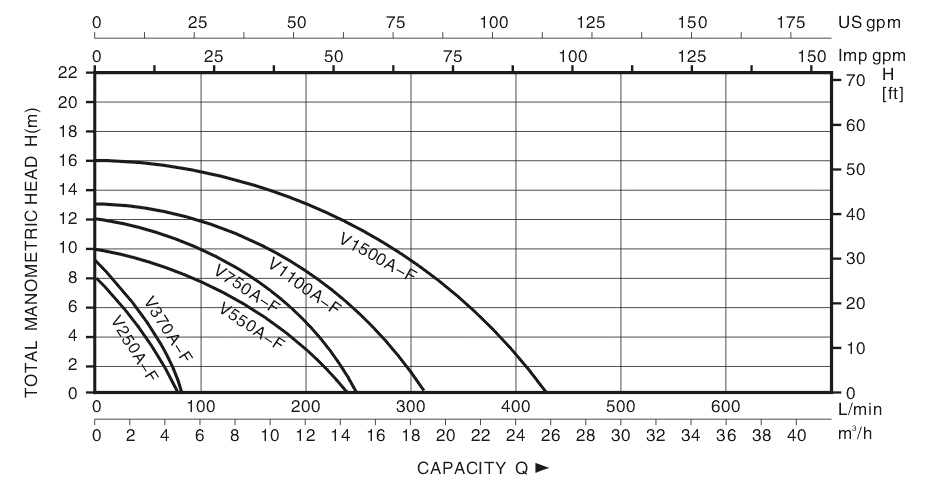

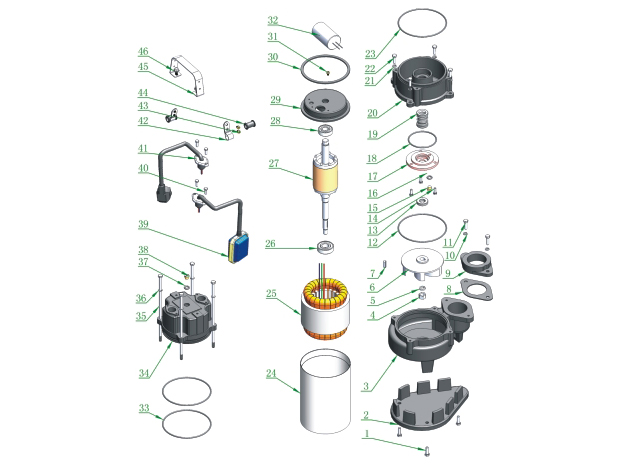

| N0. | Description | N0. | Description | N0. | Description |
|---|---|---|---|---|---|
| 1 | Screw | 18 | O-ring | 35 | Hexagon screw |
| 2 | Pump foot | 19 | Mechanical seal | 36 | Washer |
| 3 | Pump base | 20 | Oil chamber | 37 | O-ring |
| 4 | Impeller nut | 21 | Plain washer | 38 | Screw |
| 5 | Plain washer | 22 | Screw | 39 | Float switch |
| 6 | Impeller | 23 | O-ring | 40 | Screw |
| 7 | Key | 24 | Pump body | 41 | Sheath |
| 8 | Flange washer | 25 | Stator | 42 | Cable sheath |
| 9 | Flange | 26 | Bearing | 43 | Screw |
| 10 | Plain washer | 27 | Rotor | 44 | Rubber sheath |
| 11 | Screw | 28 | Bearing | 45 | Screw |
| 12 | O-ring | 29 | Upper lid | 46 | Screw |
| 13 | Oil seal | 30 | Rubber washer | 47 | |
| 14 | Screw | 31 | Screw | 48 | |
| 15 | Screw | 32 | Capacitor | 49 | |
| 16 | Washer | 33 | O-ring | 50 | |
| 17 | Oil chamber cover | 34 | Upper cover | 51 |
