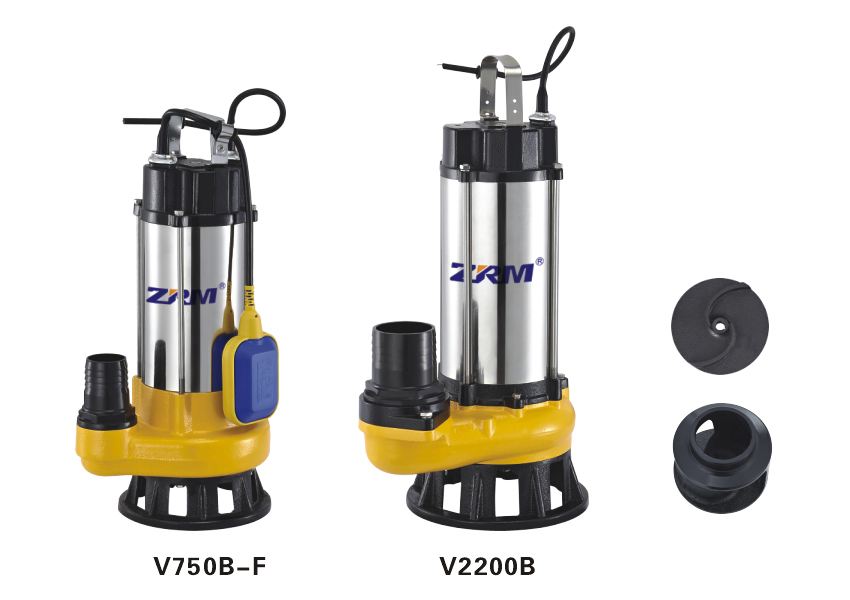

Deep well pump
View More
-Pump
Max.immersion depth: 5 m
Max.liquid temperature: +40 ℃
Liquid PH value: 4-10
Liquid kinematic viscosity: 7×10-7~23×10-6 m2/s
Max.liquid density: 1.2×103 kg/m3
-Motor
Copper winding
Built-in thermal protector
Stainless steel welded shaft
Insulation class: B
Protection class: IP68

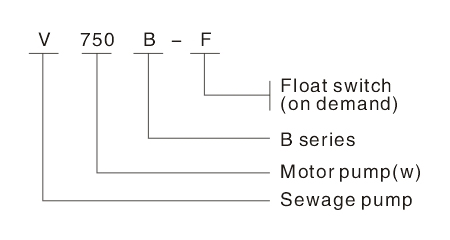

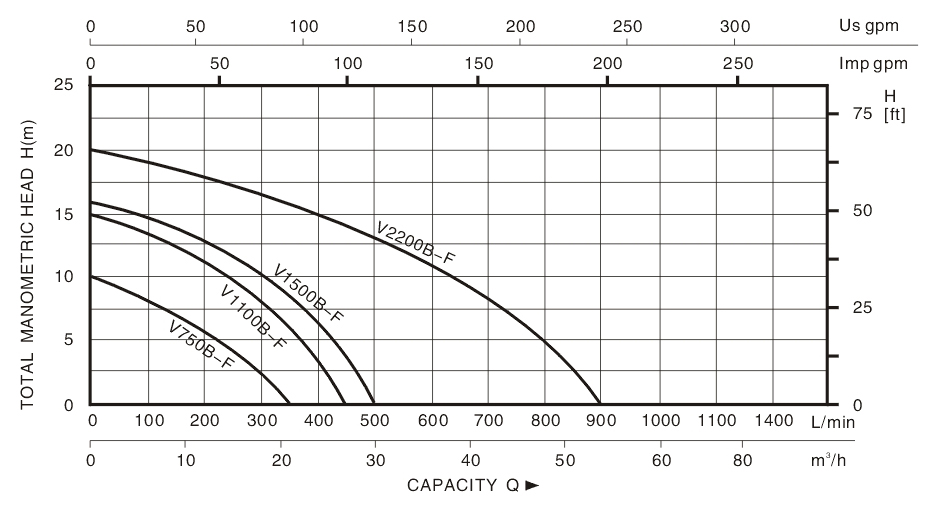

| MODEL | POWER | AMPERE | QUTLET (inch) | VOLTAGE (V/HZ) | MAX.FLOW (L/MIN) | MAX.HEAD (M) | G.W. (Kg) | DIMENSIONS. (mm) | |
|---|---|---|---|---|---|---|---|---|---|
| Kw | Hp | ||||||||
| V750B-F | 0.75 | 1.0 | 3.2 | 2″ | 220/50 | 350 | 10 | 16.5 | 460×225×215 |
| V1100B-F | 1.1 | 1.5 | 5.7 | 2″ | 220/50 | 450 | 15 | 17.03 | 485×225×215 |
| V1500B-F | 1.5 | 2.0 | 7.2 | 2″ | 220/50 | 500 | 16 | 19.8 | 510×225×215 |
| V2200B-F | 2.2 | 3.0 | 11 | 3″ | 220/50 | 900 | 20 | 31.2 | 540×320×230 |
| N0. | Description | N0. | Description | N0. | Description |
|---|---|---|---|---|---|
| 1 | Screw | 18 | Stator | 35 | Screw |
| 2 | Pump foot | 19 | Bearing | 36 | Cable and plug |
| 3 | O-ring | 20 | Float switch | 37 | Cable sheath |
| 4 | Impeller nut | 21 | Rotor | 38 | Handle |
| 5 | Plain washer | 22 | Screw | 39 | Screw |
| 6 | Impeller | 23 | Bearing | 40 | |
| 7 | Key | 24 | Motor rear cover | 41 | |
| 8 | Oil seal | 25 | Screw | 42 | |
| 9 | Screw | 26 | Rubber sheath | 43 | |
| 10 | Washer | 27 | Rubber washer | 44 | |
| 11 | Screw | 28 | Screw | 45 | |
| 12 | Oil chamber cover | 29 | Capacitor | 46 | |
| 13 | O-ring | 30 | O-ring | 47 | |
| 14 | Mechanical seal | 31 | Screw | 48 | |
| 15 | Pump base | 32 | Top cover | 49 | |
| 16 | O-ring | 33 | Washer | 50 | |
| 17 | Motor case | 34 | O-ring | 51 |
