Deep well pump
View More
-Pump
Max.immersion depth: 5 m
Max.liquid temperature: +40 ℃
Liquid PH value: 4-10
Liquid kinematic viscosity: 7×10-7~23×10-6 m2/s
Max.liquid density: 1.2×103 kg/m3
-Motor
Copper winding
Built-in thermal protector
Stainless steel welded shaft
Insulation class: B
Protection class: IP68

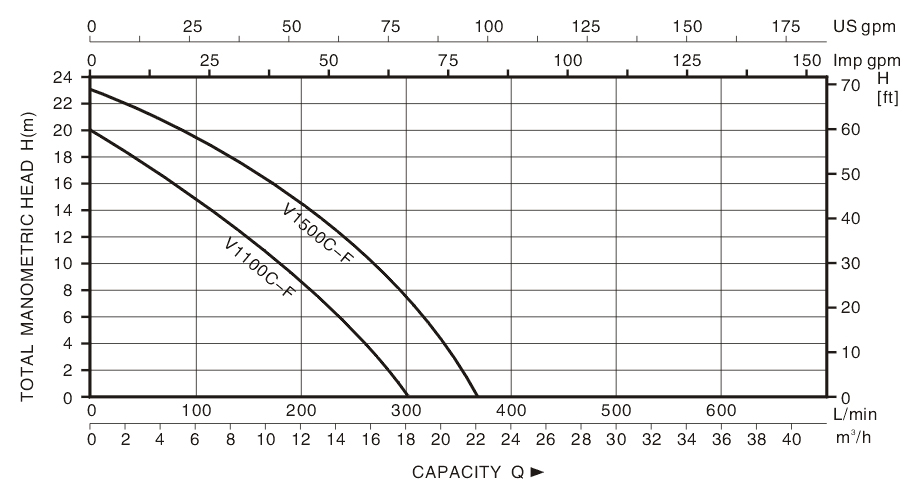

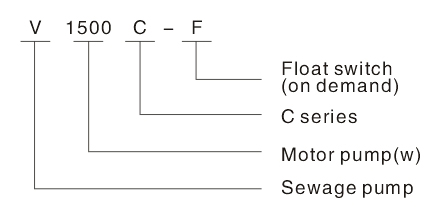

| MODEL | POWER | AMPERE | QUTLET (inch) | VOLTAGE (V/HZ) | MAX.FLOW (L/MIN) | MAX.HEAD (M) | G.W. (Kg) | DIMENSIONS. (mm) | |
|---|---|---|---|---|---|---|---|---|---|
| Kw | Hp | ||||||||
| V1100C-F | 1.1 | 1.5 | 4.7 | 2″ | 220/50 | 300 | 20 | 21.5 | 270×215×480 |
| V1500C-F | 1.5 | 2 | 6.3 | 2″ | 220/50 | 360 | 23 | 23.5 | 270×215×500 |

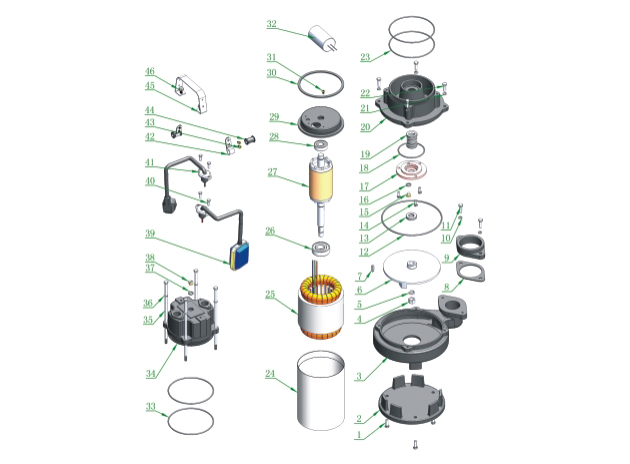

| N0. | Description | N0. | Description | N0. | Description |
|---|---|---|---|---|---|
| 1 | Screw | 18 | O-ring | 35 | Screw |
| 2 | Pump foot | 19 | Mechanical seal | 36 | Washer |
| 3 | Pump base | 20 | Oil chamber | 37 | O-ring |
| 4 | Impeller nut | 21 | Screw | 38 | Screw |
| 5 | Plain washer | 22 | Screw | 39 | Float switch |
| 6 | Impeller | 23 | O-ring | 40 | Screw |
| 7 | Key | 24 | Motor case | 41 | Cable press plate |
| 8 | Flange washer | 25 | Stator | 42 | Cable sheath |
| 9 | Flange | 26 | Bearing | 43 | Screw |
| 10 | O-ring | 27 | Rotor | 44 | Rubber sheath |
| 11 | Screw | 28 | Bearing | 45 | Handle |
| 12 | O-ring | 29 | Motor rear cover | 46 | Screw |
| 13 | Oil seal | 30 | Rubber washer | 47 | |
| 14 | Screw | 31 | Screw | 48 | |
| 15 | Screw | 32 | Capacitor | 49 | |
| 16 | Washer | 33 | O-ring | 50 | |
| 17 | Oil chamber cover | 34 | Top cover | 51 |
