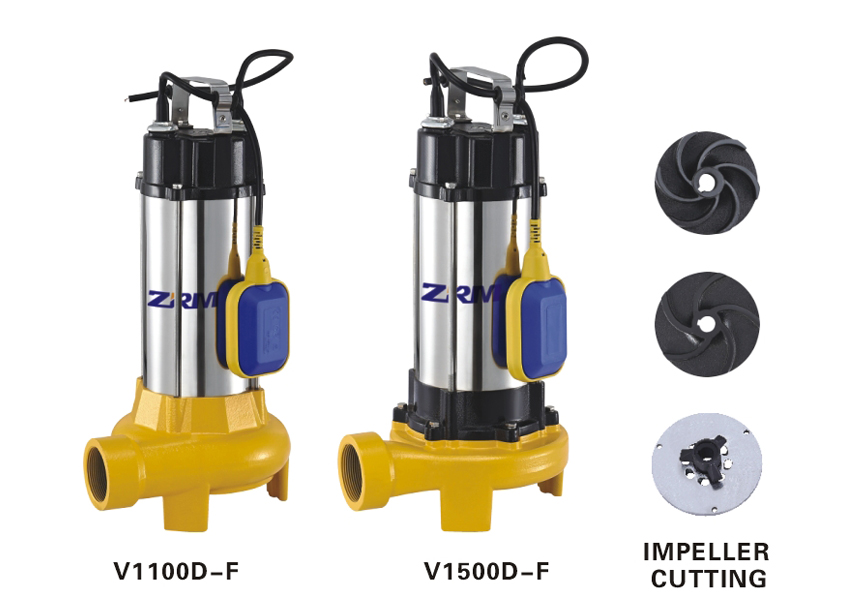

Deep well pump
View More
-Pump
Max.immersion depth: 5 m
Max.liquid temperature: +40 ℃
Liquid PH value: 4-10
Liquid kinematic viscosity: 7×10-7~23×10-6 m2/s
Max.liquid density: 1.2×103 kg/m3
-Motor
Copper winding
Built-in thermal protector
Stainless steel welded shaft
Insulation class: B
Protection class: IP68

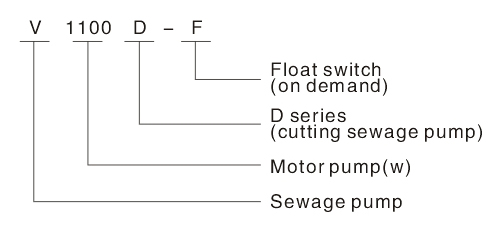

| MODEL | POWER | AMPERE | QUTLET (inch) | VOLTAGE (V/HZ) | MAX.FLOW (L/MIN) | MAX.HEAD (M) | G.W. (Kg) | DIMENSIONS. (mm) | |
|---|---|---|---|---|---|---|---|---|---|
| Kw | Hp | ||||||||
| V750D-F | 0.75 | 1 | 4.8 | 2″ | 220/50 | 300 | 10 | 19 | 465×205×255 |
| V1100D-F | 1.1 | 1.5 | 5.2 | 2″ | 220/50 | 330 | 11 | 20 | 475×205×255 |
| V1500D-F | 1.5 | 2.0 | 8.8 | 2″ | 220/50 | 420 | 15 | 20.96 | 485×205×255 |
| V2200D-F | 2.2 | 3.0 | 11.2 | 2″ | 220/50 | 500 | 15 | 21.93 | 505×205×255 |

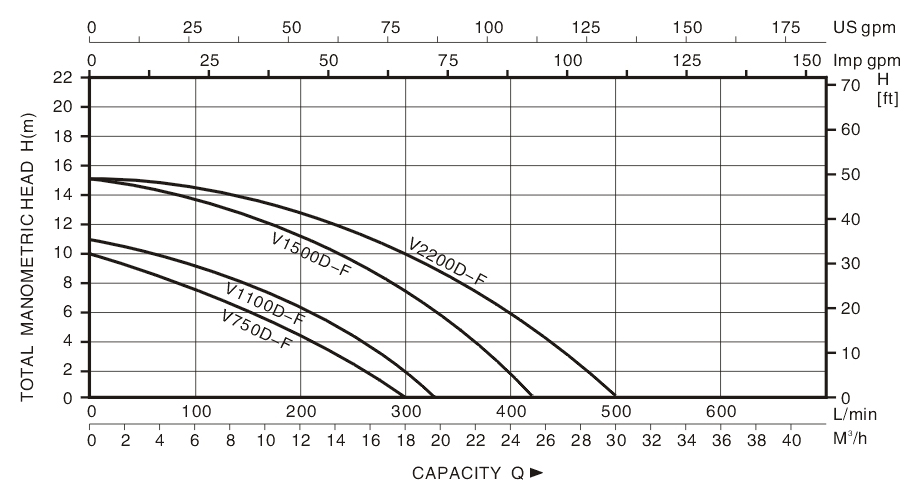

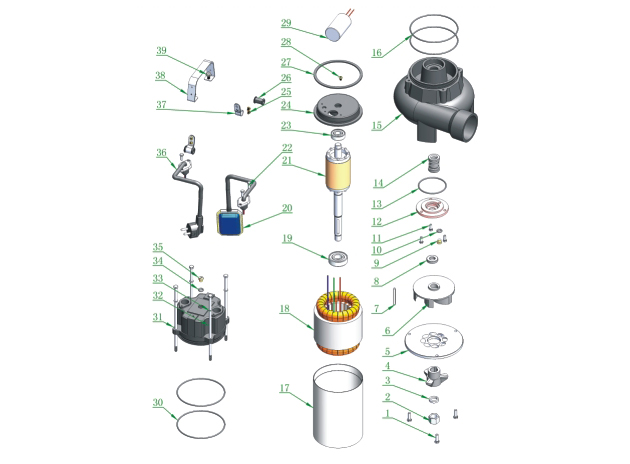

| N0. | Description | N0. | Description | N0. | Description |
|---|---|---|---|---|---|
| 1 | Screw | 18 | Bearing | 35 | Cable and plug |
| 2 | Impeller nut | 19 | Float switch | 36 | Cable sheath |
| 3 | Pain washer | 20 | Rotor | 37 | Handle |
| 4 | Cutter | 21 | Screw | 38 | Screw |
| 5 | Cutter plate | 22 | Bearing | 39 | |
| 6 | Impeller | 23 | Motor upper cover | 40 | |
| 7 | Oil seal | 24 | Screw | 41 | |
| 8 | Screw | 25 | Cable sheath | 42 | |
| 9 | O-ring | 26 | Rubber sheath | 43 | |
| 10 | Screw | 27 | Screw | 44 | |
| 11 | Oil chamber cover | 28 | Capacitor | 45 | |
| 12 | O-ring | 29 | O-ring | 46 | |
| 13 | Mechanical seal | 30 | Screw | 47 | |
| 14 | Pump base | 31 | Top cover | 48 | |
| 15 | O-ring | 32 | Washer | 49 | |
| 16 | Motor case | 33 | O-ring | 50 | |
| 17 | Stator | 34 | Screw | 51 |
