Deep well pump
View More
-Pump
Max.immersion depth: 5 m
Max.liquid temperature: +40 ℃
Liquid PH value: 4-10
Liquid kinematic viscosity: 7×10-7~23×10-6 m2/s
Max.liquid density: 1.2×103 kg/m3
-Motor
Copper winding
Built-in thermal protector
Stainless steel welded shaft
Insulation class: B
Protection class: IP68

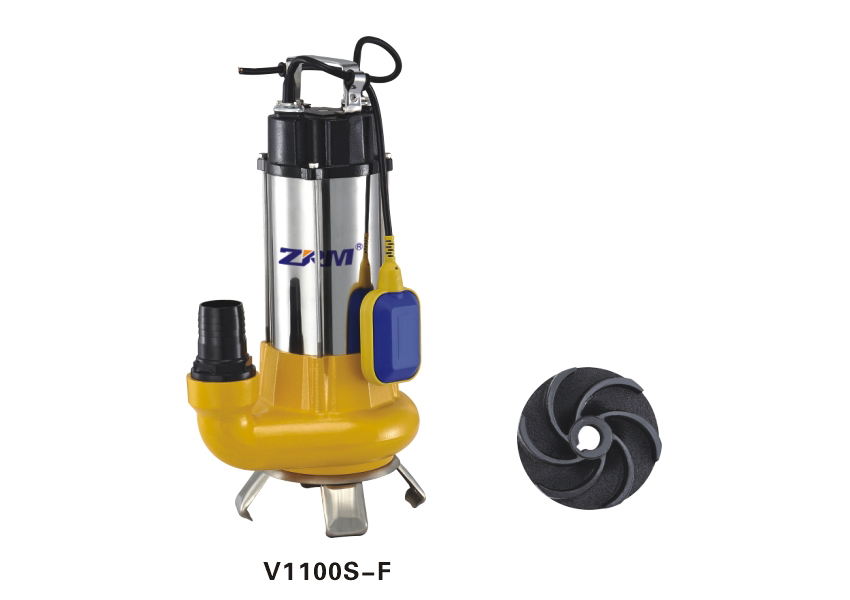

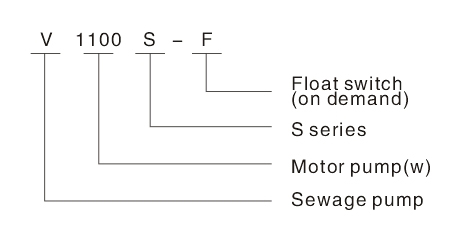

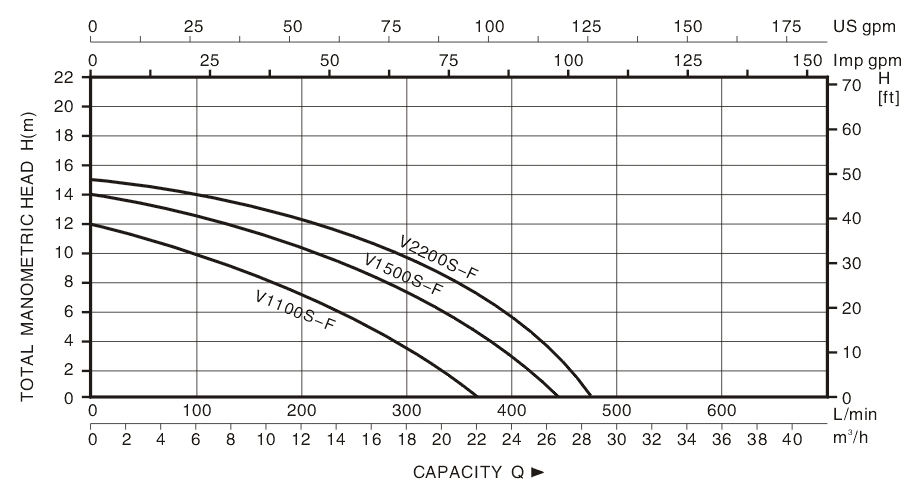

| MODEL | POWER | AMPERE | QUTLET (inch) | VOLTAGE (V/HZ) | MAX.FLOW (L/MIN) | MAX.HEAD (M) | G.W. (Kg) | DIMENSIONS. (mm) | |
|---|---|---|---|---|---|---|---|---|---|
| Kw | Hp | ||||||||
| V1100S-F | 1.1 | 1.5 | 5 | 2″ | 220/50 | 360 | 12 | 22.5 | 530×220×260 |
| V1500S-F | 1.5 | 2 | 7 | 2″ | 220/50 | 440 | 14 | 25.5 | 550×220×260 |
| V2200S-F | 2.2 | 3 | 8 | 2″ | 220/50 | 470 | 15 | 27 | 570×220×260 |

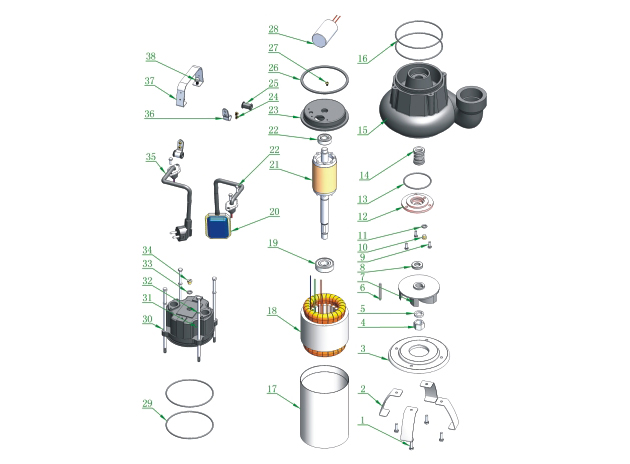

| N0. | Description | N0. | Description | N0. | Description |
|---|---|---|---|---|---|
| 1 | Screw | 18 | Stator | 35 | Cable and plug |
| 2 | Pump foot | 19 | Bearing | 36 | Cable sheath |
| 3 | Bottom plate | 20 | Rotor | 37 | Handle |
| 4 | Impeller nut | 21 | Rator | 38 | Screw |
| 5 | Plain washer | 22 | Screw | 39 | |
| 6 | Key | 23 | Motor rear cover | 40 | |
| 7 | Impeller | 24 | Screw | 41 | |
| 8 | Oil seal | 25 | Rubber sheath | 42 | |
| 9 | Screw | 26 | Rubber washer | 43 | |
| 10 | Screw | 27 | Screw | 44 | |
| 11 | O-ring | 28 | Capacitor | 45 | |
| 12 | Oil chamber cover | 29 | O-ring | 46 | |
| 13 | O-ring | 30 | Screw | 47 | |
| 14 | Mechaniacal seal | 31 | Top cover | 48 | |
| 15 | Pump base | 32 | Washer | 49 | |
| 16 | O-ring | 33 | O-ring | 50 | |
| 17 | Motor case | 34 | Screw | 51 |
