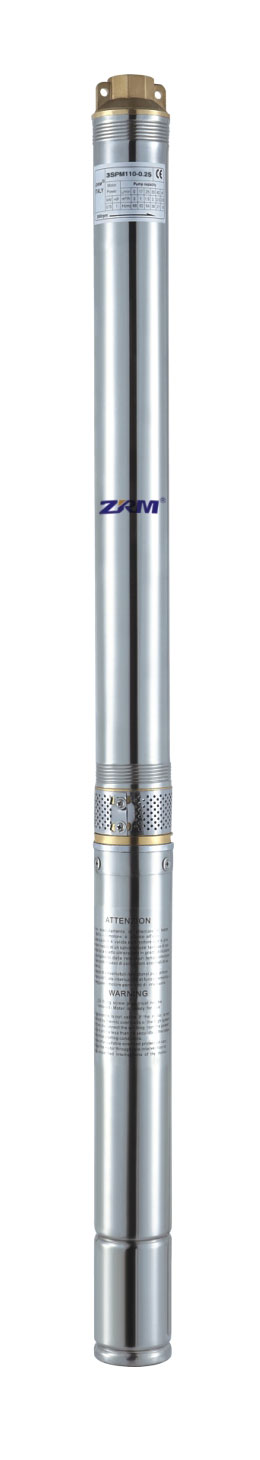

Deep well pump
View More
-Pump/Motor
Qmax:3.8(m3/h)
Insulation class:B
Protection grade:IP 68
Maximum diameter:φ75mm
Highest temperature of liquid:35℃
Options of different materials sre available.
Type single phase 220-240V~Hz50 |

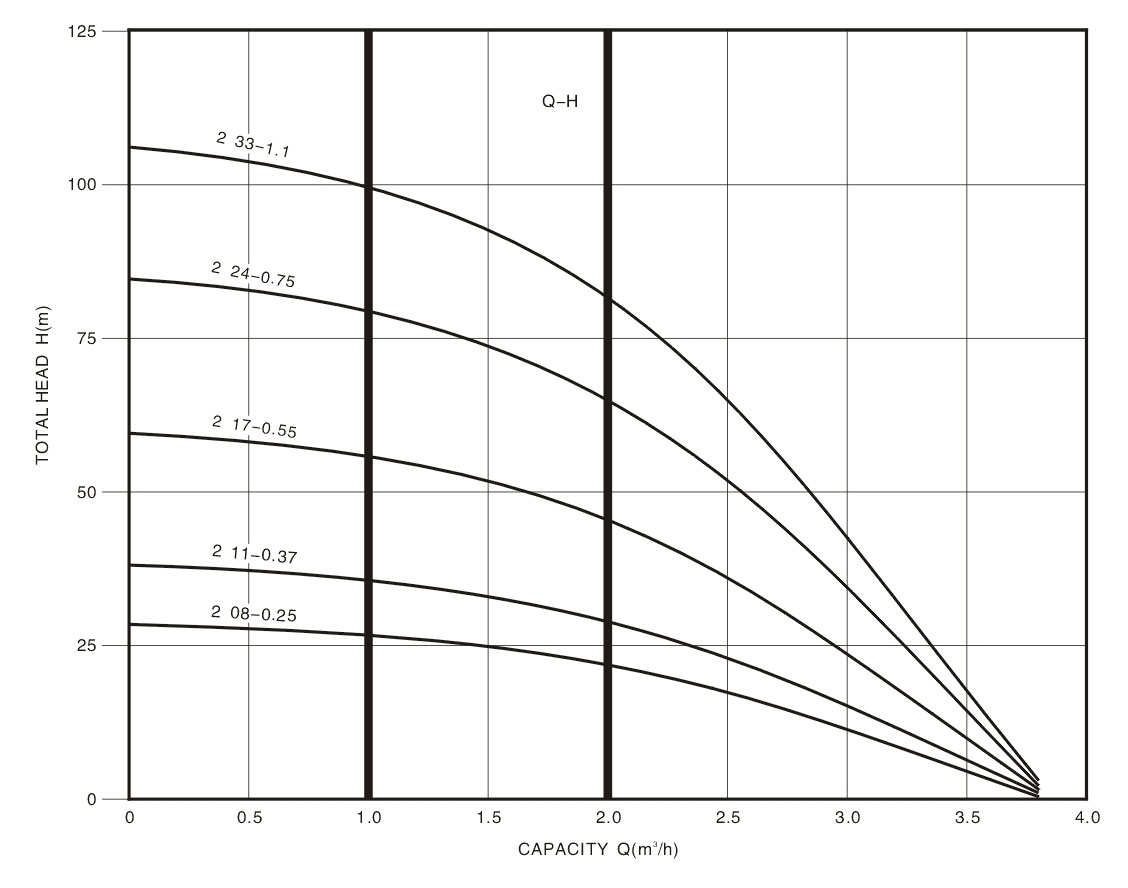

Motor power | Capacity and head | Length | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
L/min | 0 | 8 | 17 | 25 | 30 | 33 | 42 | 50 | 63 | ||||
KW | HP | m3/h | 0 | 0.5 | 1 | 1.5 | 1.8 | 2 | 2.5 | 3 | 3.8 | mm | |

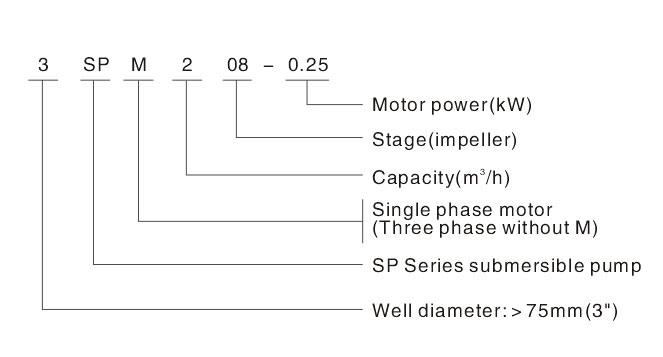

3SPM2 08-0.25 | 0.25 | 0.33 |
Head (m) |
28 | 27 | 26 | 25 | 23 | 22 | 17 | 11 | 1 | 717 |
3SPM2 11-0.37 | 0.37 | 0.5 | 39 | 37 | 36 | 34 | 32 | 30 | 24 | 15 | 2 | 834 | |
3SPM2 17-0.55 | 0.55 | 0.75 | 60 | 58 | 56 | 52 | 49 | 46 | 37 | 23 | 3 | 1030 | |
3SPM2 24-0.75 | 0.75 | 1 | 85 | 82 | 79 | 74 | 70 | 65 | 52 | 33 | 3 | 1268 | |
3SPM2 33-1.1 | 1.1 | 1.5 | 110 | 107 | 101 | 95 | 90 | 85 | 67 | 42 | 4 | 1527 |
N0. | Description | N0. | Description | N0. | Description | N0. | Description |
---|---|---|---|---|---|---|---|
1 | Clamping spring |
14 | O-ring |
27 | Suction support |
40 | Bearing bush |
2 | End cover |
15 | Oil chamber |
28 | Strainer |
41 | Screw |
3 | Rubber cup |
16 | O-ring | 29 | Screw |
42 | Screw |
4 | Motor body |
17 | Screw |
30 | Screw |
43 | Diffuser |
5 | Screw |
18 | Sand proof sheath |
31 | Coupling |
44 | Guide bush |
6 | Washer |
19 | Washer |
32 | Bearing bush |
45 | Valve seat |
7 | Bearing seat |
20 | Sand proof cap |
33 | Intermediate support |
46 | Check valve |
8 | Stator |
21 | Screw |
34 | Guide bus |
47 | Screw |
9 | Ball bearing |
22 | Oil chamber cover |
35 | Shaft |
48 | Holder pipe |
10 | Rotor |
23 | Cable |
36 | Shaft ring |
49 | Cable cover |
11 | Ball bearing |
24 | Stud |
37 | Diffuser cover |
50 | Pump bod |
12 | Gasket |
25 | washer |
38 | Impeller |
51 | Outlet |
13 | Thrust bearing |
26 | Nut |
39 | Diffuser |

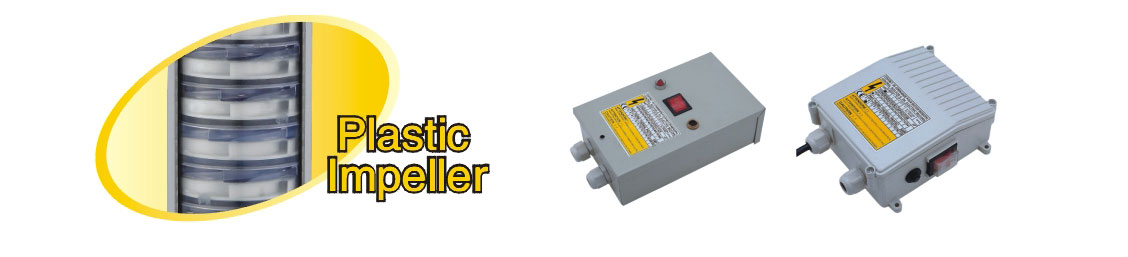

52 | Control box |
