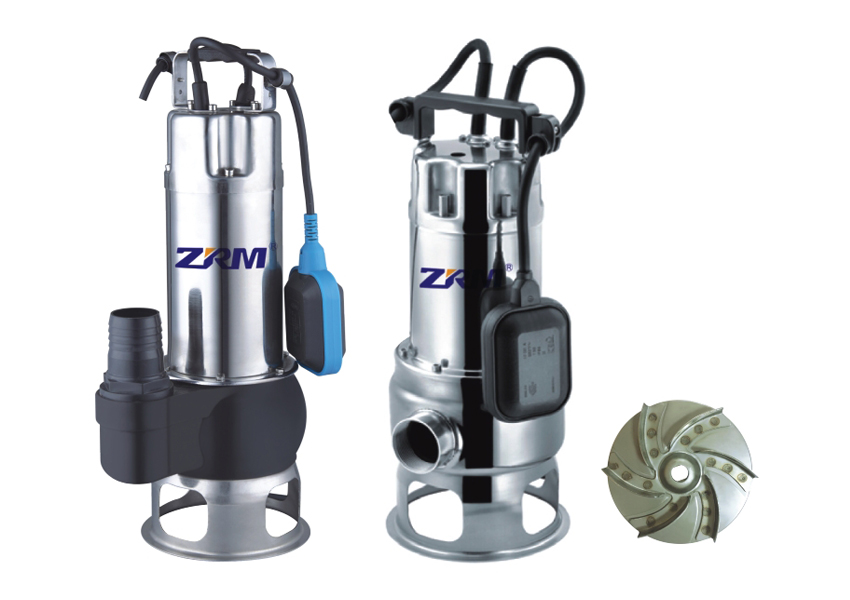

Deep well pump
View More
-Pump
Max.immersion depth: 5 m
Max.liquid temperature: +40 ℃
Liquid PH value: 4-10
Liquid kinematic viscosity: 7×10-7~23×10-6 m2/s
Max.liquid density: 1.2×103 kg/m3
-Motor
Copper winding
Built-in thermal protector
Stainless steel welded shaft
Insulation class: B
Protection class: IP68

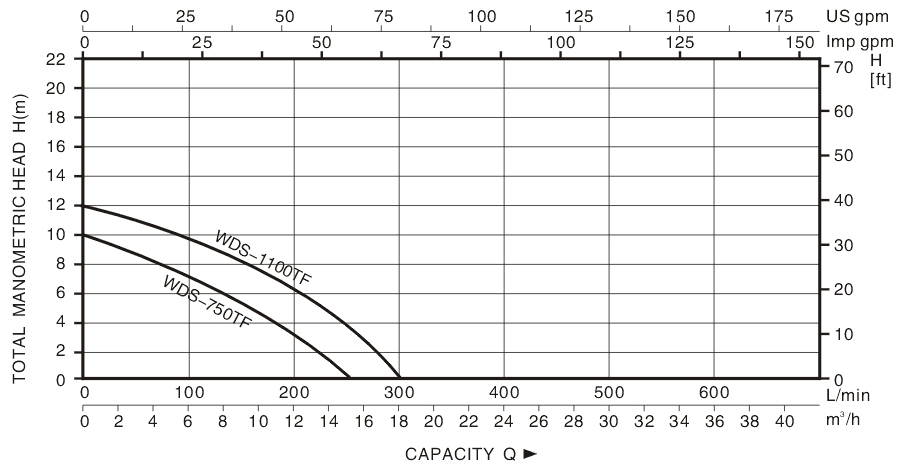

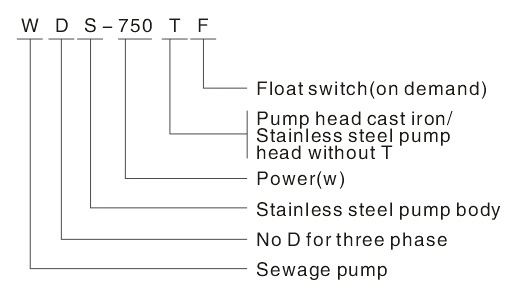

| MODEL | POWER | AMPERE | FLOW (L/MIN) | Head (m) | PIPE | VOLTAGE (V/HZ) | G.W. (Kg) | PACKING DIMENSION (mm) | |
|---|---|---|---|---|---|---|---|---|---|
| Kw | Hp | ||||||||
| WDS-750TF | 0.75 | 1.0 | 4 | 250 | 10 | 2″ | 220/50 | 10/12 | 170×235×450 |
| WDS-1100TF | 1.1 | 1.5 | 5.8 | 300 | 12 | 2″ | 220/50 | 12/13.5 | 170×235×450 |

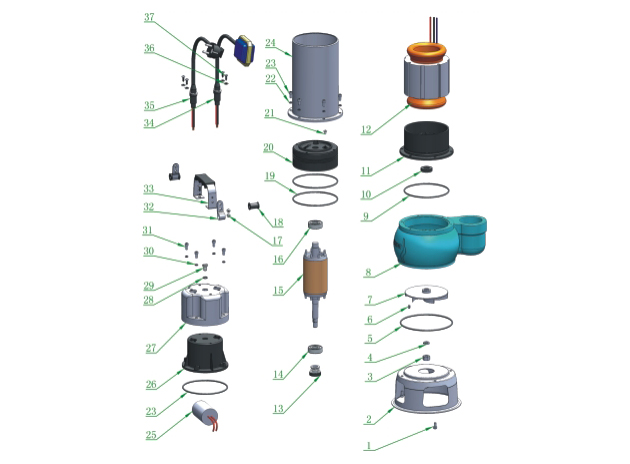

| N0. | Description | N0. | Description | N0. | Description |
|---|---|---|---|---|---|
| 1 | Screw | 18 | Cable gland | 35 | Cable and plug |
| 2 | Pump foot | 19 | O-ring | 36 | Washer |
| 3 | Impeller nut | 20 | Upper bearing seat | 37 | Screw |
| 4 | Pain washer | 21 | Screw | 38 | |
| 5 | O-ring | 22 | Washer | 39 | |
| 6 | Key | 23 | Screw | 40 | |
| 7 | Impeller | 24 | Motor bracket | 41 | |
| 8 | Pump base | 25 | Capacitor | 42 | |
| 9 | O-ring | 26 | Rubber cover | 43 | |
| 10 | Oil seal | 27 | Upper cap | 44 | |
| 11 | Oil chamber | 28 | Plain washer | 45 | |
| 12 | Stator | 29 | Screw | 46 | |
| 13 | Mechanical seal | 30 | Washer | 47 | |
| 14 | Bearing | 31 | Screm | 48 | |
| 15 | Rotor | 32 | Cable sheath | 49 | |
| 16 | Bearing | 33 | Handle | 50 | |
| 17 | Screw | 34 | Float switch | 51 |
