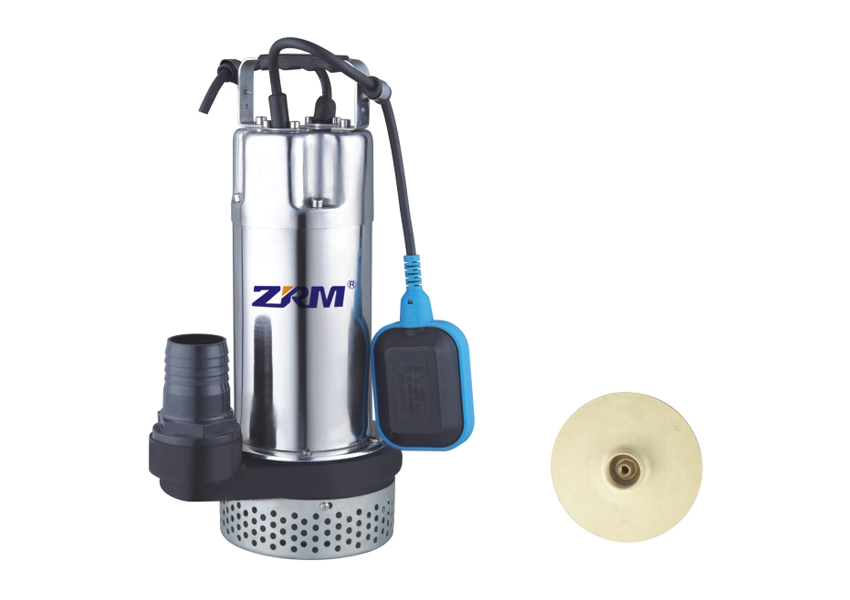

Deep well pump
View More
-Pump
Cast iron pump body under special
anti-rust treatment
Max.immersion depth: 5 m
Max.liquid temperature: +40 ℃
Liquid pH value: 6.5-8
-Motor
Copper winding
Built-in thermal protector
Stainless steel welded shaft
Insulation class: B
Protection class: IP68

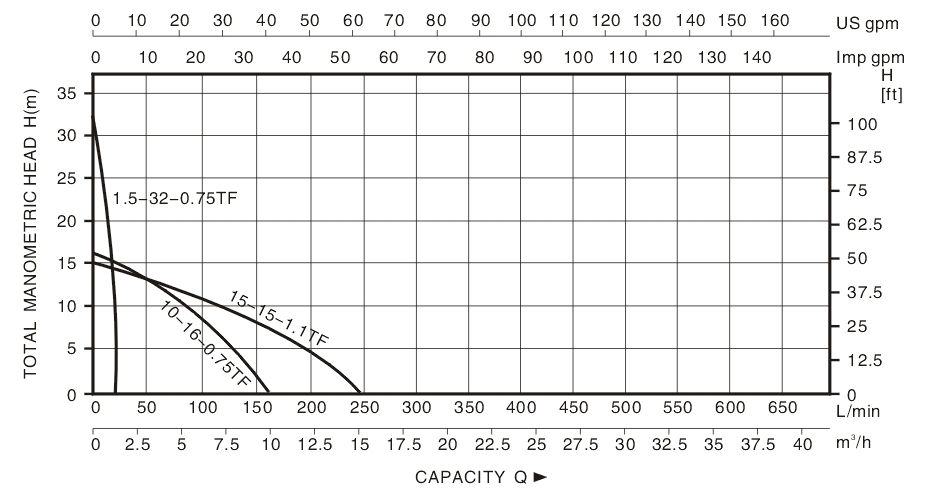

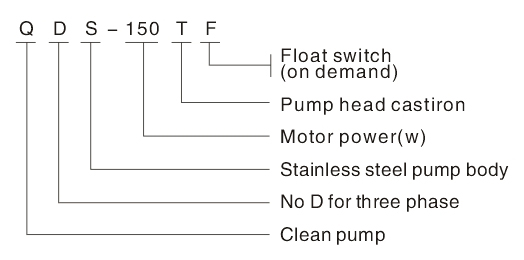

| MODEL | POWER | AMPERE | INLET/OUTLET IN | RATED FLOW (m3/h) | RATED HEAD (m) | G.W. (Kg) | PACKING DIMENSION (mm) | |
|---|---|---|---|---|---|---|---|---|
| Kw | Hp | |||||||
| QDS1.5-32-0.75TF | 0.75 | 1.0 | 5.3 | 1″ | 1.5 | 32 | 14 | 420×200×220 |
| QDS10-16-0.75TF | 0.75 | 1 | 5.3 | 2″ | 10 | 16 | 14 | 430×195×250 |
| QDS15-15-1.1TF | 1.1 | 1.5 | 6.5 | 2″ | 15 | 15 | 15 | 450×210×275 |

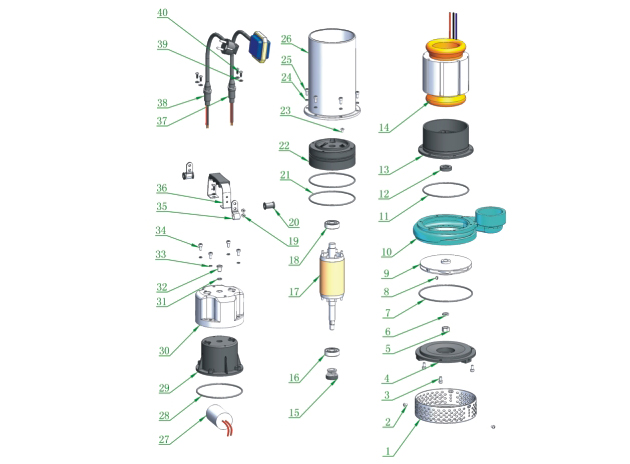

| N0. | Description | N0. | Description | N0. | Description |
|---|---|---|---|---|---|
| 1 | Strainer | 18 | Bearing | 35 | Cable sheath |
| 2 | Screw | 19 | Screw | 36 | Handle |
| 3 | Screw | 20 | Cable rubber sheath | 37 | Float switch |
| 4 | Pump foot | 21 | O-ring | 38 | Cable and plug |
| 5 | Impeller nut | 22 | Oil chamber | 39 | Washer |
| 6 | Plain washer | 23 | Screw | 40 | Screw |
| 7 | O-ring | 24 | Washer | 41 | |
| 8 | Key | 25 | Screw | 42 | |
| 9 | Impeller | 26 | Motor case | 43 | |
| 10 | Pump base | 27 | Capacitor | 44 | |
| 11 | O-ring | 28 | O-ring | 45 | |
| 12 | Oil seal | 29 | Upper lid | 46 | |
| 13 | Motor fore cover | 30 | Upper cover | 47 | |
| 14 | Stator | 31 | O-ring | 48 | |
| 15 | Mechanical seal | 32 | Screw | 49 | |
| 16 | Bearing | 33 | Washer | 50 | |
| 17 | Rotor | 34 | Screw | 51 |
