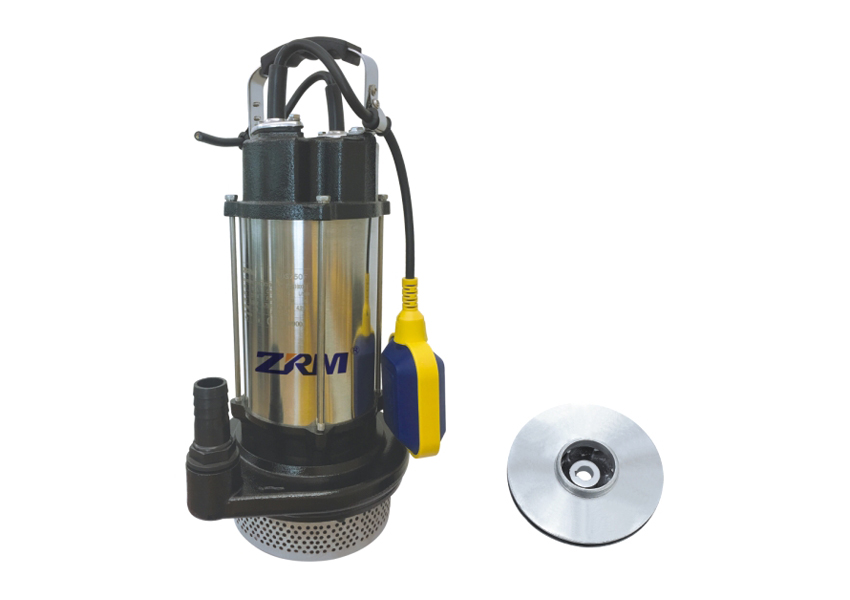

Deep well pump
View More
-Pump
Cast iron pump body under special
anti-rust treatment
Max.immersion depth: 5 m
Max.liquid temperature: +40 ℃
Liquid pH value: 6.5-8
-Motor
Copper winding
Built-in thermal protector
Stainless steel welded shaft
Insulation class: B
Protection class: IP68

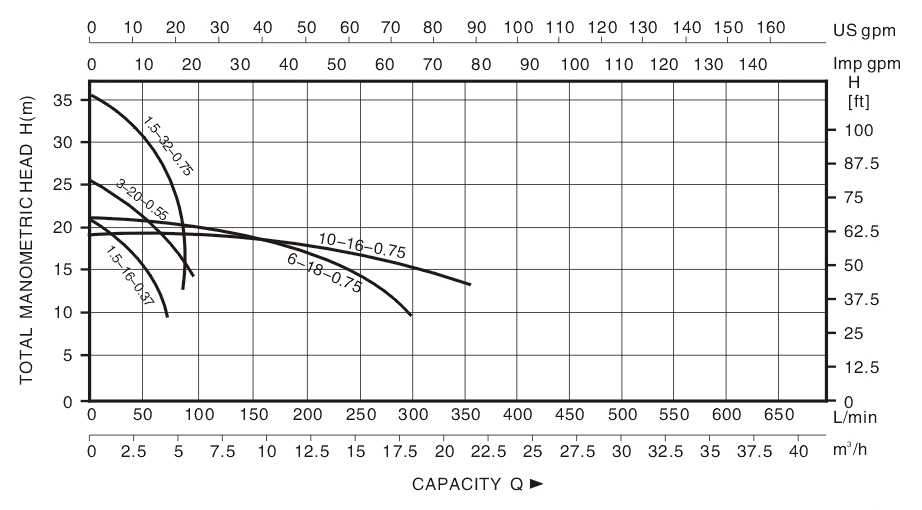

| MODEL | POWER | AMPERE | PIPE (inch) | RATED FLOW (m3/h) | RATED HEAD (m) | G.W. (Kg) | PACKING DIMENSION (mm) | |
|---|---|---|---|---|---|---|---|---|
| Kw | Hp | |||||||
| VDS 1.5-16-0.37 | 0.37 | 0.5 | 3 | 1″ | 1.5 | 16 | 10 | 410×170×235 |
| VDS 3-20-0.55 | 0.55 | 0.75 | 4.2 | 1″ | 3 | 20 | 14 | 415×190×230 |
| VDS 6-18-0.75 | 0.75 | 1 | 5.3 | 1.5″ | 6 | 18 | 16 | 420×200×220 |
| VDS 1.5-32-0.75 | 0.75 | 1 | 5.3 | 1″ | 1.5 | 32 | 16 | 420×200×220 |
| VDS 10-16-0.75 | 0.75 | 1 | 5.3 | 2″ | 10 | 16 | 16 | 430×200×250 |

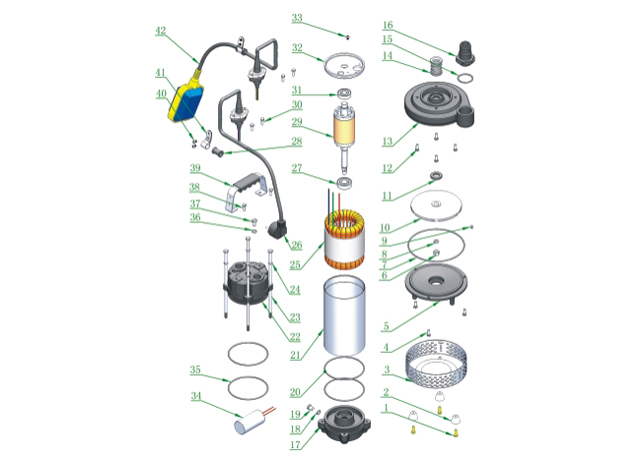

| N0. | Description | N0. | Description | N0. | Description |
|---|---|---|---|---|---|
| 1 | Screw | 18 | O-ring | 35 | O-ring |
| 2 | Foot sheath | 19 | Screw | 36 | Washer |
| 3 | Strainer | 20 | O-ring | 37 | Screw |
| 4 | Screw | 21 | Motor case | 38 | Screw |
| 5 | Pump foot | 22 | Upper cover | 39 | Handle |
| 6 | Impeller nut | 23 | Hexagon screw | 40 | Screw |
| 7 | O-ring | 24 | Washer | 41 | Cable sheath |
| 8 | Plain washer | 25 | Stator | 42 | Float switch |
| 9 | Key | 26 | Plug | 43 | |
| 10 | Impeller | 27 | Bearing | 44 | |
| 11 | Oil seal | 28 | Rubber cable sheath | 45 | |
| 12 | Screw | 29 | Rotor | 46 | |
| 13 | Pump base | 30 | Screw | 47 | |
| 14 | Mechanical seal | 31 | Bearing | 48 | |
| 15 | O-ring | 32 | Upper lid | 49 | |
| 16 | Outlet | 33 | Screw | 50 | |
| 17 | Oil chamber | 34 | Capacitor | 51 |
