Deep well pump
View More
-Pump
Cast iron pump body under special
anti-rust treatment
Max.immersion depth: 5 m
Max.liquid temperature: +40 ℃
Liquid pH value: 6.5-8
-Motor
Copper winding
Built-in thermal protector
Insulation class: B
Protection class: IP68

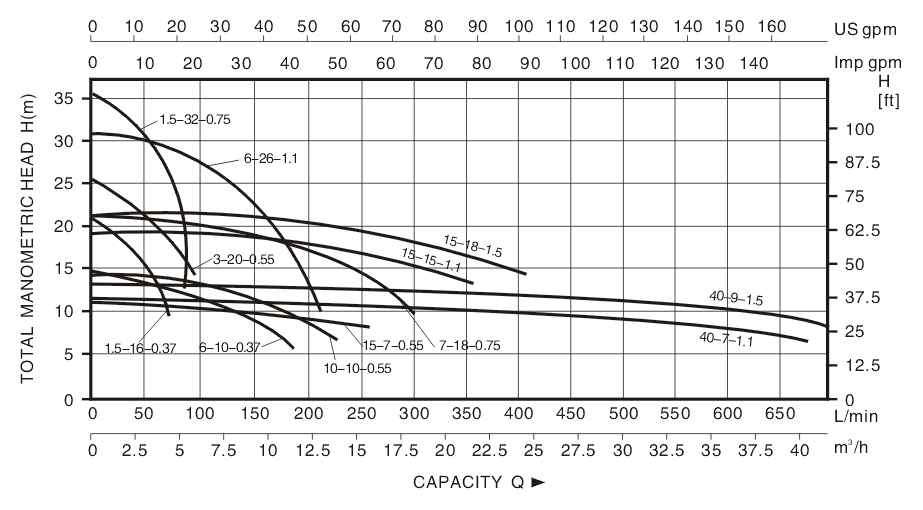

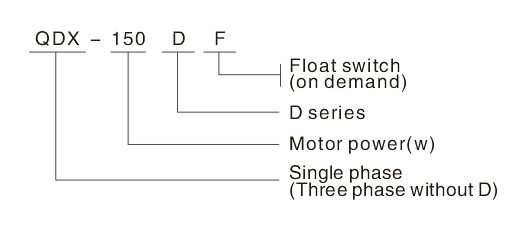

| MODEL | POWER | AMPERE | INLET/OUTLET IN | RATED FLOW (m3/h) | RATED HEAD (m) | G.W. (Kg) | PACKING DIMENSION (mm) | |
|---|---|---|---|---|---|---|---|---|
| Kw | Hp | |||||||
| QDX1.5-12-0.25 | 0.25 | 0.37 | 1.6 | 1″ | 1.5 | 12 | 8/10.5 | 405×230×190 |
| QDX1.5-16-0.37 | 0.37 | 0.5 | 3 | 1″ | 1.5 | 16 | 9/11.5 | 410×170×235 |
| QDX6-10-0.37 | 0.37 | 0.5 | 3 | 1.5″ | 6 | 10 | 10/12 | 410×170×235 |
| QDX3-20-0.55 | 0.55 | 0.75 | 4.2 | 1″ | 3 | 20 | 12/15 | 415×190×230 |
| QDX10-10-0.55 | 0.55 | 0.75 | 4.2 | 1.5″ | 10 | 10 | 13/16 | 415×190×230 |
| QDX15-7-0.55 | 0.55 | 0.75 | 4.2 | 2″ | 15 | 7 | 13/16.5 | 420×225×195 |
| QDX1.5-32-0.75 | 0.75 | 1 | 5.3 | 1″ | 1.5 | 32 | 14/17 | 420×200×220 |
| QDX7-18-0.75 | 0.75 | 1 | 5.3 | 1.5/2″ | 7 | 18 | 14/17.5 | 430×195×250 |
| QDX10-16-0.75 | 0.75 | 1 | 5.3 | 2/1.5″ | 10 | 16 | 14/17.5 | 430×195×250 |
| QDX15-10-0.75 | 0.75 | 1 | 5.3 | 2.5/2″ | 15 | 10 | 14.5/18 | 460×270×220 |
| QDX6-26-1.1 | 1.1 | 1.5 | 7.5 | 1.5″ | 6 | 26 | 15.5/19.5 | 450×210×275 |
| QDX15-15-1.1 | 1.1 | 1.5 | 7.5 | 2.5/2″ | 15 | 15 | 15/19.5 | 450×210×275 |
| QDX40-7-1.1 | 1.1 | 1.5 | 7.5 | 3″ | 40 | 7 | 17/21.5 | 465×235×295 |
| QDX15-18-1.5 | 1.5 | 2 | 8 | 2/2.5″ | 15 | 18 | 17.5/22 | 465×210×275 |
| QDX40-9-1.5 | 1.5 | 2 | 8 | 3″ | 40 | 9 | 19.5/23.5 | 480×235×295 |
| QDX50-7-1.5 | 1.5 | 2 | 8 | 4″ | 50 | 7 | 22.5/26.5 | 540×330×245 |
