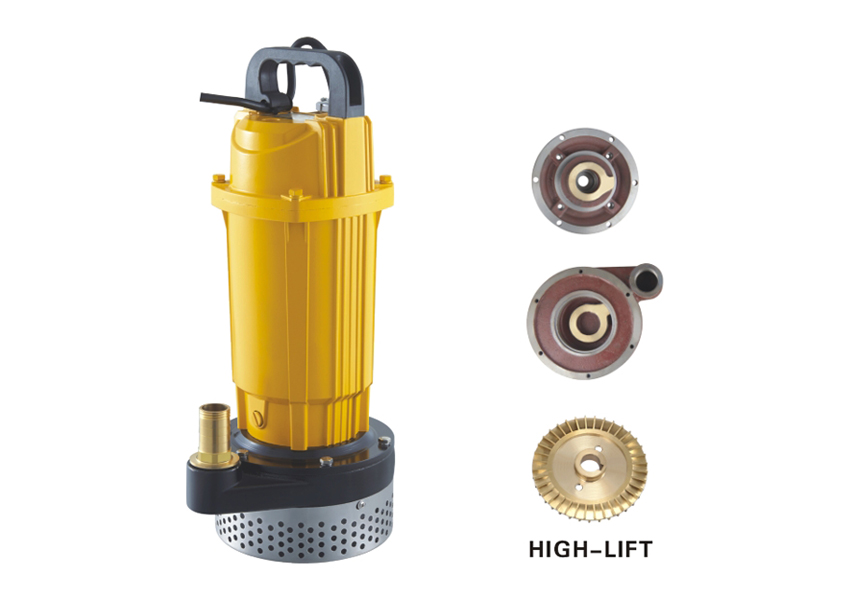

Deep well pump
View More
-Pump
Cast iron pump body under special
anti-rust treatment
Max.immersion depth: 5 m
Max.liquid temperature: +40 ℃
Liquid pH value: 6.5-8
-Motor
Copper winding
Built-in thermal protector
Stainless steel welded shaft
Insulation class: B
Protection class: IP68

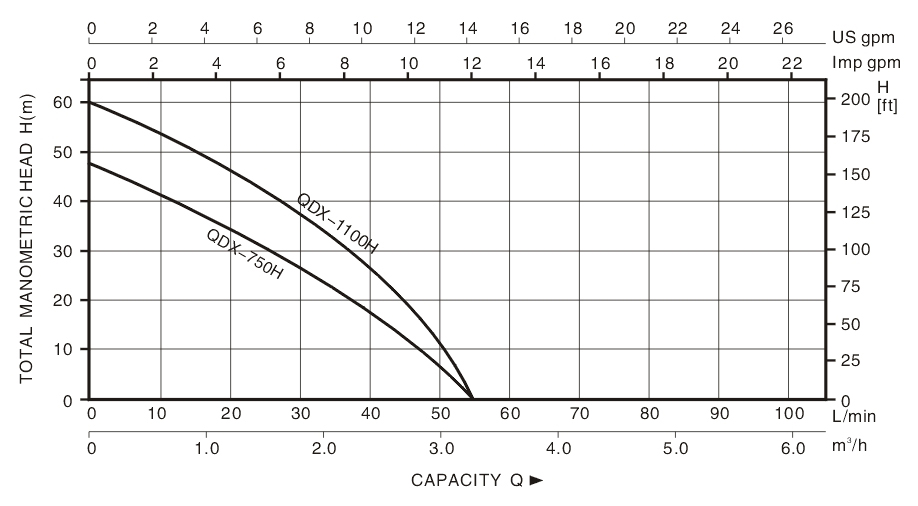

| MODEL | POWER | AMPERE | FLOW (L/Min) | HEAD (m) | PIPE | VOLTAGE (V/HZ) | G.W. (Kg) | PACKING DIMENSION (mm) | |
|---|---|---|---|---|---|---|---|---|---|
| Kw | Hp | ||||||||
| QDX-750H | 0.75 | 1.0 | 4.6 | 55 | 48 | 1″ | 220/50 | 13 | 420×230×200 |
| QDX-1100H | 1.1 | 1.5 | 5.5 | 55 | 60 | 1″ | 220/50 | 14.5 | 420×230×200 |

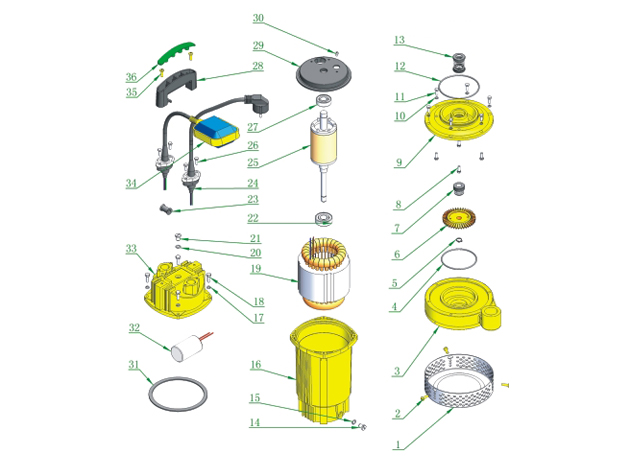

| N0. | Description | N0. | Description | N0. | Description |
|---|---|---|---|---|---|
| 1 | Strainer | 18 | Screw | 35 | Screw |
| 2 | Screw | 19 | Stator | 36 | Handle cover |
| 3 | Pump base | 20 | O-ring | 37 | |
| 4 | O-ring | 21 | Screw | 38 | |
| 5 | Plain washer | 22 | Bearing | 39 | |
| 6 | Impeller | 23 | Cable sheath | 40 | |
| 7 | Mechanical seal | 24 | Cable and plug | 41 | |
| 8 | Screw | 25 | Rotor | 42 | |
| 9 | Motor fore cover | 26 | Screw | 43 | |
| 10 | Washer | 27 | Bearing | 44 | |
| 11 | Screw | 28 | Handle | 45 | |
| 12 | O-ring | 29 | Motor upper cover | 46 | |
| 13 | Mechanical seal | 30 | Screw | 47 | |
| 14 | Air screw | 31 | Rubber washer | 48 | |
| 15 | O-ring | 32 | Capacitor | 49 | |
| 16 | Motor case | 33 | Upper cover | 50 | |
| 17 | O-ring | 34 | Float switch | 51 |
