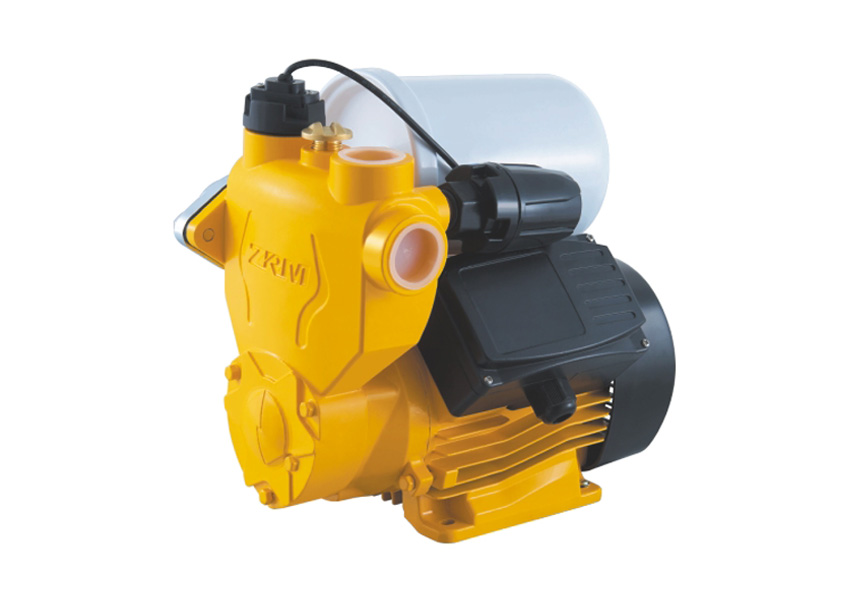

ZVM

-Pump
1. 3-second time delay of pump start after plugging into
the socket to avoid potential danger caused by electric
sparks
2. Automatic stop in 6 minutes in case of no water inside
3. Automatic switching to small flow control system in
condition of small water flow
4. Automatic 10-cecond operation every 72 hours for anti-
block protection in caseof no use for long time
5. Anti-freezing in low temperature environment by
automatic start and stop control to maintain the water
temperate inside pump between 4℃ and 60℃
6. LCD screen with on/off pressure setting,operation status
and malfunction alam
7. Remote monitoring and controlling by computer or mobbile
phone

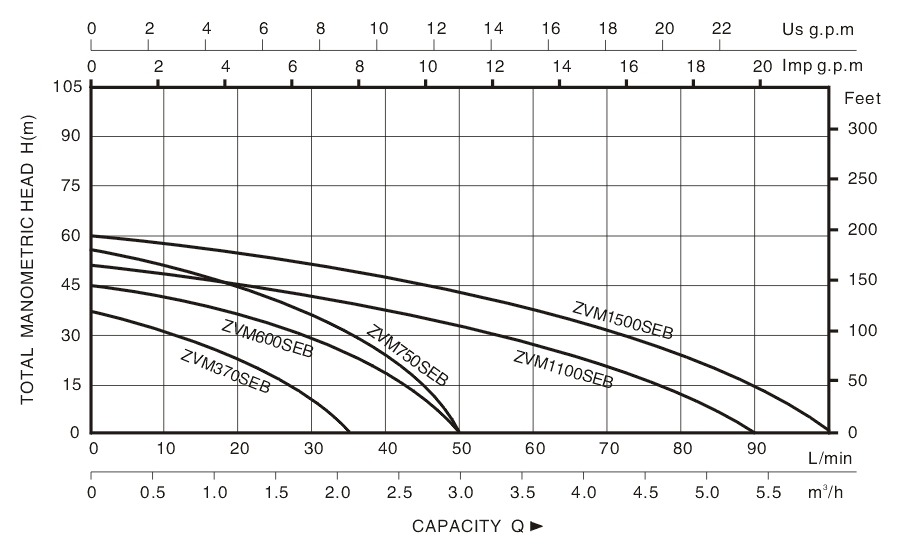

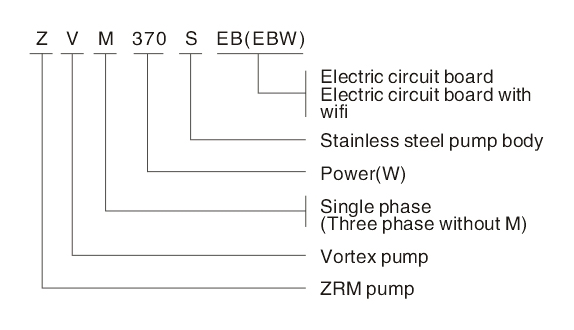

MODEL	POWER		AMPERE	Max.FLOW (L/Min)	Max.HEAD (m)	SUCT.MAX (m)	PIPE	G.W. (Kg)	Q(m3/h)	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7
MODEL	Kw	Hp	AMPERE	Max.FLOW (L/Min)	Max.HEAD (m)	SUCT.MAX (m)	PIPE	G.W. (Kg)	Q(L/min)	0	5	10	15	20	25	30	35	40	45
ZVM 370SEB	0.37	0.5	2.5	35	38	9	1″×1″	11	H (m)	38	35	30	25	20	15	10	5	-	-
ZVM 600SEB	0.6	0.8	3.6	50	45	9	1″×1″	13		45	40	34	28	22	17	12	7	-	-
ZVM 750SEB	0.75	1.0	4	50	55	9	1″×1″	14		55	49	43	37	30	25	20	14	7	1
ZVM 1100SEB	1.1	1.5	6.5	90	50	9	1.5″×1.5″	21		50	47	45	44	43	42	41	37	35	33
ZVM 1500SEB	1.5	2	9	100	60	9	1.5″×1.5″	22		60	57	55	54	53	52	51	47	45	43

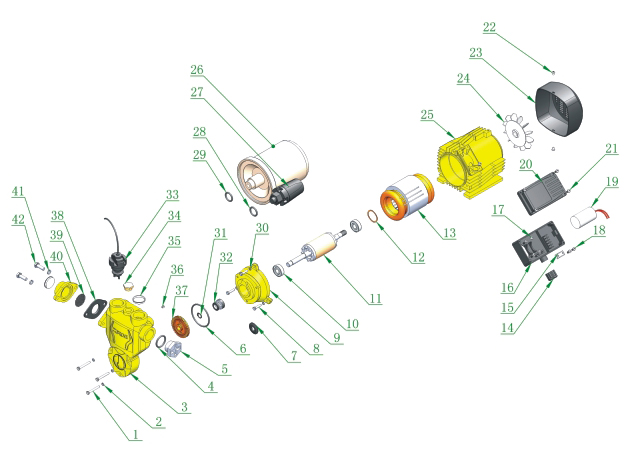

N0.	Description	N0.	Description	N0.	Description
1	Hex bolt	18	Screw	35	Dust cap
2	Washer	19	Capacitor	36	Key
3	Pump body	20	Terminal box cover	37	Impeller
4	O-ring	21	Screw	38	Flange pad
5	Filling plug	22	Screw	39	Strainer
6	O-ring	23	Fan cover	40	Flange
7	Splash guard	24	Fan	41	Washer
8	Screw	25	Motor case	42	Screw
9	Motor front bracket	26	Pressure tank	43
10	Bearing	27	Pressure switch	44
11	Rotor	28	O-ring	45
12	Adjusting ring	29	O-ring	46
13	Stator	30	Washer	47
14	Water proof fairlead	31	Circlip	48
15	Cable clip	32	Menchanical seal	49
16	Terminal box	33	Flow switch	50
17	Screw	34	Water injection	51
