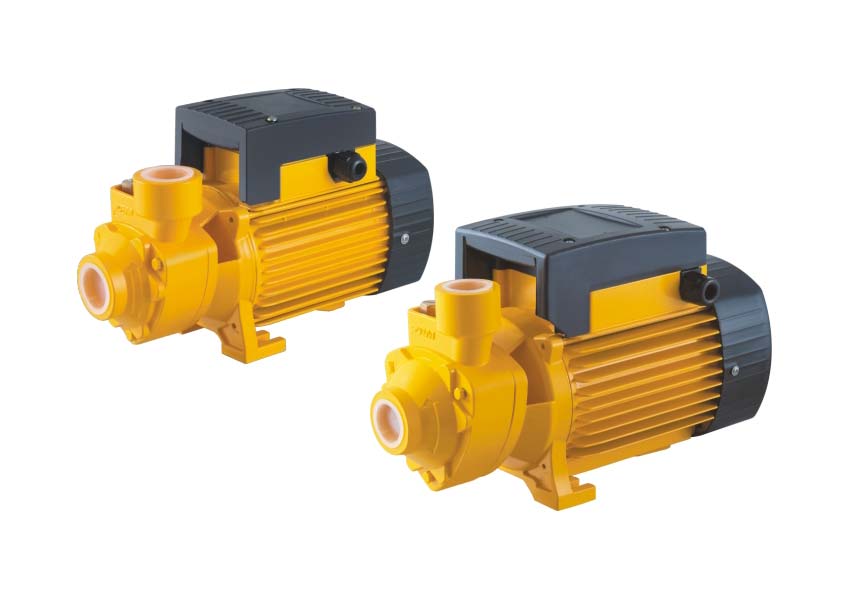

ZVM

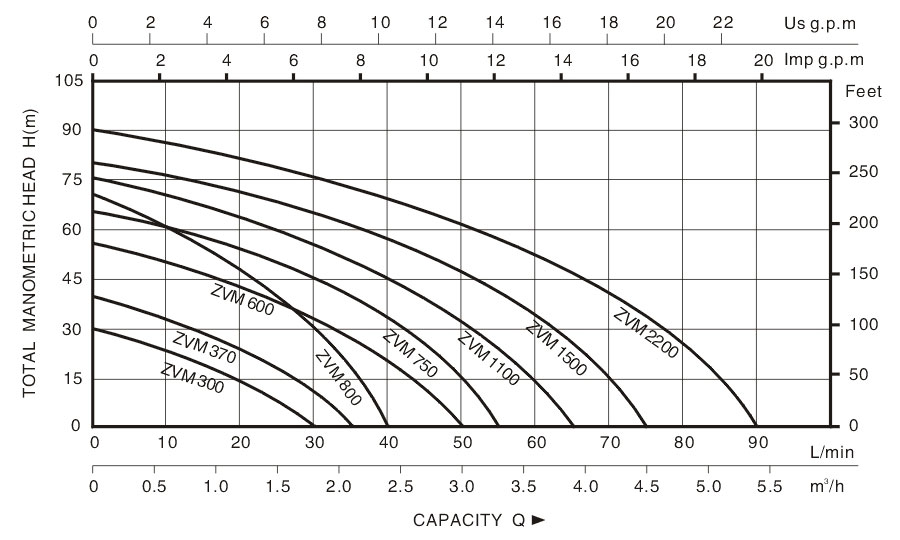

MODEL	POWE		AMPERE	MAX.FLOW L/Min	MAX.HEAD (m)	SUCT.MAX (m)	PIPE	G.W (kg)	Q(m3/h)	0	0.6	0.9	1.2	1.5	1.8	2.1	2.4	3.0	3.6
MODEL	Kw	Hp	AMPERE	MAX.FLOW L/Min	MAX.HEAD (m)	SUCT.MAX (m)	PIPE	G.W (kg)	Q(L/min)	0	10	15	20	25	30	35	40	50	60
ZVM 300	0.3	0.4	2.5	30	30	9	1″×1″	5	H (m)	30	20	15	12	8	5	-	-	-	-
ZVM 370	0.37	0.5	3	35	40	9	1″×1″	5.3		40	30	25	20	15	10	5	-	-	-
ZVM 600	0.6	0.9	4.5	50	55	9	1″×1″	8.8		55	50	40	35	30	25	20	10	5	-
ZVM 750	0.75	1.0	5.2	55	65	9	1″×1″	10		65	60	50	45	35	28	22	15	5	-
ZVM 800	0.75	1.0	5.2	40	70	9	1.5″×1.5″	10		70	60	50	35	25	15	5	-	-	-
ZVM 1100	1.1	1.5	7	65	75	9	1″×1″	15.5		75	70	65	60	55	50	45	40	30	18
ZVM 1500	1.5	2.0	8	75	80	9	1″×1″	16		80	75	70	65	60	55	50	45	40	30
ZVM 2200	2.2	3.0	9.2	90	90	9	1″×1″	22		90	85	80	75	70	65	60	55	50	40

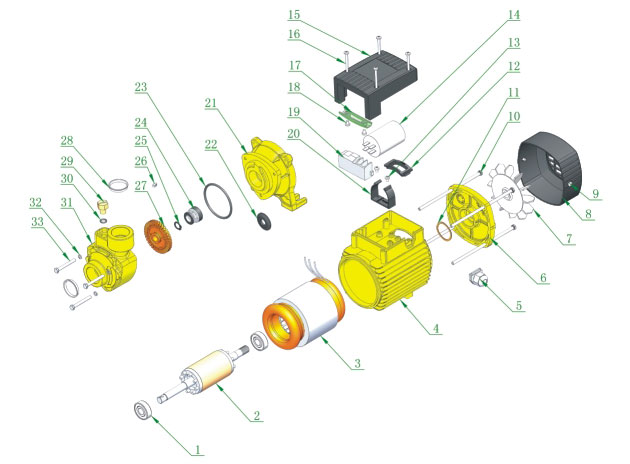

N0.	Description	N0.	Description	N0.
1	Bearing	18	Screw	35
2	Rotor	19	Terminal board	36
3	Stator	20	Capacitor holder	37
4	Motor case	21	Motor front bracket	38
5	Waterproof fairlead	22	Splash guard	39
6	Motor end cover	23	O-ring	40
7	Fan	24	Mechanical seal	41
8	Fan cover	25	Circlip	42
9	Screw	26	Key	43
10	Motor tie-rod	27	Impeller	44
11	Adjusting ring	28	Dust cap	45
12	Cable sheath	29	Airscrew	46
13	Screw	30	O-ring	47
14	Capacitor	31	Pump body	48
15	Terminal box	32	Washer	49
16	Screw	33	Screw	50
17	Handle sheath	34		51
