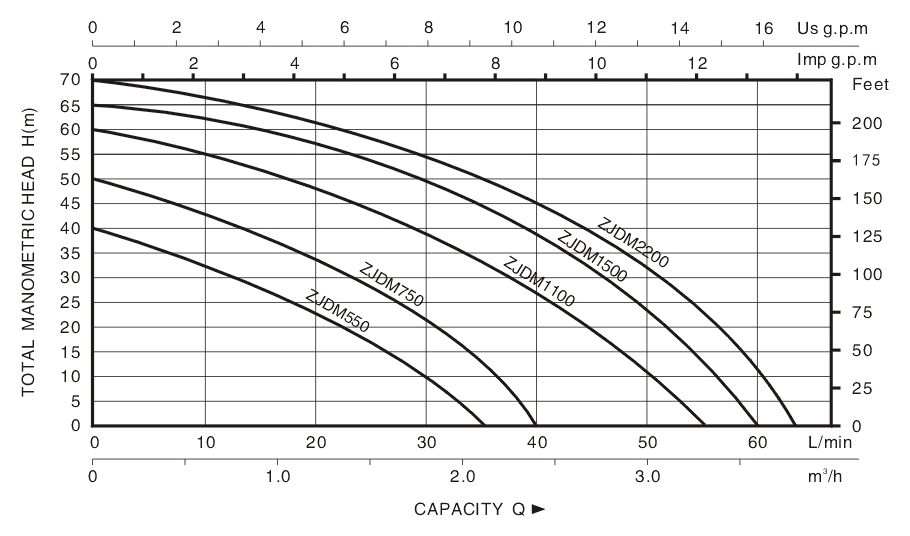

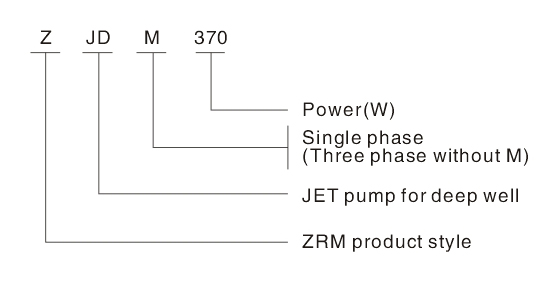

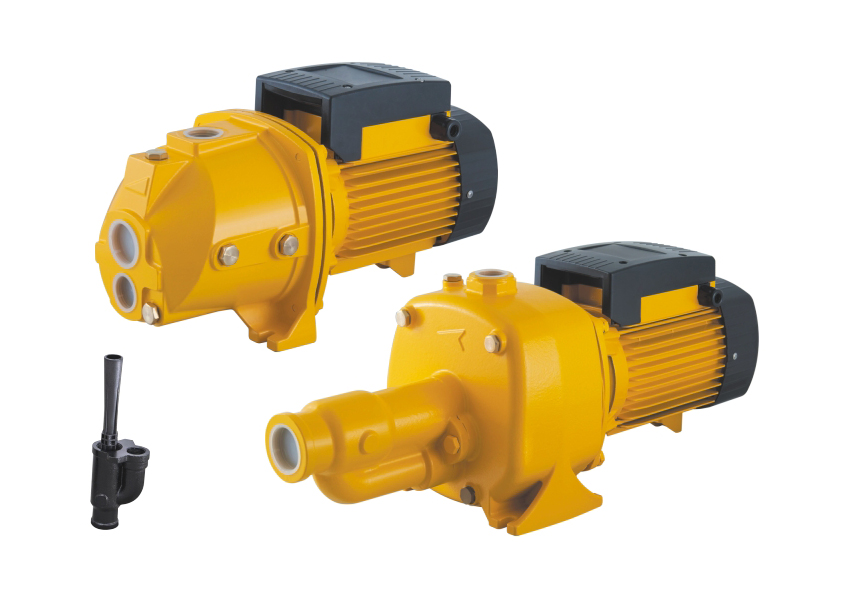

MODEL	POWER		AMPERE	Max.FLOW (L/Min)	Max.HEAD (m)	SUCT.MAX (m)	PIPE	G.W. (Kg)	Q(m3/h)	0.6	6	1.2	1.8	2.1	2.4	3.0	3.3	3.6	4.2
MODEL	Kw	Hp	AMPERE	Max.FLOW (L/Min)	Max.HEAD (m)	SUCT.MAX (m)	PIPE	G.W. (Kg)	Q(L/min)	0	10	20	30	35	40	50	55	60	70
ZJDM550	0.55	0.75	3.5	35	40	15	1.25″×1″	16	H (m)	40	34	25	4	-	-	-	-	-	-
ZJDM750	0.75	1	4	40	50	20	1.25″×1″	17		50	42	33	12	8	4	-	-	-	-
ZJDM1100	1.1	1.5	7.9	55	60	25	1.25″×1″	24		60	54	50	46	42	38	33	12	4	-
ZJDM1500	1.5	2	8.5	60	65	30	1.25″×1″	25		65	59	54	49	45	40	37	20	8	-
ZJDM2200	2.2	3	9	65	70	35	1.25″×1″	26		70	65	60	55	50	45	40	25	13	4

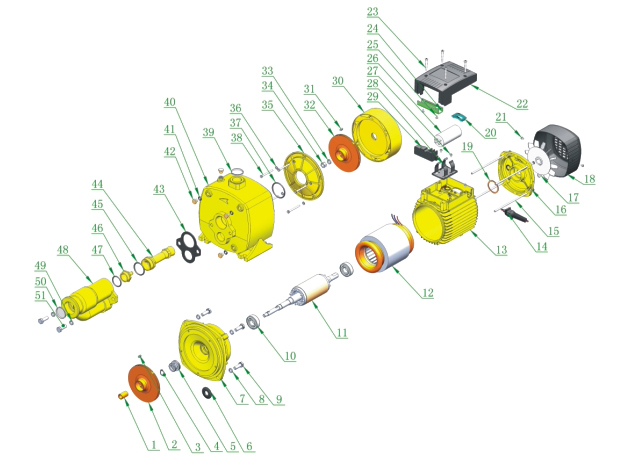

N0.	Description	N0.	Description	N0.	Description
1	Coupling	18	Fan cover	35	Hdding disc
2	Impeller	19	Adjusting ring	36	Washer
3	Key	20	Cable sheath	37	O-ring
4	Spring	21	Screw	38	Screw
5	Mechanical seal	22	Terminal box	39	Dust cap
6	Splash guard	23	Terminal box screw	40	Pump body
7	Motor front bracket	24	Pump body O-ring	41	Washer
8	Washer	25	Screw	42	Screw
9	Screw	26	Capacitor	43	Ejector seal
10	Bearing	27	Screw	44	Venturi tube
11	Rotor	28	Capacitor holder	45	O-ring
12	Stator	29	Termainal board	46	Nozzle
13	Motor case	30	Diffuser	47	O-ring
14	Water proof fairlead	31	Key	48	Ejector
15	Motor tie-rod	32	Impeller	49	Washer
16	Motor end cover	33	Plain washer	50	Dust cap
17	Fan	34	Impeller nut	51	Screw
