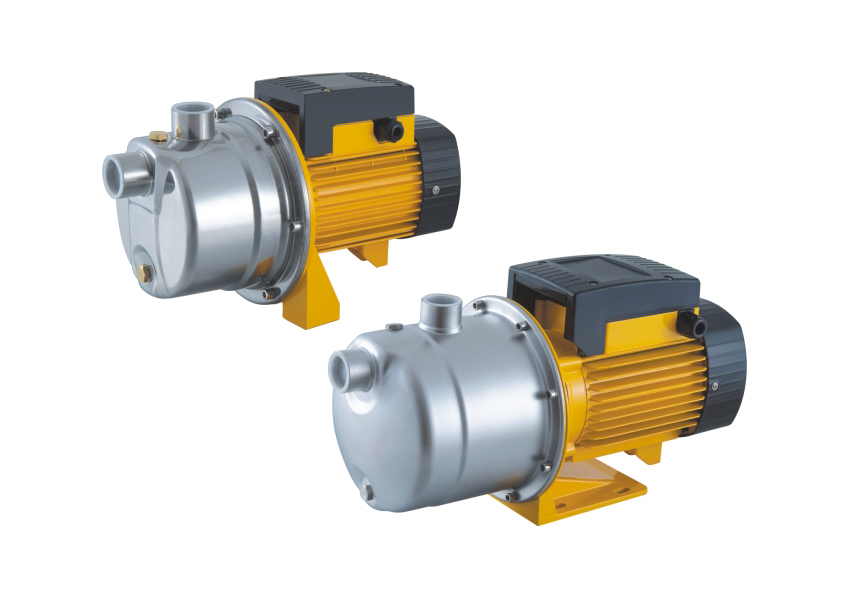

ZJMS

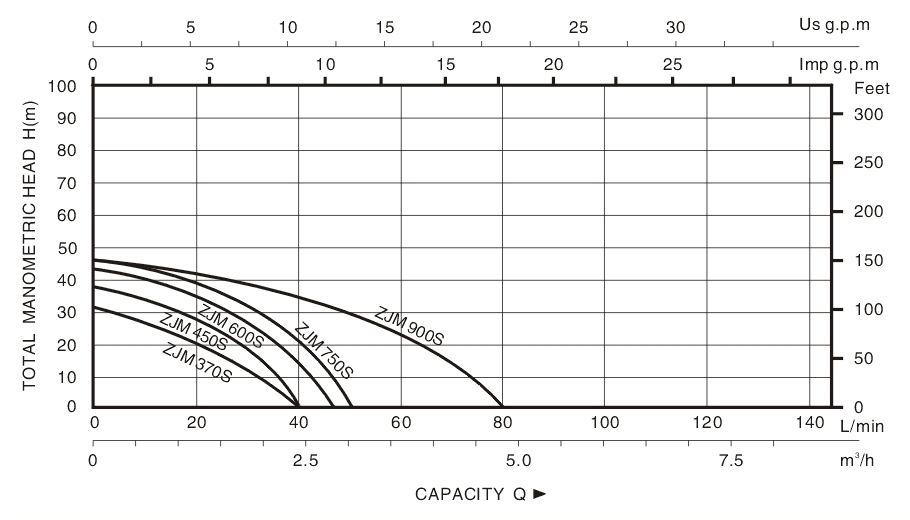

MODEL	POWER		AMPERE	Max.FLOW (L/Min)	Max.HEAD (m)	SUCT.MAX (m)	PIPE	G.W. (Kg)	Q(m3/h)	0	0.6	0.9	1.2	1.5	1.8	2.1	2.4	3.0	3.6
MODEL	Kw	Hp	AMPERE	Max.FLOW (L/Min)	Max.HEAD (m)	SUCT.MAX (m)	PIPE	G.W. (Kg)	Q(L/min)	0	10	15	20	25	30	35	40	50	60
ZJM 370S	0.37	0.5	3	40	32	9	1″×1″	8	H (m)	32	23	20	18	16.5	15	13	11	-	-
ZJM 450S	0.45	0.6	3.2	40	38	9	1″×1″	8.5		38	31	27	25	22	20	19	16	-	-
ZJM 600S	0.6	0.8	3.7	45	43	9	1″×1″	13		43	33	30	27	25	23	21	20	-	-
ZJM 750S	0.75	1.0	5	50	46	9	1″×1″	14		46	38	36	34	32	30	28	27	23	-
ZJM 900S	0.9	1.2	6.2	80	45	9	1″×1″	15		45	42	39	37	35	34	31	31	28	22

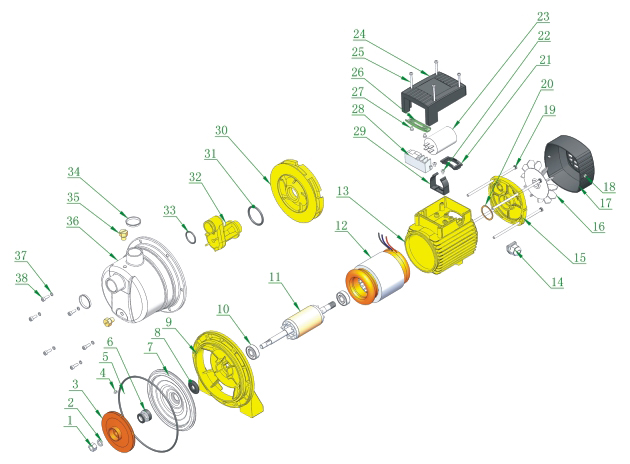

N0.	Description	N0.	Description	N0.	Description
1	Hexagonal nut	18	Fan cover screw	35	Air screw
2	Impeller nut	19	Motor tie-rod	36	Pump body
3	Impeller	20	Adjusting ring	37	Washer
4	Key	21	Cable sheath	38	Pump body screw
5	O-ring	22	Screw	39
6	Mechanical seal	23	Capacitor	40
7	Mechanical seal disc holder	24	Terminal box	41
8	Splash guard	25	Terminal box screw	42
9	Motor front bracket	26	Handle cover plate	43
10	Bearing	27	Screw	44
11	Shaft and rotor	28	Terminal board	45
12	Stator	29	Capacitor holder	46
13	Motor case	30	Diffuser	47
14	Water proof fairlead	31	Diffuser "O"ring	48
15	Motor end cover	32	Venturi tube	49
16	Fan	33	Venturi tube "O"ring	50
17	Fan cover	34	Dust cap	51
