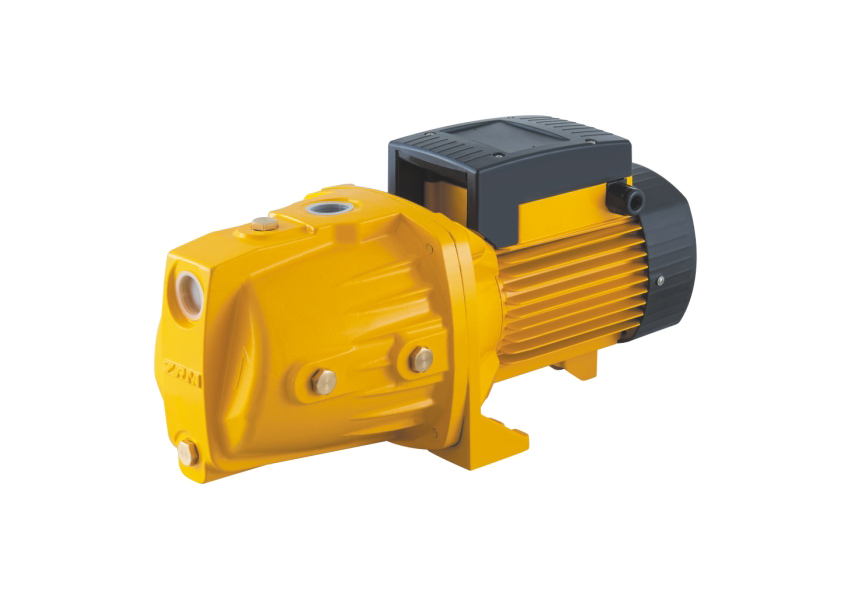

ZJM

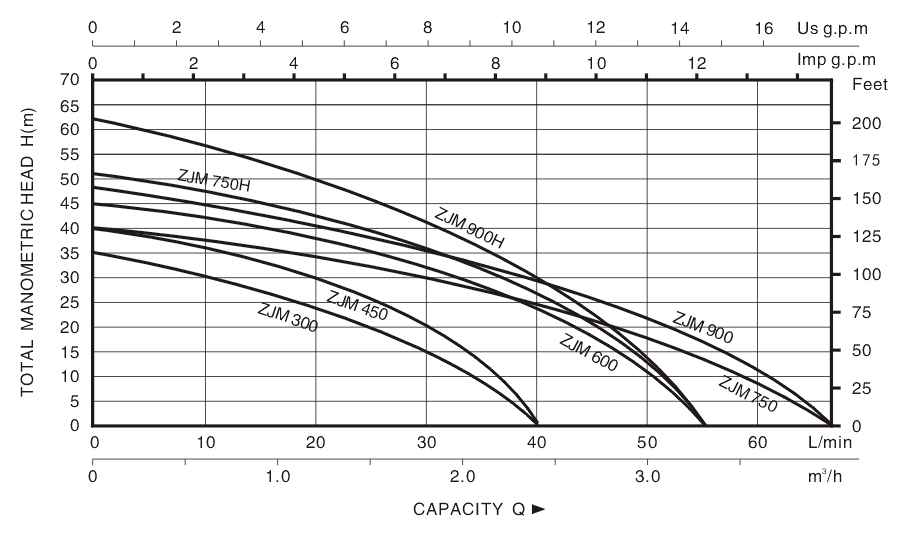

MODEL	POWER		AMPERE	Max.FLOW (L/Min)	Max.HEAD (m)	SUCT.MAX (m)	PIPE	G.W. (Kg)	Q(m3/h)	0	0.6	0.9	1.2	1.5	1.8	2.1	2.4	3.0	3.6
MODEL	Kw	Hp	AMPERE	Max.FLOW (L/Min)	Max.HEAD (m)	SUCT.MAX (m)	PIPE	G.W. (Kg)	Q(L/min)	0	10	15	20	25	30	35	40	50	60
ZJM 300	0.3	0.4	3	40	35	9	1″×1″	9.3	H (m)	35	26	22.5	20	18	16	14	-	-	-
ZJM 450	0.45	0.6	3.2	40	40	9	1″×1″	10.2		41	32	28	25	22	20	18	-	-	-
ZJM 600	0.6	0.8	3.7	55	45	9	1″×1″	14.5		45	37	33.5	31	28.5	26	24	22.5	-	-
ZJM 750	0.75	1.0	4.6	70	40	9	1″×1″	15.8		40	36	34.5	33	31.5	30	29	28	36	24
ZJM 750H	0.75	1.0	4.6	55	51	9	1″×1″	15.8		51	43	40	37	34.5	32	30	27.5	-	-
ZJM 900	0.9	1.2	5.8	70	48	9	1″×1″	16.7		48	44	42.5	41	39.5	38	36	35	33	31
ZJM 900H	0.9	1.2	5.8	55	62	9	1″×1″	16.7		62	53	49	46	43	40	37	35	-	-

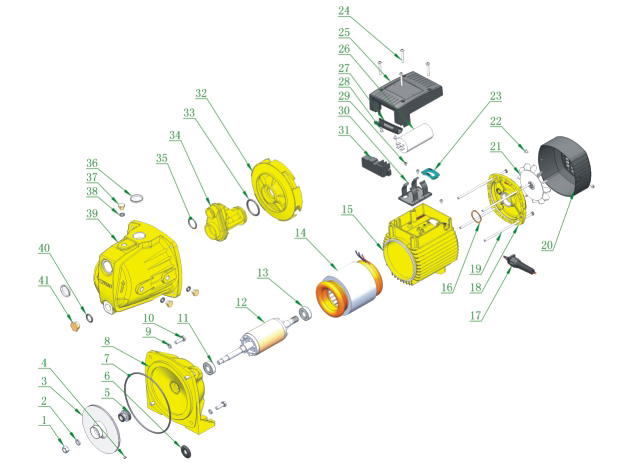

N0.	Description	N0.	Description	N0.	Description
1	Impeller nut	18	Motor end cover	35	O-ring
2	Plain washer	19	Motor tie-rod	36	Dust cap
3	Impeller	20	Fan cover	37	Air screw
4	Key	21	Fan	38	Washer
5	Mechanical seal	22	Screw	39	Pump body
6	Oil seal	23	Cable sheath	40	Washer
7	O-ring	24	Screw	41	Air screw
8	Motor front bracket	25	Terminal box	42
9	Washer	26	Capacitor	43
10	Screw	27	Handle sheath	44
11	Bearing	28	Screw	45
12	Rotor	29	Screw	46
13	Bearing	30	Capacitor holder	47
14	Stator	31	Terminal borad	48
15	Motor case	32	Diffuser	49
16	Adjusting ring	33	O-ring	50
17	Water proof fairlead	34	Venturi tube	51
