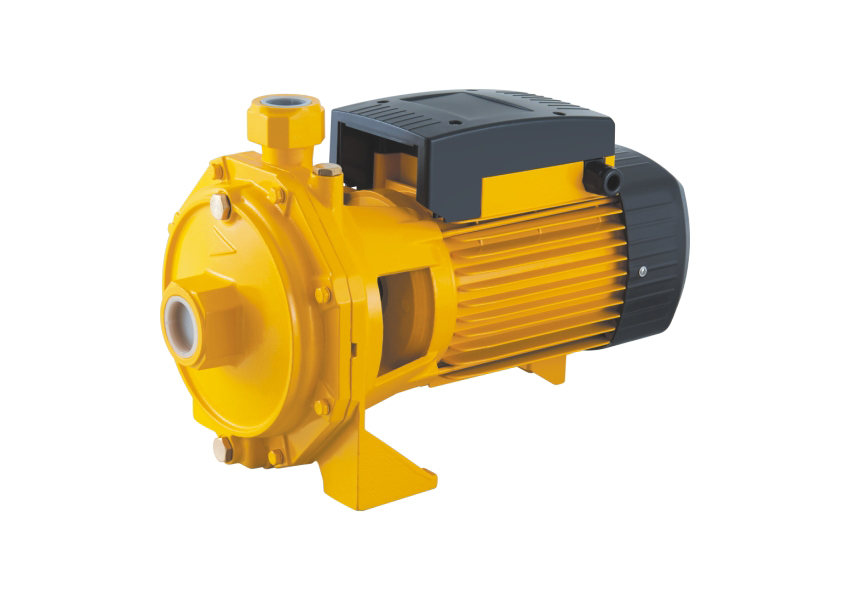

Deep well pump
View More
-Pump
1. Cast iron pump body and support under
special anti-rust treatment
2. Stainless steel impeller/Brass impeller
3. AISI 304 shaft
4. Max.liquid temperature: +40 ℃
5. Max.suction: +8 m
-Motor
1. High efficiency bearing
2. Motor with copper winding
3. Built-in thermal protector for single phase motor
4. Insulation class: F
5. Protection class: IPX4
6. Max.ambient temperature: +40℃

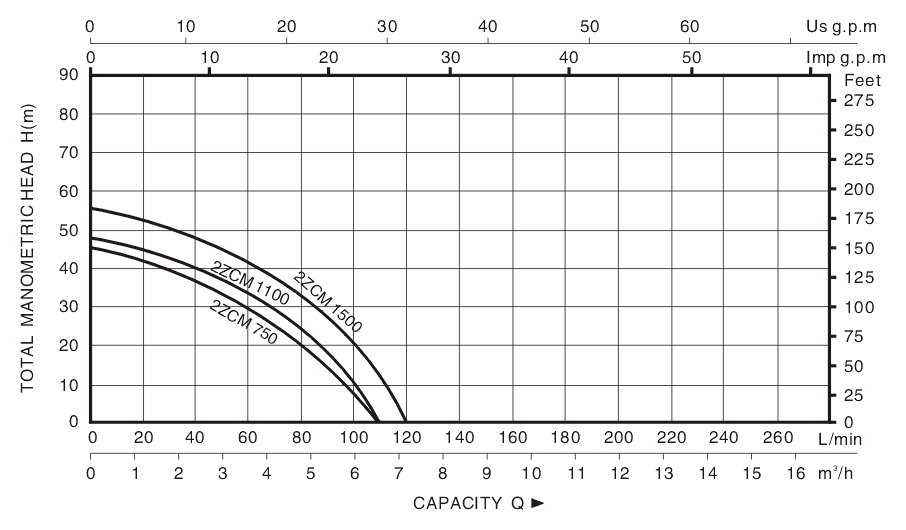

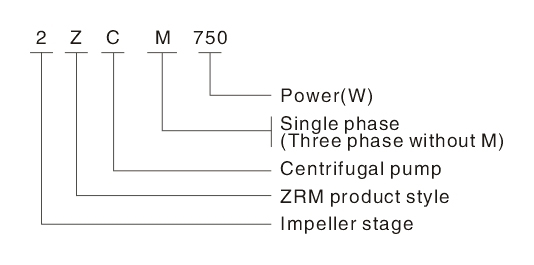

| MODEL | POWER | AMPERE | Max.FLOW (L/Min) | Max.HEAD (m) | SUCT.MAX (m) | PIPE | G.W. (Kg) | Q(m3/h) | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6 | 7.2 | 9.6 | 12 | 15 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Kw | Hp | Q(L/min) | 0 | 20 | 40 | 60 | 80 | 100 | 120 | 160 | 220 | 250 | |||||||
| 2ZCM 750 | 0.75 | 1.0 | 8 | 110 | 45 | 8 | 1.25″×1″ | 19 | H (m) | 45 | 42.5 | 37 | 28.5 | 15 | - | - | - | - | - |
| 2ZCM 1100 | 1.1 | 1.5 | 9 | 110 | 48 | 8 | 1.25″×1″ | 21 | 48 | 46 | 44 | 41.5 | 38 | 33 | 28 | - | - | - | |
| 2ZCM 1500 | 1.5 | 2 | 11 | 120 | 55 | 8 | 1.25″×1″ | 25 | 55 | 53 | 50 | 48 | 44 | 41.5 | 35 | 20 | - | - | |

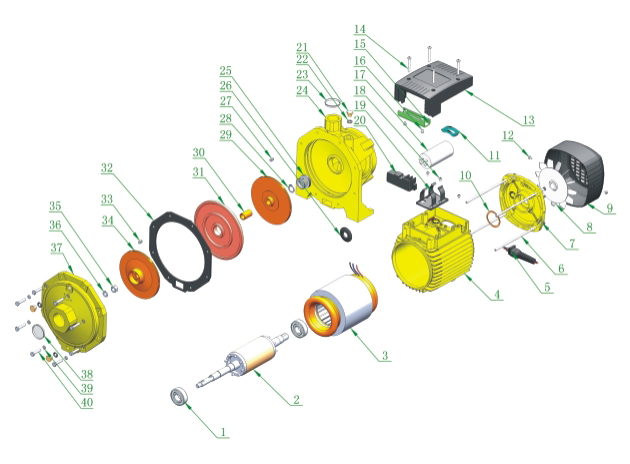

| N0. | Description | N0. | Description | N0. | Description |
|---|---|---|---|---|---|
| 1 | Bearing | 18 | Screw | 35 | Impeller nut |
| 2 | Rotor | 19 | Capacitor holder | 36 | Circlip |
| 3 | Stator | 20 | Terminal board | 37 | Pump body |
| 4 | Motor case | 21 | Air screw | 38 | Dust cap |
| 5 | Water proof fairlead | 22 | Washer | 39 | Bolt |
| 6 | Motor tie-rod | 23 | Dust cap | 40 | Pump body screw |
| 7 | Motor end cover | 24 | Motor front bracket | 41 | |
| 8 | Fan | 25 | Mechanical seal | 42 | |
| 9 | Fan cover | 26 | Oil seal | 43 | |
| 10 | Adjusting ring | 27 | Key | 44 | |
| 11 | Cable sheath | 28 | Plain washer | 45 | |
| 12 | Screw for fan cover | 29 | Impeller | 46 | |
| 13 | Terminal box | 30 | Coupling | 47 | |
| 14 | Screw for terminal box | 31 | Impeller sepatator | 48 | |
| 15 | Terminal board | 32 | Gasket | 49 | |
| 16 | Screw | 33 | Key | 50 | |
| 17 | Capacitor | 34 | Impeller | 51 |
