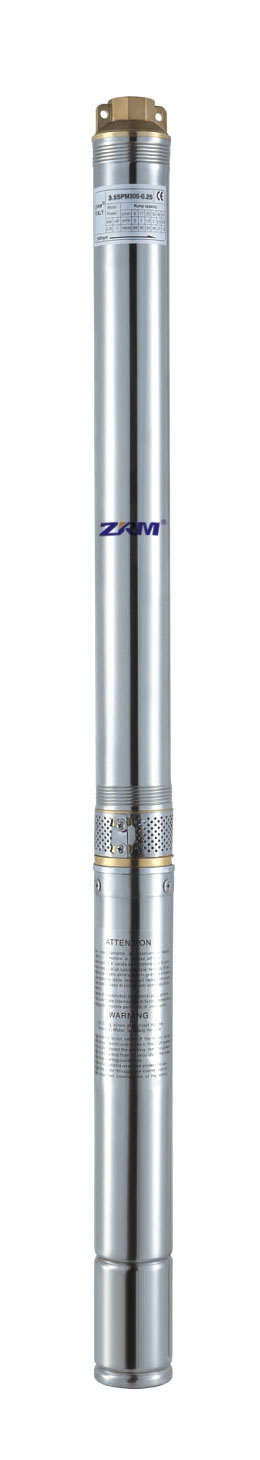

Deep well pump
View More
-Pump/Motor
Qmax:5.6(m3/h)
Insulation class:B
Protection grade:IP 68
Maximum diameter:φ83mm
Highest temperature of liquid:35℃
Options of different materials sre available.

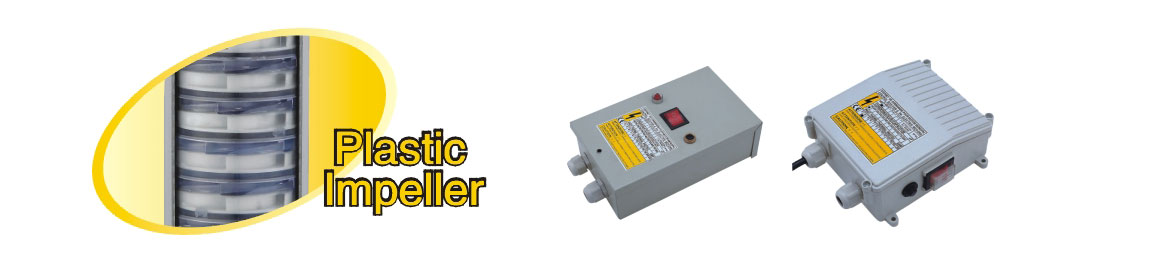

Type single phase 220-240V~Hz50 |

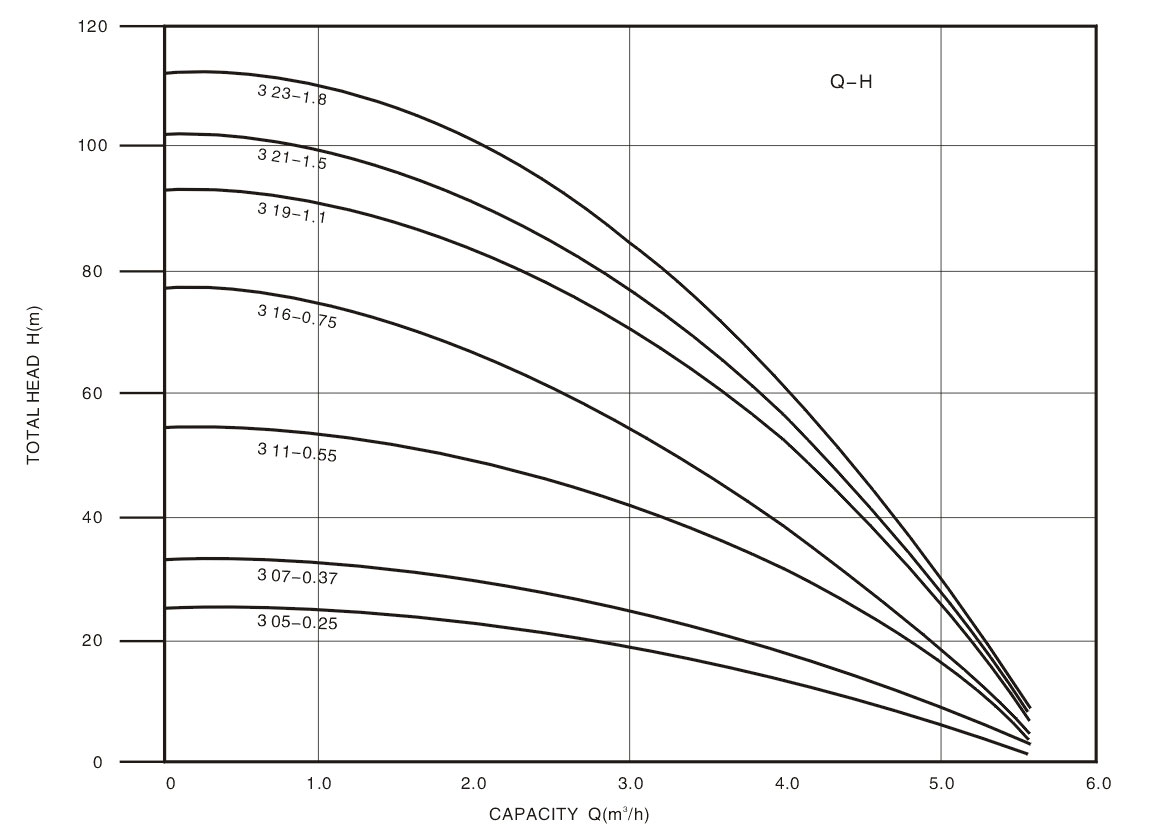

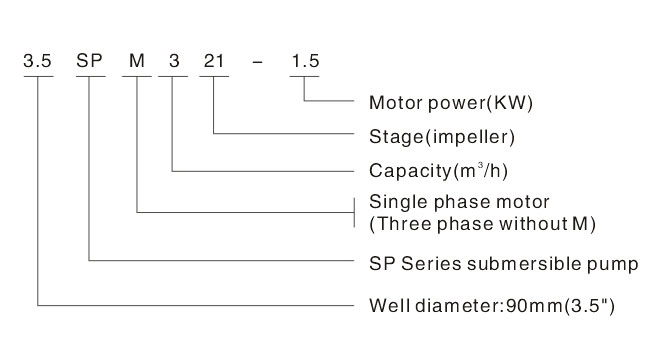

Motor power | Capacity and head | Length | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
L/min | 0 | 8 | 17 | 25 | 33 | 42 | 50 | 58 | 67 | 75 | 93 | ||||
KW | HP | m3/h | 0 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5.6 | mm | |
3.5SPM3 05-0.25 | 0.25 | 0.33 |
Head (m) |
26 | 25 | 25 | 24 | 23 | 22 | 20 | 17 | 15 | 11 | 2 | 657 |
3.5SPM3 07-0.37 | 0.37 | 0.5 | 35 | 34 | 33 | 32 | 30 | 28 | 26 | 23 | 18 | 14 | 3 | 734 | |
3.5SPM3 11-0.55 | 0.55 | 0.75 | 55 | 54 | 53 | 52 | 49 | 46 | 42 | 38 | 32 | 25 | 4 | 880 | |
3.5SPM3 16-0.75 | 0.75 | 1 | 78 | 76 | 75 | 71 | 66 | 62 | 55 | 48 | 39 | 30 | 5 | 1083 | |
3.5SPM3 19-1.1 | 1.1 | 1.5 | 93 | 92 | 91 | 89 | 84 | 79 | 71 | 63 | 53 | 42 | 6 | 1216 | |
3.5SPM3 21-1.5 | 1.5 | 2 | 102 | 101 | 100 | 96 | 91 | 85 | 77 | 68 | 56 | 43 | 7 | 1306 | |
3.5SPM3 23-1.8 | 1.8 | 2.4 | 112 | 110 | 109 | 105 | 100 | 93 | 84 | 74 | 61 | 47 | 8 | 1388 |
N0. | Description | N0. | Description | N0. | Description | N0. | Description |
---|---|---|---|---|---|---|---|
1 | Clamping spring |
14 | O-ring |
27 | Suction support |
40 | Bearing bush |
2 | End cover |
15 | Oil chamber |
28 | Strainer |
41 | Screw |
3 | Rubber cup |
16 | O-ring | 29 | Screw |
42 | Screw |
4 | Motor body |
17 | Screw |
30 | Screw |
43 | Diffuser |
5 | Screw |
18 | Sand proof sheath |
31 | Coupling |
44 | Guide bush |
6 | Washer |
19 | Washer |
32 | Bearing bush |
45 | Valve seat |
7 | Bearing seat |
20 | Sand proof cap |
33 | Intermediate support |
46 | Check valve |
8 | Stator |
21 | Screw |
34 | Guide bus |
47 | Screw |
9 | Ball bearing |
22 | Oil chamber cover |
35 | Shaft |
48 | Holder pipe |
10 | Rotor |
23 | Cable |
36 | Shaft ring |
49 | Cable cover |
11 | Ball bearing |
24 | Stud |
37 | Diffuser cover |
50 | Pump bod |
12 | Gasket |
25 | washer |
38 | Impeller |
51 | Outlet |
13 | Thrust bearing |
26 | Nut |
39 | Diffuser |
52 | Control box |
