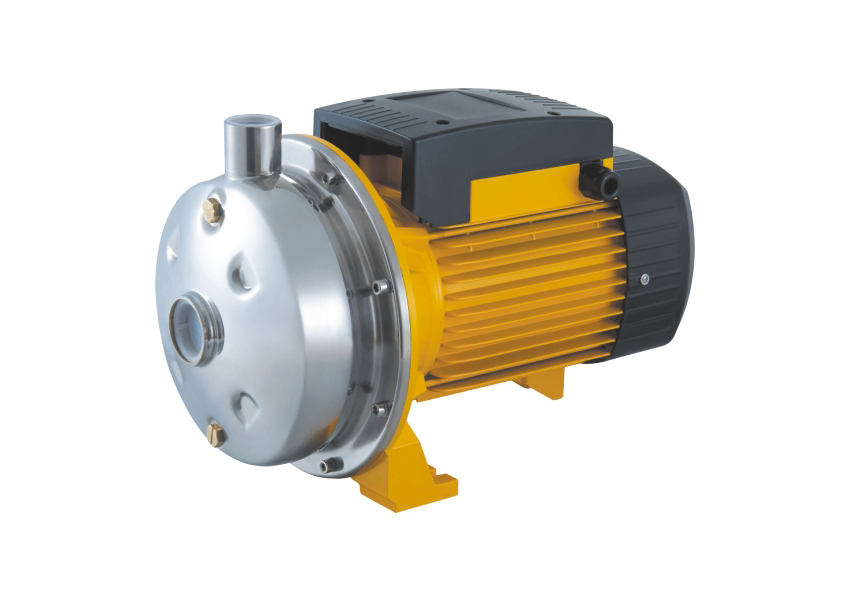

Deep well pump
View More
-Pump
1. Stainless steel pump body
2. Stainless steel impeller/Brass impeller
3. AISI 304 shaft
4. Max.liquid temperature: +40 ℃
5. Max.suction: +8 m
-Motor
1. High efficiency bearing
2. Motor with copper winding
3. Built-in thermal protector for single phase motor
4. Insulation class: F
5. Protection class: IPX4
6. Max.ambient temperature: +40℃

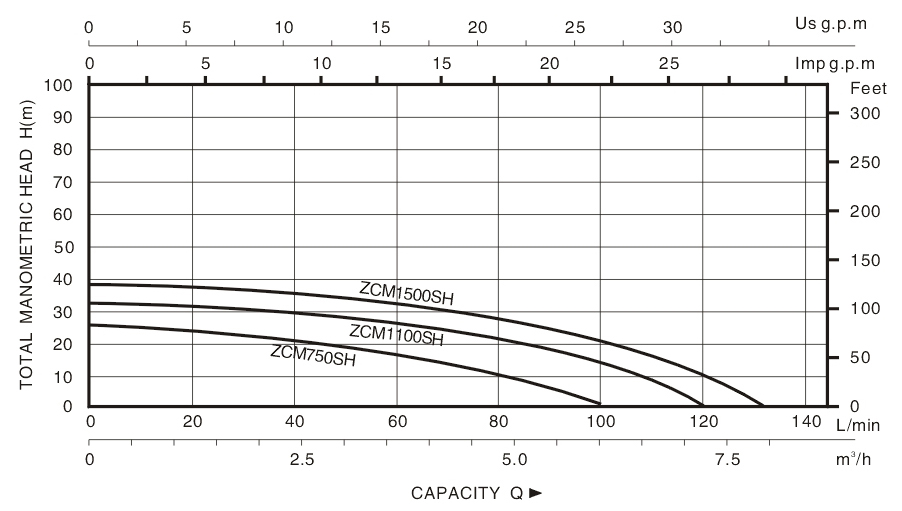

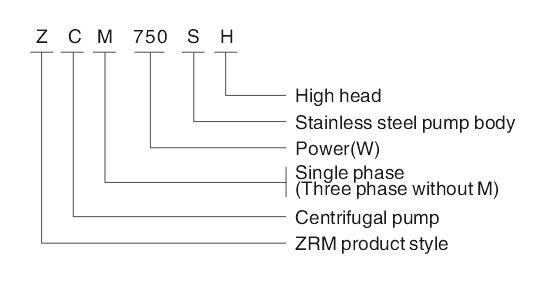

| MODEL | POWER | AMPERE | Max.FLOW (L/Min) | Max.HEAD (m) | SUCT.MAX (m) | PIPE | G.W. (Kg) | Q(m3/h) | 0 | 0.6 | 1.2 | 2.4 | 3.6 | 4.8 | 6.0 | 7.2 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Kw | Hp | Q(L/min) | 0 | 10 | 20 | 40 | 60 | 80 | 100 | 120 | |||||||
| ZCM 750SH | 0.75 | 1 | 5.2 | 100 | 26 | 8 | 1.25″×1″ | 14.5 | H (m) | 27 | 25 | 20 | 14 | 8 | 2 | - | - |
| ZCM 1100SH | 1.1 | 1.5 | 7 | 120 | 32 | 8 | 1.5″×1″ | 25 | 34 | 32 | 30 | 24 | 19 | 12 | 7 | - | |
| ZCM 1500SH | 1.5 | 2 | 9 | 130 | 38 | 8 | 1.5″×1″ | 26 | 38 | 36 | 32 | 28 | 23 | 17 | 10 | 4 | |

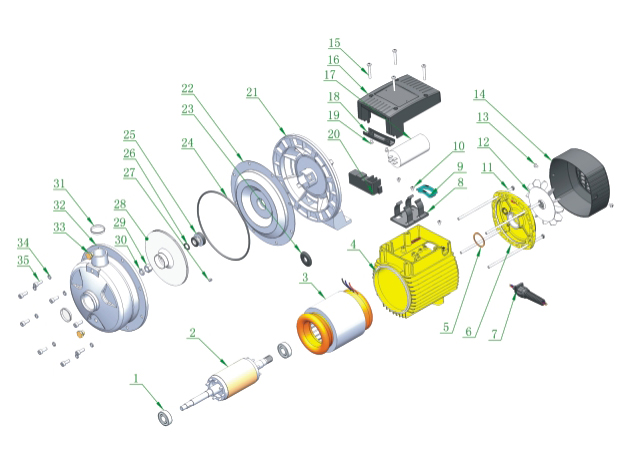

| N0. | Description | N0. | Description | N0. | Description |
|---|---|---|---|---|---|
| 1 | Ball bearing | 18 | Handle cover plate | 35 | Inside hexagonal bolt |
| 2 | Shaft and rotor | 19 | Screw | 36 | |
| 3 | Stator | 20 | Wire terminal | 37 | |
| 4 | Motor case | 21 | Motor front bracket | 38 | |
| 5 | Adjusting ring/td> | 22 | Mechanical seal disc holder | 39 | |
| 6 | Motor end cover | 23 | Splash guard | 40 | |
| 7 | Water proof fairlead | 24 | Pump body O-ring | 41 | |
| 8 | Capacitor holder | 25 | Mechanical seal | 42 | |
| 9 | Cable sheath | 26 | Spring | 43 | |
| 10 | Screw for cable pressure | 27 | Key | 44 | |
| 11 | Moter tie-rod | 28 | Impeller | 45 | |
| 12 | Fan | 29 | Hexagonal nut | 46 | |
| 13 | Fan cover screw | 30 | Impeller nut | 47 | |
| 14 | Fan cover | 31 | Dust cap | 48 | |
| 15 | Terminal box screw | 32 | Pump body | 49 | |
| 16 | Terminal box | 33 | Gauge plag | 50 | |
| 17 | Capacitor | 34 | Washer | 51 |
