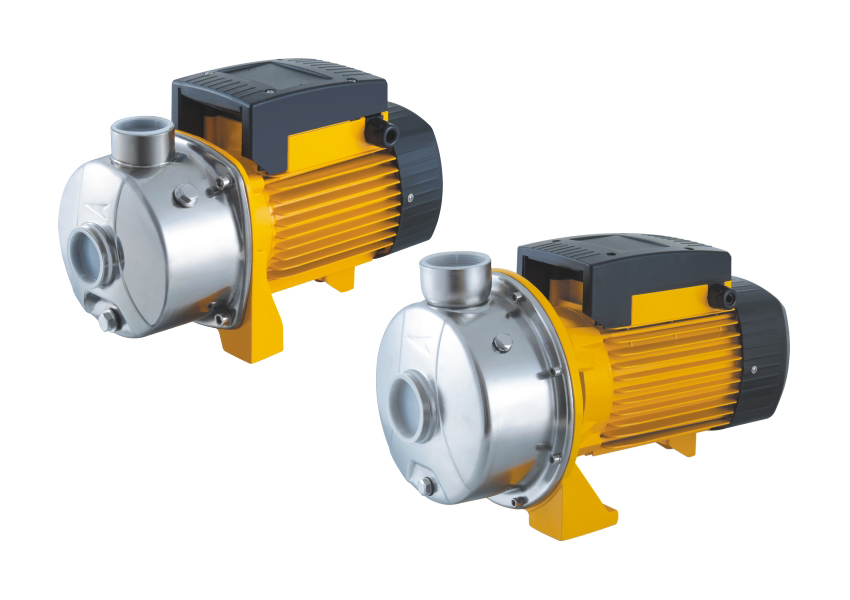

Centrifugal pump

ZCMSL

  • -Pump

  • 1. Stainless steel pump body

  • 2. Stainless steel impeller/Brass impeller

  • 3. AISI 304 shaft

  • 4. Max.liquid temperature: +40 ℃

  • 5. Max.suction: +8 m

  • -Motor

  • 1. High efficiency bearing

  • 2. Motor with copper winding

  • 3. Built-in thermal protector for single phase motor

  • 4. Insulation class: F

  • 5. Protection class: IPX4

  • 6. Max.ambient temperature: +40℃

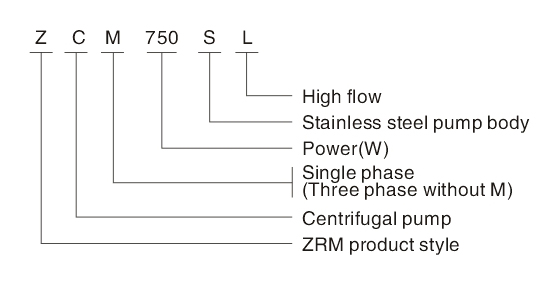

MODELPOWERAMPEREMax.FLOW
(L/Min)
Max.HEAD
(m)
SUCT.MAX
(m)
PIPEG.W.
(Kg)

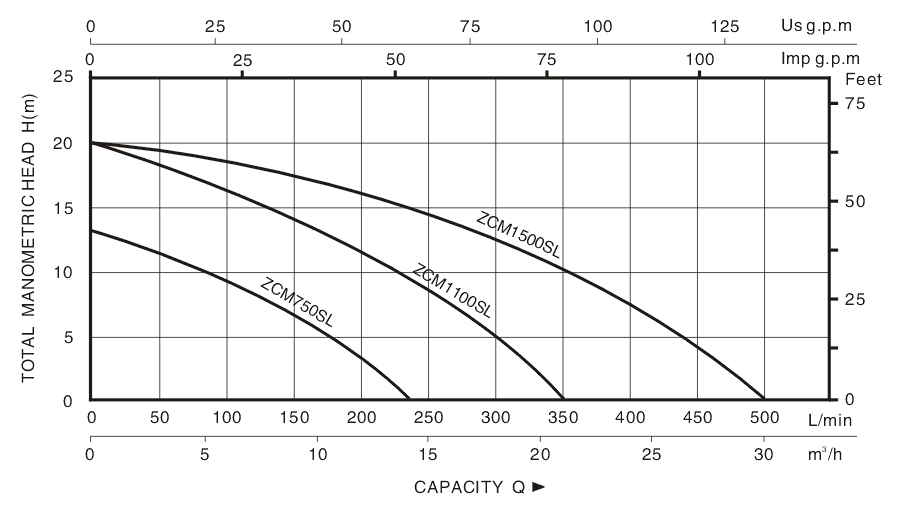

Q(m3/h)06121824303642
KwHpQ(L/min)0100200300400500600700
ZCM 750SL0.7515.22301381.5″×1.5″14H
(m)
13106-----
ZCM 1100SL1.11.573502082″×2″242018154----
ZCM 1500SL1.528.55002082″×2″2520171484---

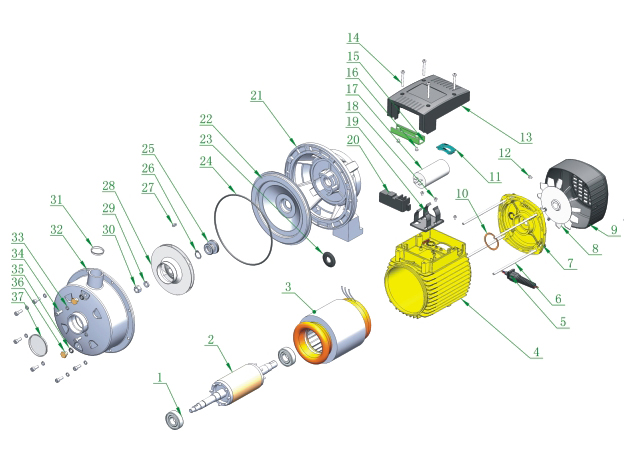

N0.DescriptionN0.DescriptionN0.Description
1Ball bearing18Screw35Washer
2Shaft and rotor19Capacitor36Air screw
3Stator20Wire terminal37Dust cap
4Motor case21Motor front bracket38
5Water proof fairlead22Mechanical seal disc holder39
6Motor tie-rod23Splash guard40
7Motor end cover24Pump body O-ring41
8Fan25Mechanical seal42
9Fan cover26Spring43
10O-ring27Key44
11Cable sheath28Impeller45
12Fan cover screw29Hexagonal nut46
13Terminal box30Impeller nut47
14Terminal box screw31Dust cap48
15Handle vover plate32Pump body49
16Screw33Washer50
17Capacitor34Pump body screw51
