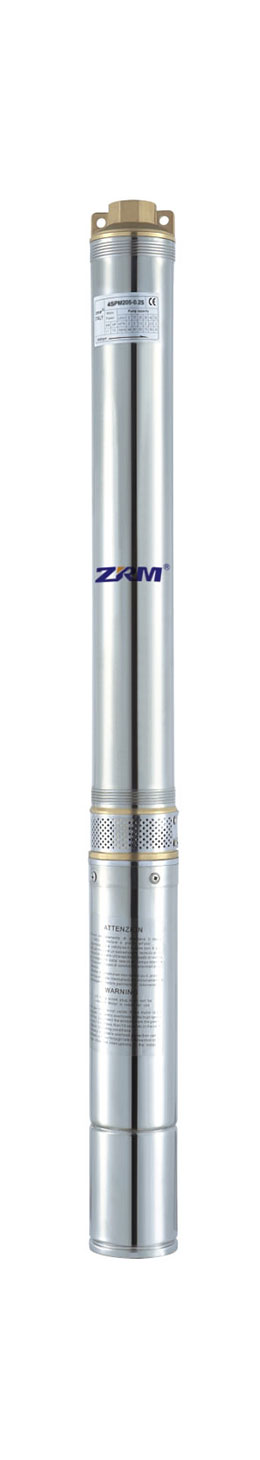

Deep well pump
View More
-Pump/Motor
Qmax:4.5(m3/h)
Insulation class:B
Protection grade:IP 68
Maximum diameter:φ98mm
Highest temperature of liquid:35℃
Options of different materials sre available.

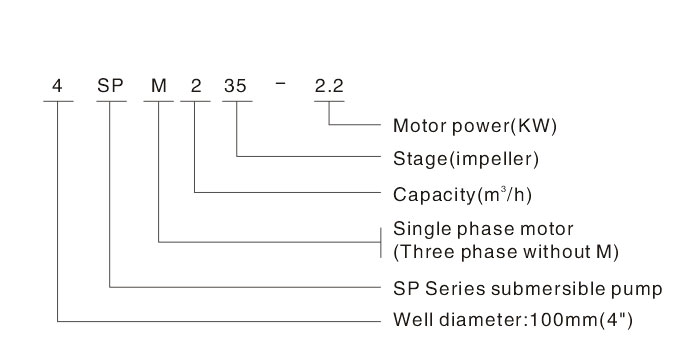

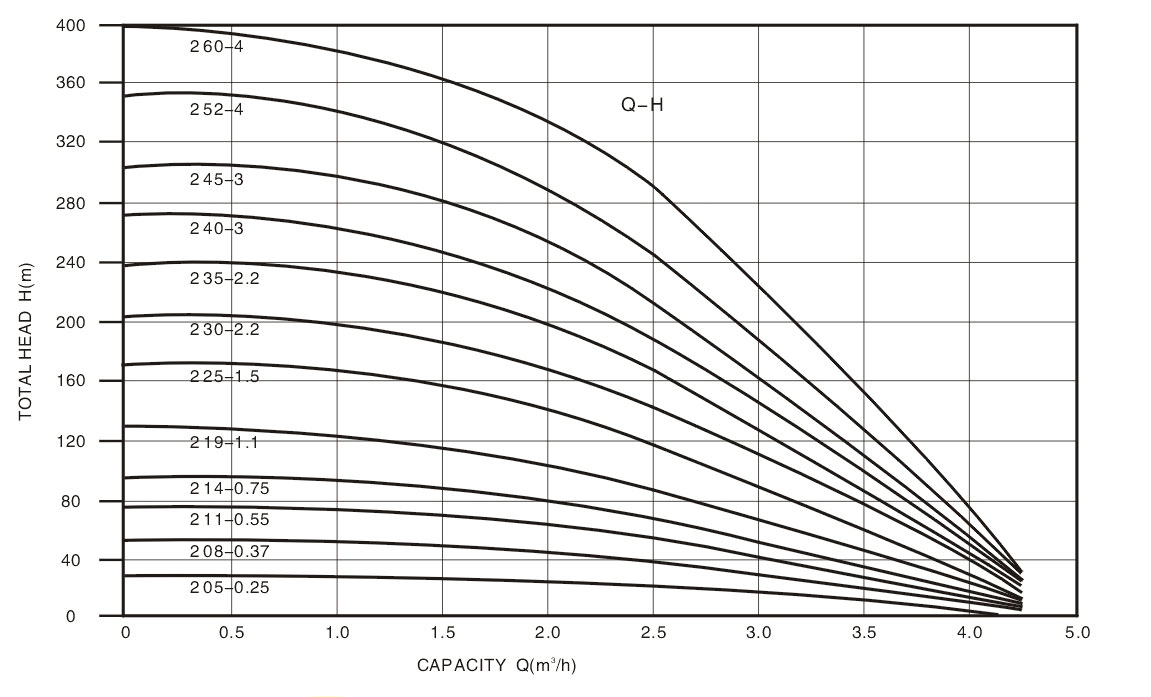

Type | Motor power | Capacity and head | Length | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
single phase 220-240V~Hz50 |
Three phase 380~415v~Hz50 |
L/min | 0 | 17 | 25 | 33 | 42 | 50 | 75 | |||
KW | HP | m3/h | 0 | 1 | 1.5 | 2 | 2.5 | 3 | 4.5 | mm | ||
4SPM2 05-0.25 | 4SPM2 05-0.25 | 0.25 | 0.33 |
Head (m) |
34 | 33 | 31 | 28 | 24 | 18 | 5 | 668 |
4SPM2 08-0.37 | 4SPM2 08-0.37 | 0.37 | 0.5 | 54 | 53 | 50 | 45 | 38 | 29 | 6 | 757 | |
4SPM2 11-0.55 | 4SPM2 11-0.55 | 0.55 | 0.75 | 74 | 73 | 69 | 62 | 53 | 40 | 8 | 840 | |
4SPM2 14-0.75 | 4SPM2 14-0.75 | 0.75 | 1 | 95 | 93 | 87 | 78 | 67 | 50 | 10 | 979 | |
4SPM2 19-1.1 | 4SPM2 19-1.1 | 1.1 | 1.5 | 128 | 126 | 119 | 106 | 91 | 68 | 12 | 1202 | |
4SPM2 25-1.5 | 4SPM2 25-1.5 | 1.5 | 2 | 169 | 166 | 156 | 140 | 120 | 90 | 14 | 1380 | |
4SPM2 30-2.2 | 4SPM2 30-2.2 | 2.2 | 3 | 203 | 199 | 187 | 168 | 144 | 108 | 16 | 1596 | |
4SPM2 35-2.2 | 4SPM2 35-2.2 | 2.2 | 3 | 237 | 232 | 218 | 196 | 168 | 126 | 18 | 1717 | |
- | 4SPM2 40-3 | 3 | 4 | 270 | 266 | 250 | 224 | 192 | 144 | 20 | 1917 | |
- | 4SPM2 45-3 | 3 | 4 | 304 | 299 | 281 | 252 | 216 | 162 | 21 | 2082 | |
- | 4SPM2 52-4 | 4 | 5.5 | 352 | 345 | 324 | 291 | 250 | 187 | 22 | 2328 | |
- | 4SPM2 60-4 | 4 | 5.5 | 406 | 398 | 374 | 336 | 288 | 216 | 24 | 2531 |
N0. | Description | N0. | Description | N0. | Description | N0. | Description |
---|---|---|---|---|---|---|---|
1 | Clamping spring |
14 | O-ring |
27 | Suction support |
40 | Bearing bush |
2 | End cover |
15 | Oil chamber |
28 | Strainer |
41 | Screw |
3 | Rubber cup |
16 | O-ring | 29 | Screw |
42 | Screw |
4 | Motor body |
17 | Screw |
30 | Screw |
43 | Diffuser |
5 | Screw |
18 | Sand proof sheath |
31 | Coupling |
44 | Guide bush |
6 | Washer |
19 | Washer |
32 | Bearing bush |
45 | Valve seat |
7 | Bearing seat |
20 | Sand proof cap |
33 | Intermediate support |
46 | Check valve |
8 | Stator |
21 | Screw |
34 | Guide bus |
47 | Screw |
9 | Ball bearing |
22 | Oil chamber cover |
35 | Shaft |
48 | Holder pipe |
10 | Rotor |
23 | Cable |
36 | Shaft ring |
49 | Cable cover |
11 | Ball bearing |
24 | Stud |
37 | Diffuser cover |
50 | Pump bod |
12 | Gasket |
25 | washer |
38 | Impeller |
51 | Outlet |
13 | Thrust bearing |
26 | Nut |
39 | Diffuser |
52 | Control box |
