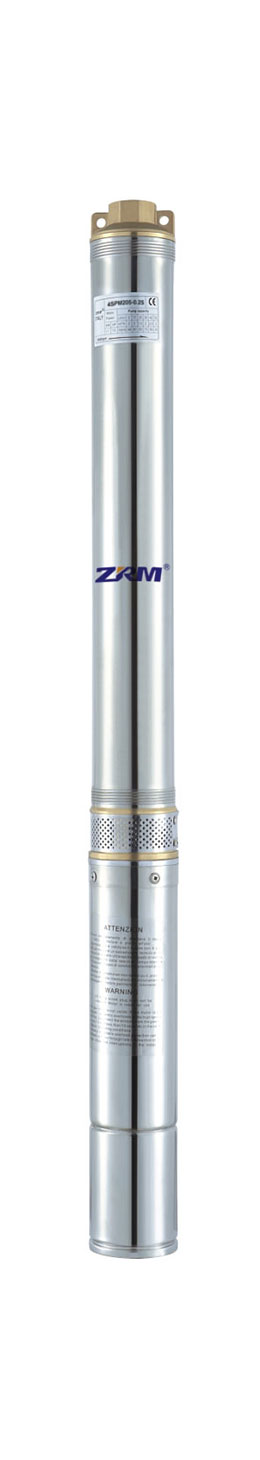

Deep well pump
View More
-Pump/Motor
Qmax:5.8(m3/h)
Insulation class:B
Protection grade:IP 68
Maximum diameter:φ98mm
Highest temperature of liquid:35℃
Options of different materials sre available.
Type | Motor power | Capacity and head | Length | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
single phase 220-240V~Hz50 |
Three phase 380~415v~Hz50 |

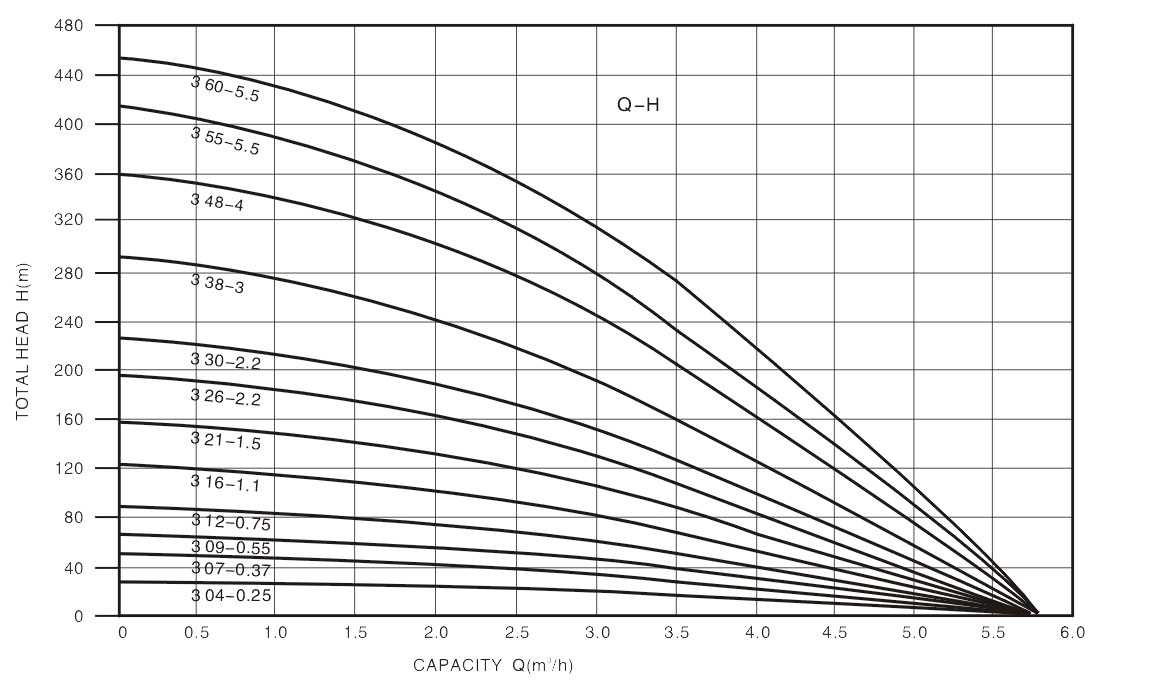

L/min | 0 | 33 | 42 | 50 | 58 | 67 | 83 | 97 | |||
KW | HP | m3/h | 0 | 2 | 2.5 | 3 | 3.5 | 4 | 5 | 5.8 | mm | ||

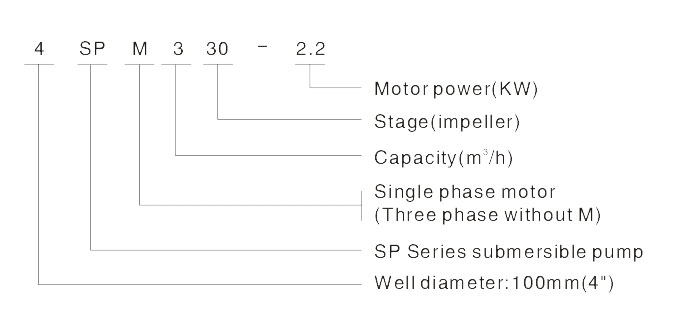

4SPM3 04-0.25 | 4SPM3 04-0.25 | 0.25 | 0.33 |
Head (m) |
30 | 25 | 23 | 20 | 18 | 13 | 4 | 2 | 611 |
4SPM3 07-0.37 | 4SPM3 07-0.37 | 0.37 | 0.5 | 53 | 44 | 40 | 35 | 32 | 22 | 6 | 2 | 746 | |
4SPM3 09-0.55 | 4SPM3 09-0.55 | 0.55 | 0.75 | 68 | 56 | 51 | 45 | 41 | 29 | 8 | 3 | 810 | |
4SPM3 12-0.75 | 4SPM3 12-0.75 | 0.75 | 1 | 90 | 75 | 68 | 60 | 55 | 38 | 10 | 5 | 933 | |
4SPM3 16-1.1 | 4SPM3 16-1.1 | 1.1 | 1.5 | 120 | 100 | 91 | 80 | 73 | 51 | 12 | 7 | 1081 | |
4SPM3 21-1.5 | 4SPM3 21-1.5 | 1.5 | 2 | 158 | 131 | 120 | 105 | 96 | 67 | 14 | 7 | 1263 | |
4SPM3 26-2.2 | 4SPM3 26-2.2 | 2.2 | 3 | 195 | 163 | 148 | 130 | 119 | 83 | 16 | 8 | 1594 | |
4SPM3 30-2.2 | 4SPM3 30-2.2 | 2.2 | 3 | 225 | 188 | 171 | 150 | 137 | 96 | 18 | 11 | 1712 | |
- | 4SPM3 38-3 | 3 | 4 | 285 | 238 | 217 | 190 | 173 | 122 | 20 | 13 | 1983 | |
- | 4SPM3 48-4 | 4 | 5.5 | 360 | 300 | 274 | 240 | 219 | 154 | 21 | 14 | 2378 | |
- | 4SPM3 55-5.5 | 5.5 | 7.5 | 413 | 344 | 314 | 275 | 251 | 176 | 22 | 15 | 2693 | |
- | 4SPM3 60-5.5 | 5.5 | 7.5 | 450 | 375 | 342 | 300 | 274 | 192 | 23 | 16 | 2879 |
N0. | Description | N0. | Description | N0. | Description | N0. | Description |
---|---|---|---|---|---|---|---|
1 | Clamping spring |
14 | O-ring |
27 | Suction support |
40 | Bearing bush |
2 | End cover |
15 | Oil chamber |
28 | Strainer |
41 | Screw |
3 | Rubber cup |
16 | O-ring | 29 | Screw |
42 | Screw |
4 | Motor body |
17 | Screw |
30 | Screw |
43 | Diffuser |
5 | Screw |
18 | Sand proof sheath |
31 | Coupling |
44 | Guide bush |
6 | Washer |
19 | Washer |
32 | Bearing bush |
45 | Valve seat |
7 | Bearing seat |
20 | Sand proof cap |
33 | Intermediate support |
46 | Check valve |
8 | Stator |
21 | Screw |
34 | Guide bus |
47 | Screw |
9 | Ball bearing |
22 | Oil chamber cover |
35 | Shaft |
48 | Holder pipe |
10 | Rotor |
23 | Cable |
36 | Shaft ring |
49 | Cable cover |
11 | Ball bearing |
24 | Stud |
37 | Diffuser cover |
50 | Pump bod |
12 | Gasket |
25 | washer |
38 | Impeller |
51 | Outlet |
13 | Thrust bearing |
26 | Nut |
39 | Diffuser |

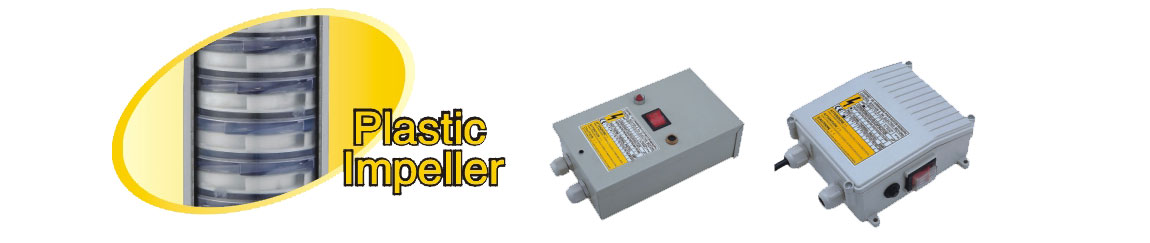

52 | Control box |
