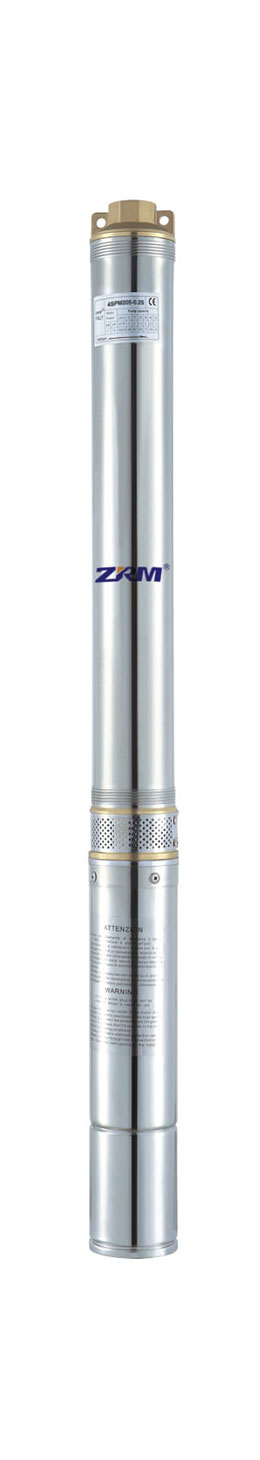

4SPM4

rpm:2850

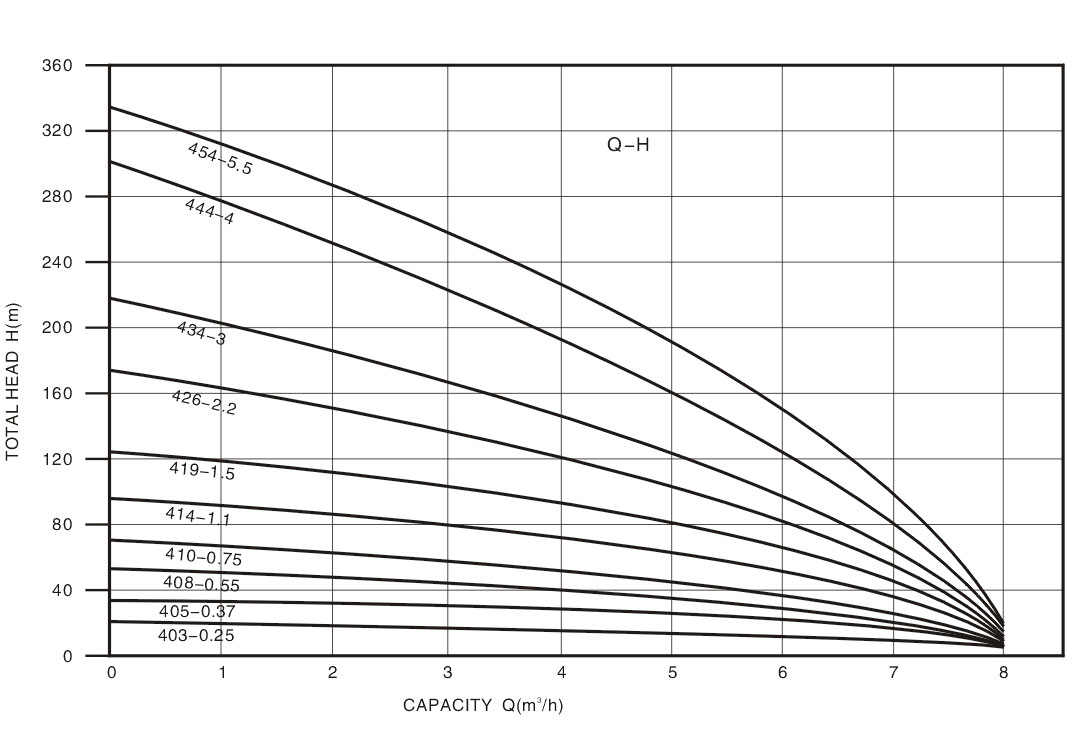

Type		Motor power		Capacity and head												Length
single phase 220-240V~Hz50	Three phase 380~415v~Hz50	Motor power		L/min	0	17	33	50	58	67	75	83	100	117	133	Length
single phase 220-240V~Hz50	Three phase 380~415v~Hz50	KW	HP	m³/h	0	1	2	3	3.5	4	4.5	5	6	7	8	mm
4SPM4 03-0.25	4SPM4 03-0.25	0.25	0.33	Head (m)	20	19	18	17	15	15	14	13	10	6	1	631
4SPM4 05-0.37	4SPM4 05-0.37	0.37	0.5		33	33	31	29	27	26	25	21	17	11	1	705
4SPM4 08-0.55	4SPM4 08-0.55	0.55	0.75		52	52	50	45	44	40	38	34	25	17	1	811
4SPM4 10-0.75	4SPM4 10-0.75	0.75	1		65	65	61	56	54	51	47	43	33	20	1	900
4SPM4 14-1.1	4SPM4 14-1.1	1.1	1.5		93	92	84	78	76	71	66	60	45	28	3	1087
4SPM4 19-1.5	4SPM4 19-1.5	1.5	2		126	126	120	110	105	99	93	84	66	43	5	1277
4SPM4 26-2.2	4SPM4 26-2.2	2.2	3		170	170	160	147	139	132	121	111	85	53	6	1610
-	4SPM4 34-3	3	4		224	224	210	193	184	179	161	147	114	73	8	1870
-	4SPM4 44-4	4	5.5		196	297	281	262	251	239	222	205	163	110	10	2354
-	4SPM4 54-5.5	5.5	7.5		338	328	305	282	270	247	229	211	162	120	12	2818

N0.	Description	N0.	Description	N0.	Description	N0.	Description
1	Clamping spring	14	O-ring	27	Suction support	40	Bearing bush
2	End cover	15	Oil chamber	28	Strainer	41	Screw
3	Rubber cup	16	O-ring	29	Screw	42	Screw
4	Motor body	17	Screw	30	Screw	43	Diffuser
5	Screw	18	Sand proof sheath	31	Coupling	44	Guide bush
6	Washer	19	Washer	32	Bearing bush	45	Valve seat
7	Bearing seat	20	Sand proof cap	33	Intermediate support	46	Check valve
8	Stator	21	Screw	34	Guide bus	47	Screw
9	Ball bearing	22	Oil chamber cover	35	Shaft	48	Holder pipe
10	Rotor	23	Cable	36	Shaft ring	49	Cable cover
11	Ball bearing	24	Stud	37	Diffuser cover	50	Pump bod
12	Gasket	25	washer	38	Impeller	51	Outlet
13	Thrust bearing	26	Nut	39	Diffuser	52	Control box
